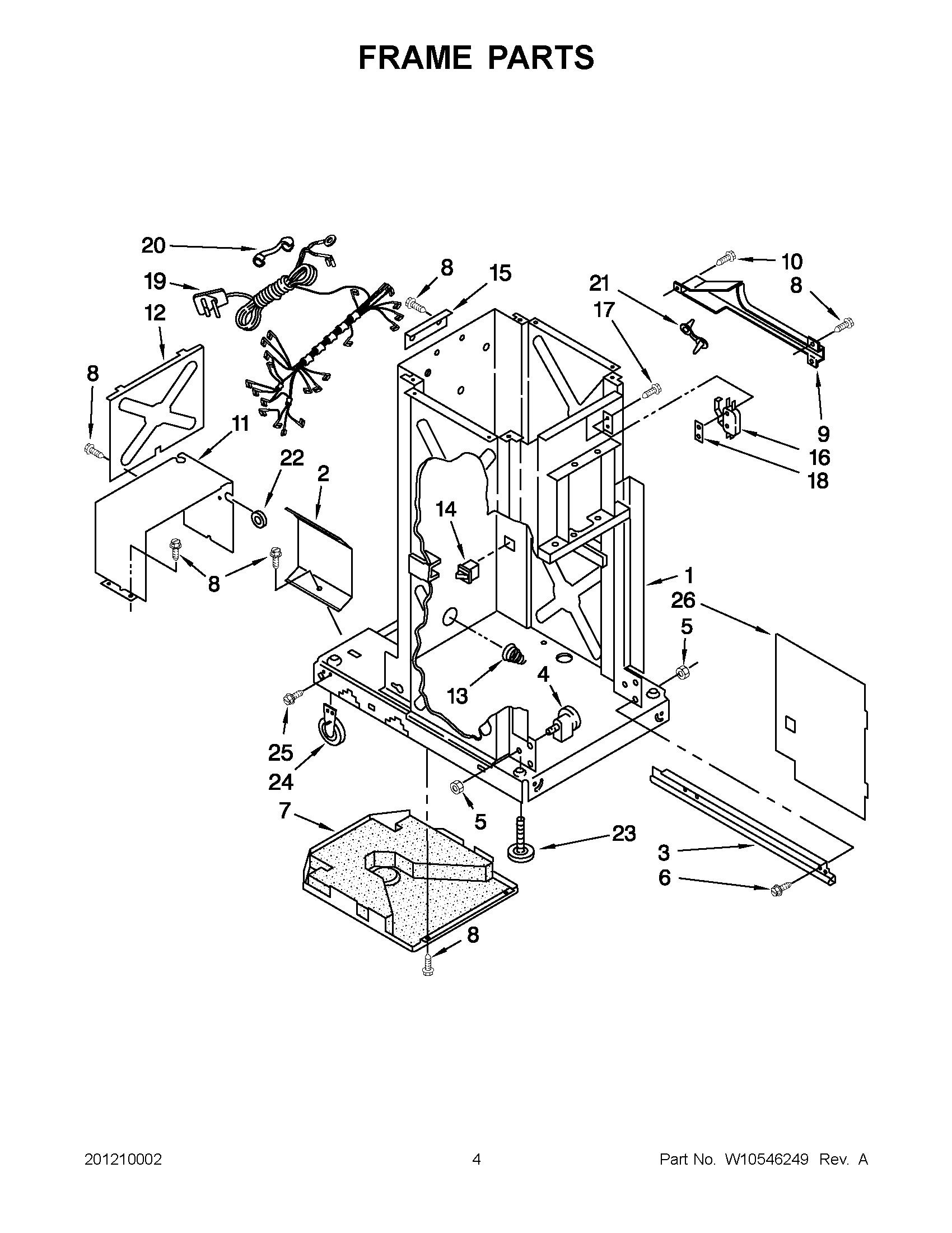

TU950QPXS2 02 – FRAME PARTSadmin2025-04-26T13:00:01+00:00TU950QPXS2 02 – FRAME PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)29870867 Whirlpool Shield3WP9870975 Whirlpool Compactor Slide3SLIDE4882688 Whirlpool Compactor Bearing5WP776356 Whirlpool Compactor Nut6WP486754 Whirlpool Compactor Screw7WP780437 Whirlpool Compactor Bottom Pan8WP489478 Whirlpool Refrigerator Screw94149659 Whirlpool Shield Assembly10WPW10139210 Whirlpool Screw11780434 Whirlpool Motor Cover12Plate, Motor Cover13WP777180 Whirlpool Compactor Spring14WP4387911 Whirlpool Refrigerator Switch15Angle, Top Bracket16WP777811 Whirlpool Compactor Directional Switch17777849 Whirlpool Compactor Screw18Plate, Nut19W10279458 Whirlpool Wire Harness20Bushing, Cord21Clamp, Wire22Grommet, Motor Cover23WPW10001130 Whirlpool Leveling Leg24W11023674 Whirlpool Compactor Leveling Wheel25WP3351614 Whirlpool Screw26WP9870444 Whirlpool Compactor Inner Panel
