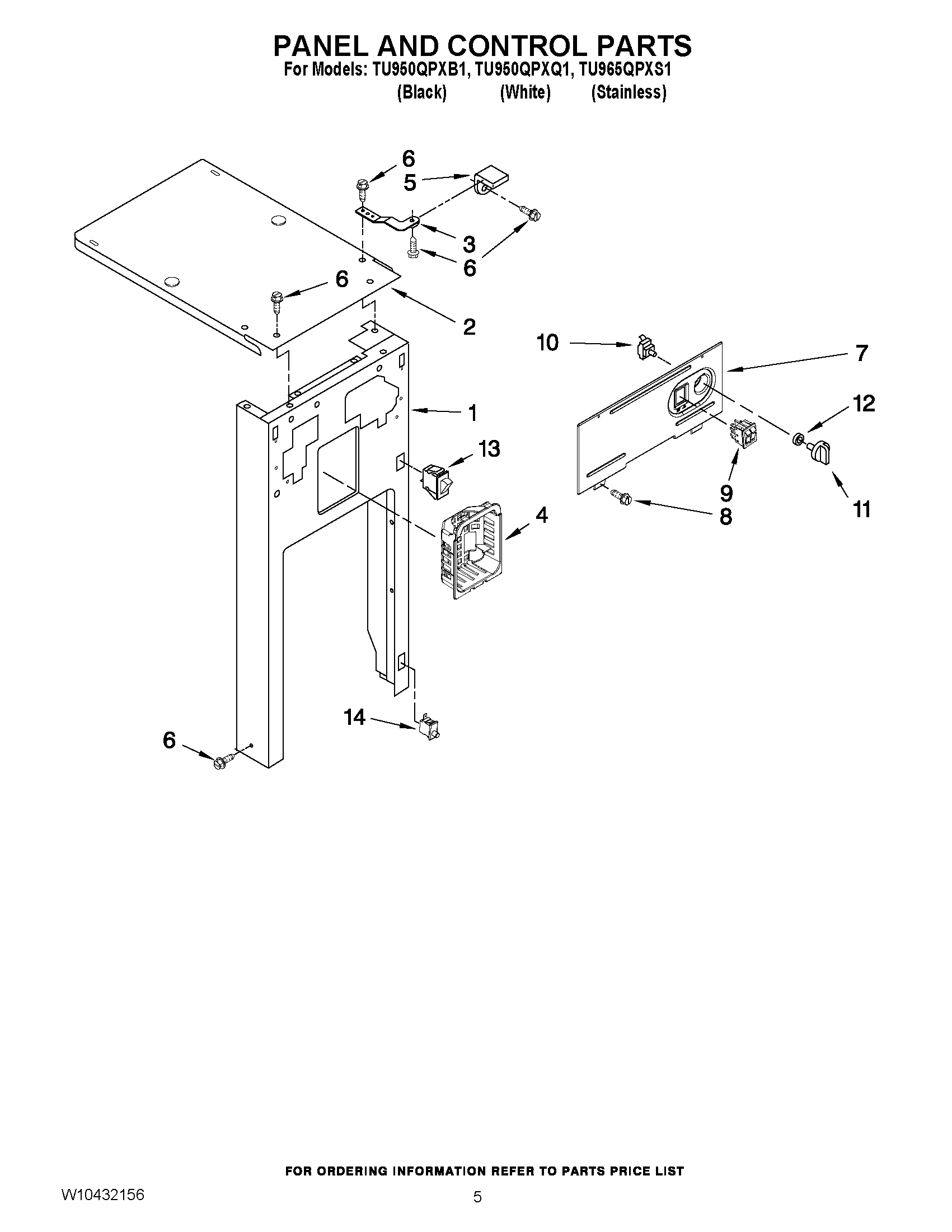

TU965QPXS1 05 – PANEL AND CONTROL PARTS

TU965QPXS1 05 – PANEL AND CONTROL PARTS

Written by

in

TU965QPXS1 05 – PANEL AND CONTROL PARTS

Products

PositionProduct
1W10242567 Whirlpool Compactor Panel
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
49871066 Whirlpool Compactor Compartment
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489478 Whirlpool Refrigerator Screw
7ESCUTCHEON, CONTROL (BLACK)
8Screw
9CABINET (NOT A SERVICEABLE PART)
10WP9871971 Whirlpool Compactor Off Switch
11WP9871920 Whirlpool Compactor Switch Knob
12WP777383 Whirlpool Compactor Nut
139871829 Whirlpool Trash Compactor Door Switch
14WPW10242556 Whirlpool Compactor Off Switch
