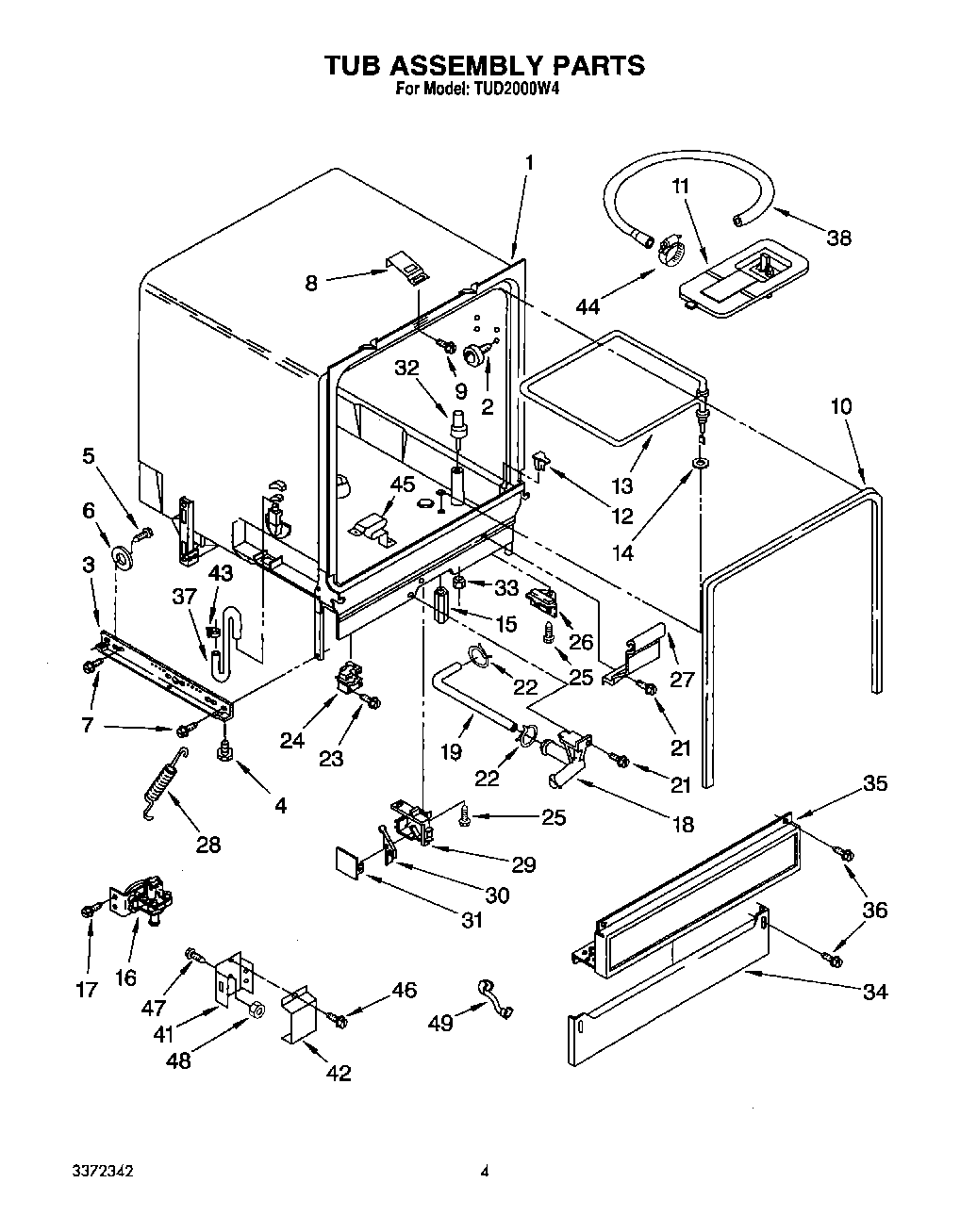

TUD2000W4 04 – TUB ASSEMBLY, LIT/OPTIONAL

TUD2000W4 04 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

TUD2000W4 04 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3372342
	WPL LIT3370041
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	WPL LIT3369093
	Guide, Use & Care
	Wiring Diagram
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
21	W11693756 Whirlpool Screw Assembly
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	Access Panel (Includes Item 39)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP596669 Whirlpool Hose Clamp
44	WP3367052 Whirlpool Hose Clamp
45	Support, Heater
46	Screw
47	WP250830 Whirlpool Refrigerator Screw
48	WP488130 Whirlpool Air Conditioner Nut
49	285006 Whirlpool Spray
49	WPL 72112
49	Enamel, Black (1 Qt. Uncut)
49	350956 Whirlpool Spray Assembly
49	350942 Whirlpool Spray Paint
49	675679 Whirlpool Dishwasher White Tip Tines
49	Almond (Uncut)
49	Leveler (Thinner)
49	WP72107 Whirlpool Touchup
49	WP676453 Whirlpool Dishwasher Touch-Up
49	Platinum
49	676458 Whirlpool Dishwasher Tine Tip
49	W10840471 Whirlpool Dishwasher Touch Up
49	Side Panel Kit (White)
49	Side Panel Kit: (Almond)
49	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
49	Relief, Strain
49	WP676455 Whirlpool Dishwasher Touch-Up
49	Avocado
49	Gold
49	Toast
49	72017 Whirlpool Appliance Touch-Up Paint White
