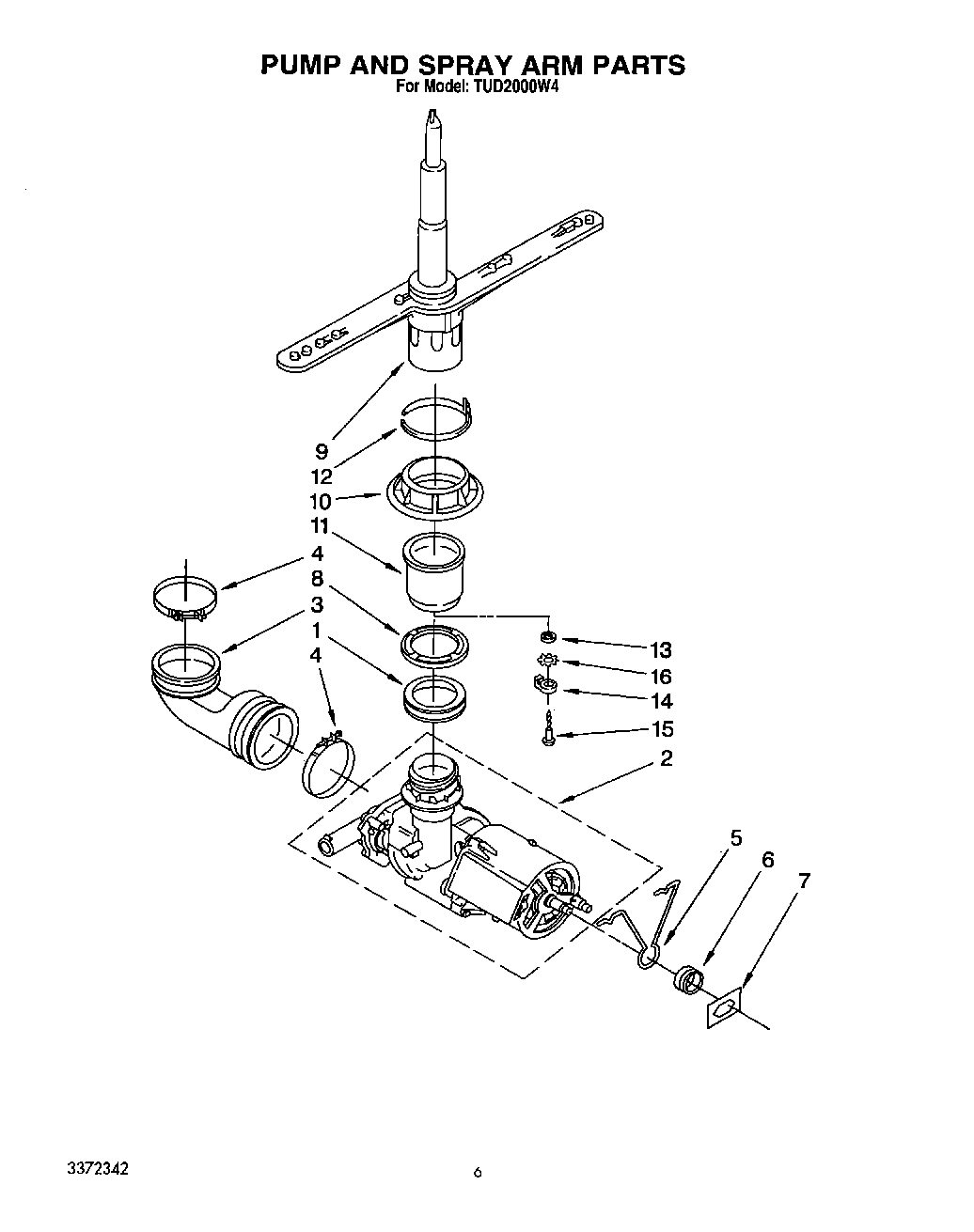

TUD2000W4 05 – PUMP AND SPRAY ARM

Products

Position	Product
1	Grommet, Pump Seal
2	PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3	W11189178 Whirlpool Dishwasher Hose
4	Clamp (2)
5	Support, Motor
6	Grommet, Motor Support
7	Push-Nut, Motor Support
8	Washer, Grommet
9	Spray Arm, Assembly Lower
10	Nut, Pump Outlet
11	WP3371745 Whirlpool Dishwasher Support
12	WP3369045 Whirlpool Dishwasher Seal
13	Washer
14	3371746 Whirlpool Dishwasher Bearing
15	Shoulder Screw
16	Washer, Curved
