TUD2000W5 05 – PUMP AND SPRAY ARM

TUD2000W5 05 – PUMP AND SPRAY ARM

Written by

in

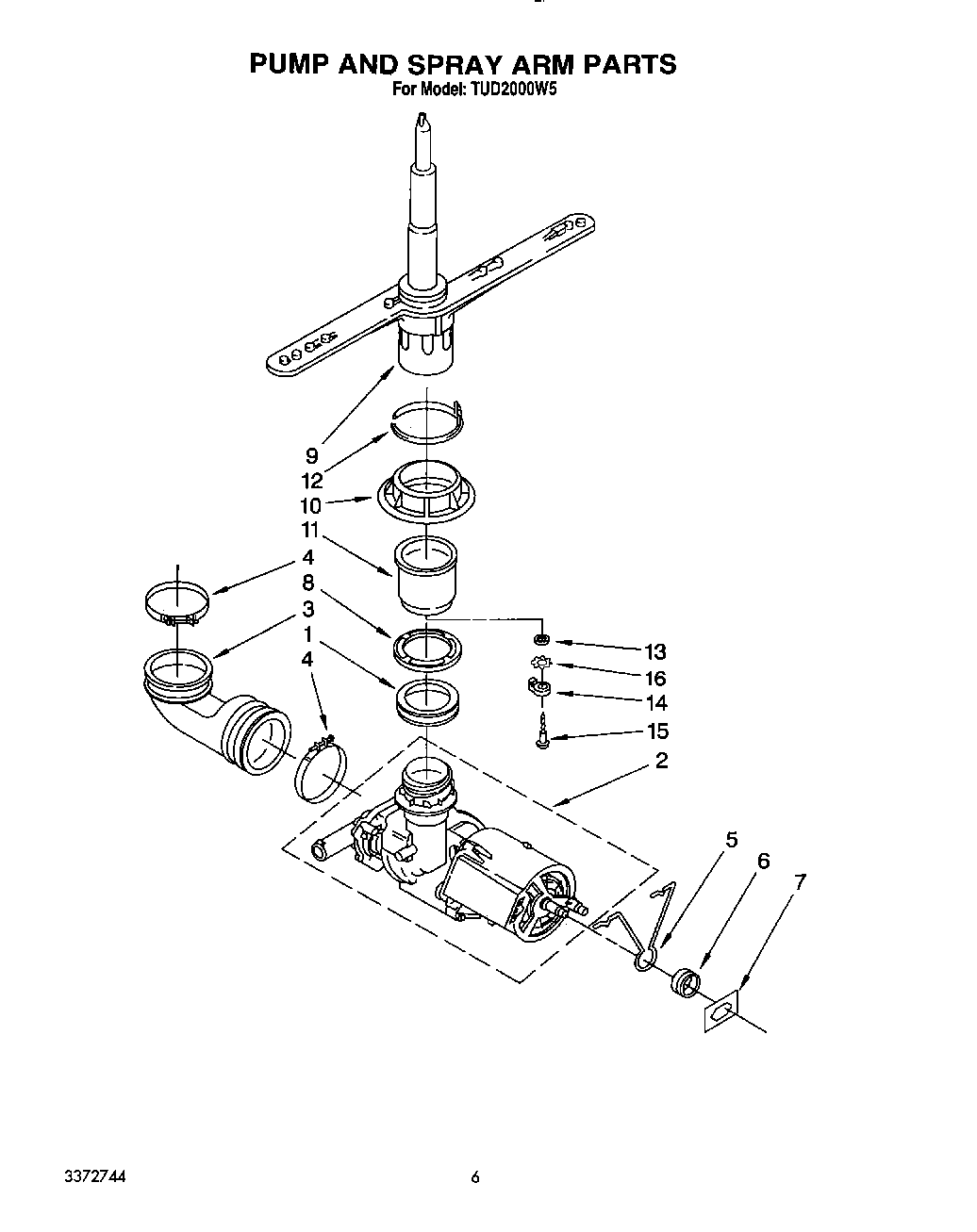

TUD2000W5 05 – PUMP AND SPRAY ARM

Products

PositionProduct
1Grommet, Pump Seal
2PUMP & MOTOR ASSEMBLY FOR BREAKDOWN OF PUMP PARTS, REFER TO PUMP AND MOTOR PARTS PAGE
3W11189178 Whirlpool Dishwasher Hose
4Clamp (2)
5Support, Motor
6Grommet, Motor Support
7Push-Nut, Motor Support
8Washer, Grommet
9Spray Arm, Assembly Lower
10Nut, Pump Outlet
11WP3371745 Whirlpool Dishwasher Support
12WP3369045 Whirlpool Dishwasher Seal
13Washer
143371746 Whirlpool Dishwasher Bearing
15Shoulder Screw
16Washer, Curved
