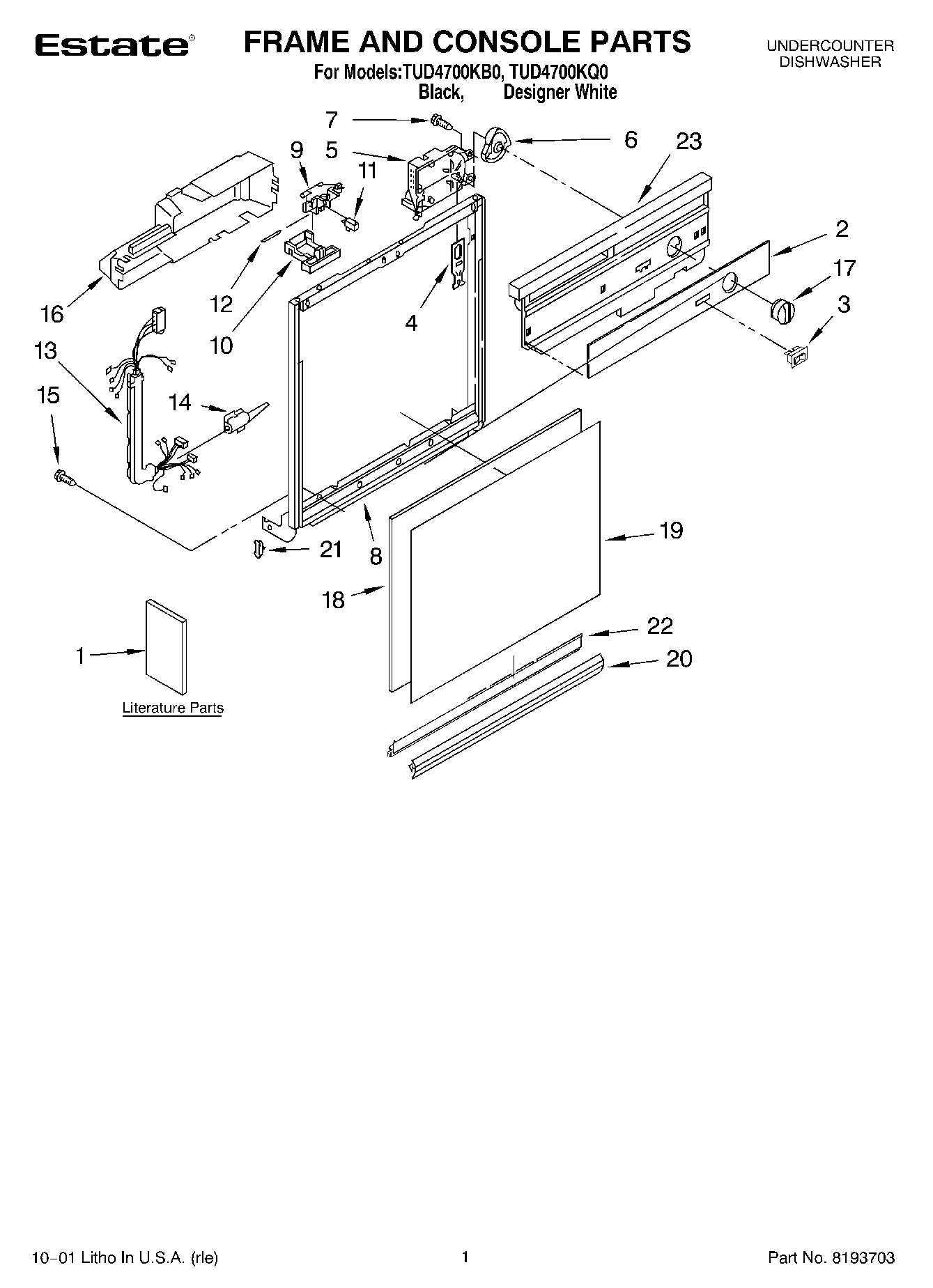

TUD4700KB0 01 – FRAME AND CONSOLE, LITERATURE

TUD4700KB0 01 – FRAME AND CONSOLE, LITERATURE

Written by

in

TUD4700KB0 01 – FRAME AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Literature Parts (Energy Guide)
2Insert, Console (Black)
2Insert, Console (White)
38051729 Whirlpool Dishwasher Switch
38051730 Whirlpool Dishwasher Switch
4Follower, Cam
5Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8Door Frame (Includes Item 24) (White)
83374711 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10WP3368954 Whirlpool Dishwasher Lever
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Knob, Timer (White)
17Knob, Timer
18Spacer, Corrugated
19WP3369769 Whirlpool Dishwasher Panel
20Retainer, Panel (White)
20Retainer, Panel
21WP3373234 Whirlpool Dishwasher Bearing
22WP3374716 Whirlpool Dishwasher Channel
23Console (Also Order Key 2) (Black)
23Console (Also Order Key 2) (White)
