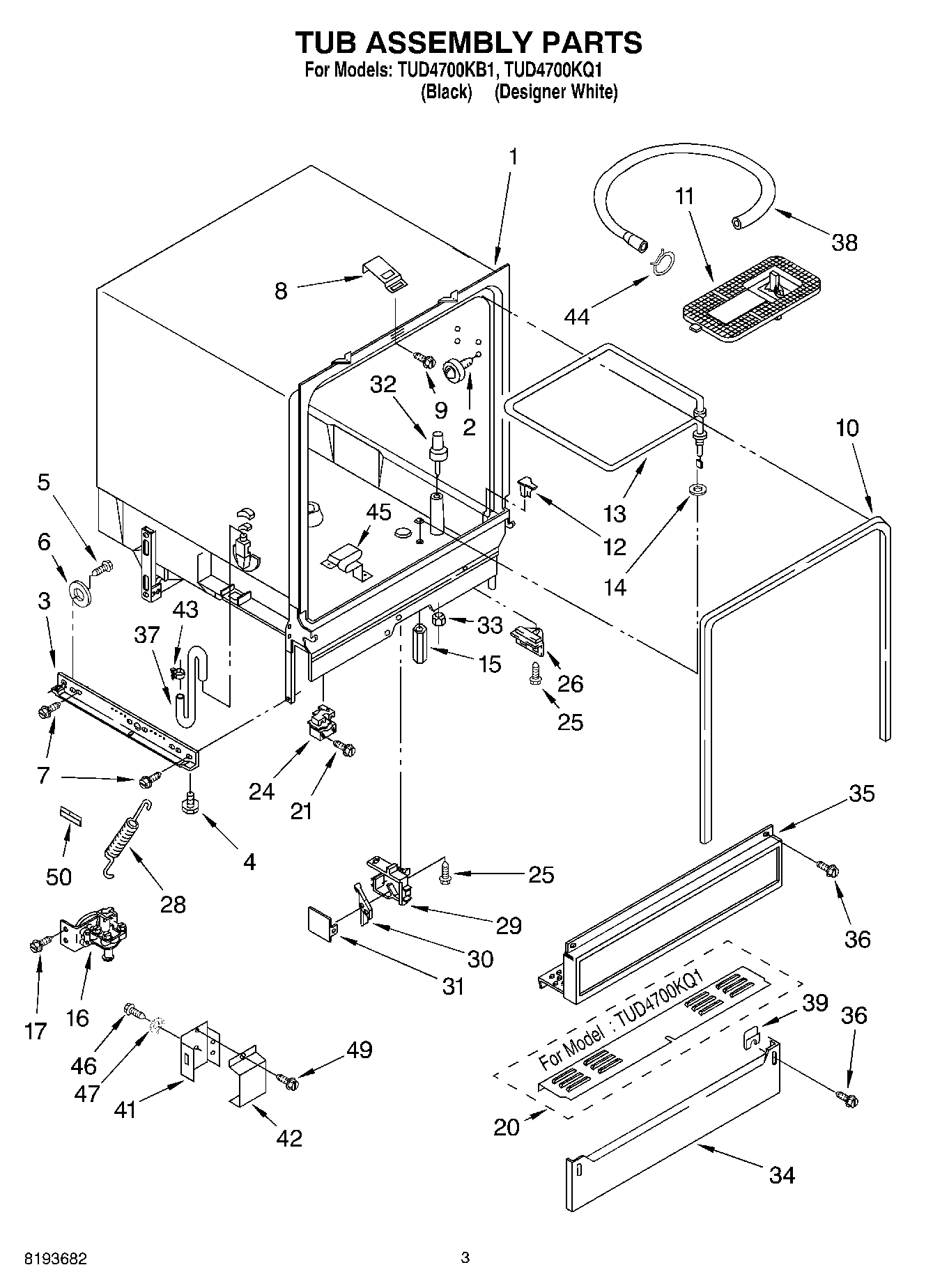

TUD4700KQ1 03 – TUB ASSEMBLYadmin2025-04-26T11:00:04+00:00TUD4700KQ1 03 – TUB ASSEMBLY ProductsPositionProduct1Tub Assembly2Tub, Wheel Assembly (8)3Runner (2)48193716 Whirlpool Leveling Leg5Screw (2)6WP302819 Whirlpool Dishwasher Wheel7SCREW8Plate, Latch9WP3374720 Whirlpool Dishwasher Screw10WPW10509257 Whirlpool Door Gasket11WP3369322 Whirlpool Cover Assembly12DEFLECTOR-DISHWASHER13WPW10082894 Whirlpool Dishwasher Heater14WP717273 Whirlpool Dishwasher Rubber Washer15WPW10477552 Whirlpool Dishwasher Terminal Nut16W10844024 Whirlpool Water Inlet Valve17WP489069 Whirlpool Compactor Screw20Extension & Clip Assembly21WP489128 Whirlpool Refrigerator Screw24W10102260 Whirlpool Dishwasher Motor Relay25WP304231 Whirlpool Dishwasher Screw26WP3368928 Whirlpool Dishwasher Fuse28WP3373228 Whirlpool Dishwasher Spring29Housing, Float Switch30Switch, Float318318219 Whirlpool Dishwasher Cover Housing32WP8519552 Whirlpool Dishwasher Float33Nut34WP3379920 Whirlpool Dishwasher Toe Panel34WP3379921 Whirlpool Dishwasher Toe Panel35Access Panel (White)35Access Panel & Clip Assembly (Includes Item 39)36WP302868 Whirlpool Screw37Hose, Inlet38WP3374077 Whirlpool Dishwasher Drain Hose39Clip, Grounding41Terminal Box42300068 Whirlpool Dishwasher Cover Assembly43WP596669 Whirlpool Hose Clamp44WP356138 Whirlpool Hose Clamp453379740 Whirlpool Dishwasher Heater Support46WP3400014 Whirlpool Dishwasher Screw47WP3378128 Whirlpool Dishwasher Washer49Screw50Friction Pad (Velcro)
