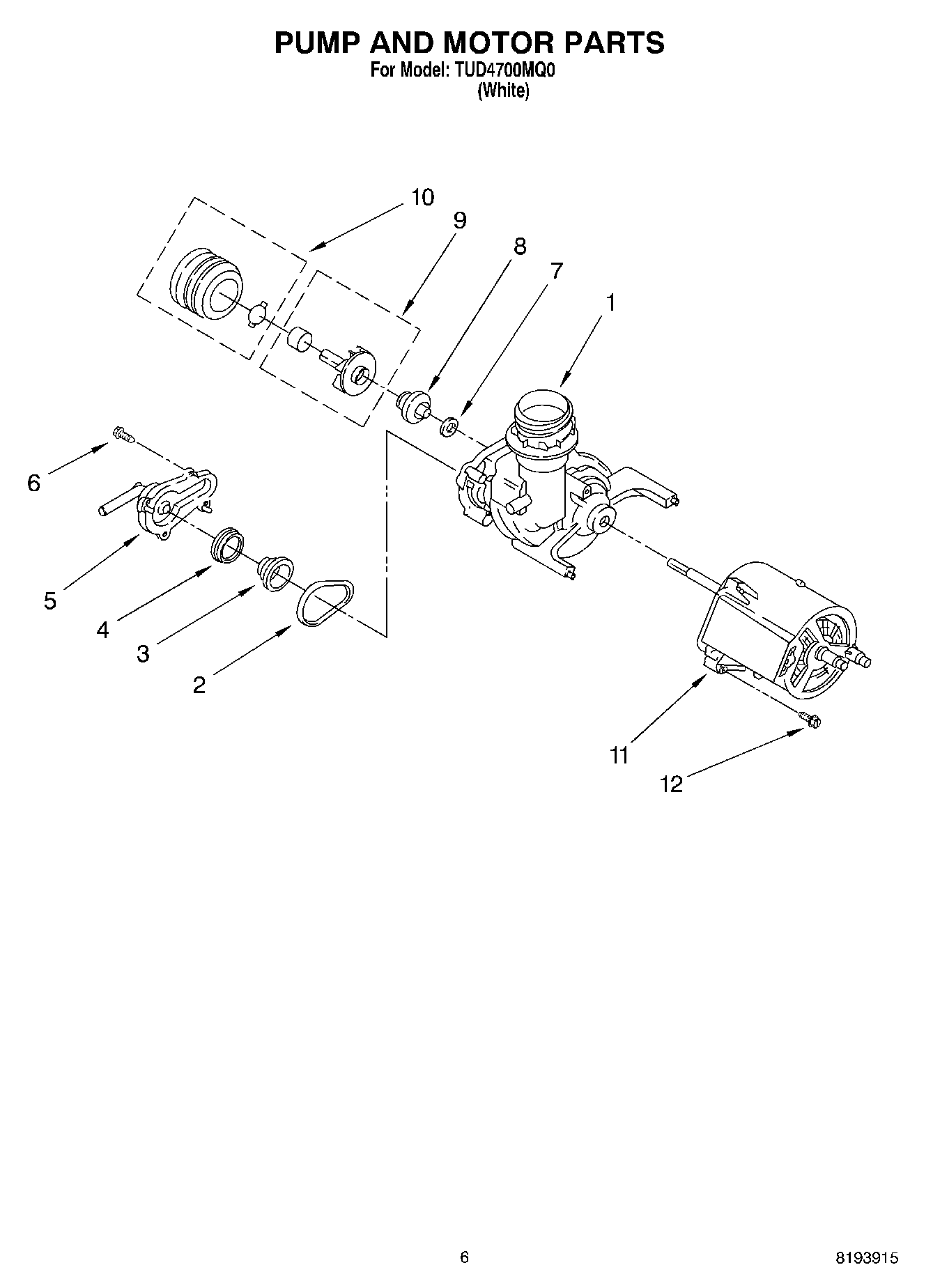

TUD4700MQ0 05 – PUMP AND MOTOR PARTS

Products

Position	Product
1	WP3369011 Whirlpool Dishwasher Housing
2	WP3369031 Whirlpool Dishwasher Seal
3	Diaphragm
4	Ring, Diaphragm
5	Cover, Drain Valve
6	WP3368921 Whirlpool Screw
7	Seal Seat
8	WP3385557 Whirlpool Dishwasher Head Seal
9	4386996A Whirlpool Dishwasher Impeller
10	WP3369012 Whirlpool Dishwasher Disk Mount
11	Motor
12	3368922 Whirlpool Dishwasher TORX Screw
