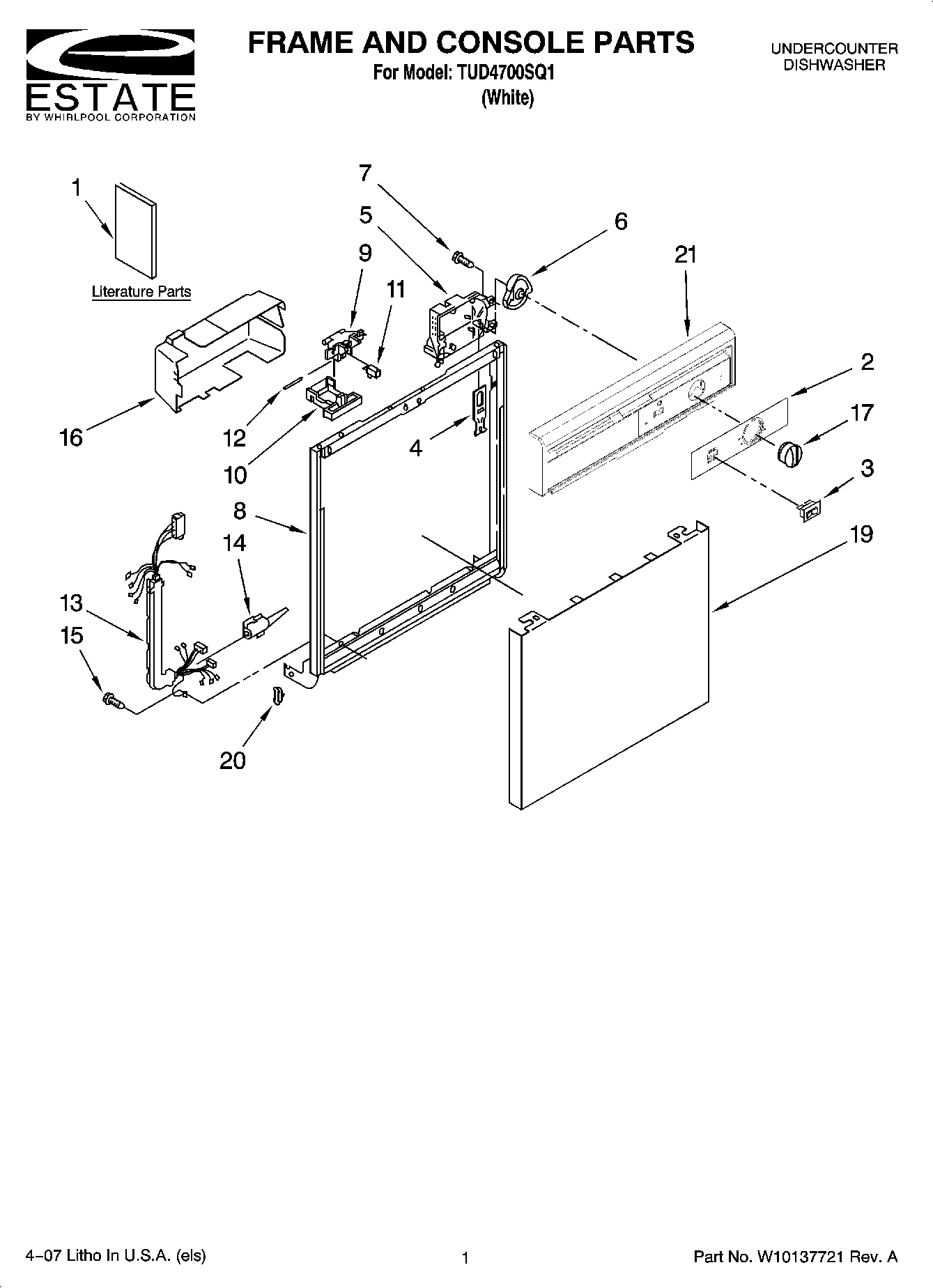

TUD4700SQ1 01 – FRAME AND CONSOLE PARTS

TUD4700SQ1 01 – FRAME AND CONSOLE PARTS

Written by

in

TUD4700SQ1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
1Diagram, Wiring
1Guide, Use & Care
1Energy Guide
2Insert, Console
38051730 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5WP8535372 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
19Panel Front (White Model)
20WP3373234 Whirlpool Dishwasher Bearing
21Console (Includes Item 2)
