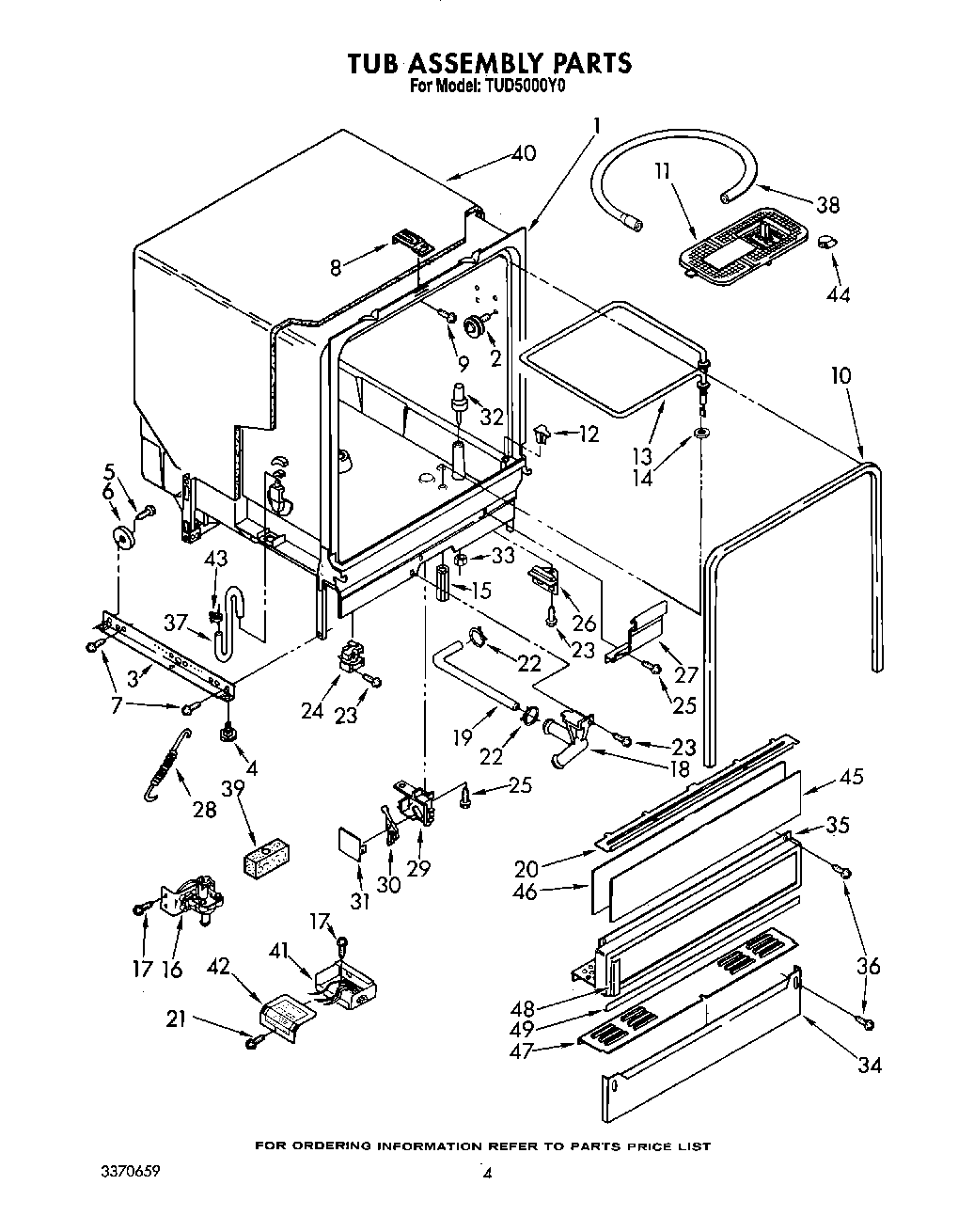

TUD5000Y0 04 – TUB ASSEMBLY

Products

Position	Product
1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
20	WP3372412 Whirlpool Dishwasher Retainer
21	W11693756 Whirlpool Screw Assembly
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	Spring & Bearing Assembly (2)
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	Diverter
40	W11086533 Whirlpool Dishwasher Shield
41	Terminal Block & Plug Assembly
42	Cover Assembly, Terminal Box
43	WP596669 Whirlpool Hose Clamp
44	WP3367052 Whirlpool Hose Clamp
45	Panel, Front Access (Almond/Black)
46	Spacer, Corrugated
47	Extension
48	Trim, Side (2)
49	Trim, Bottom
