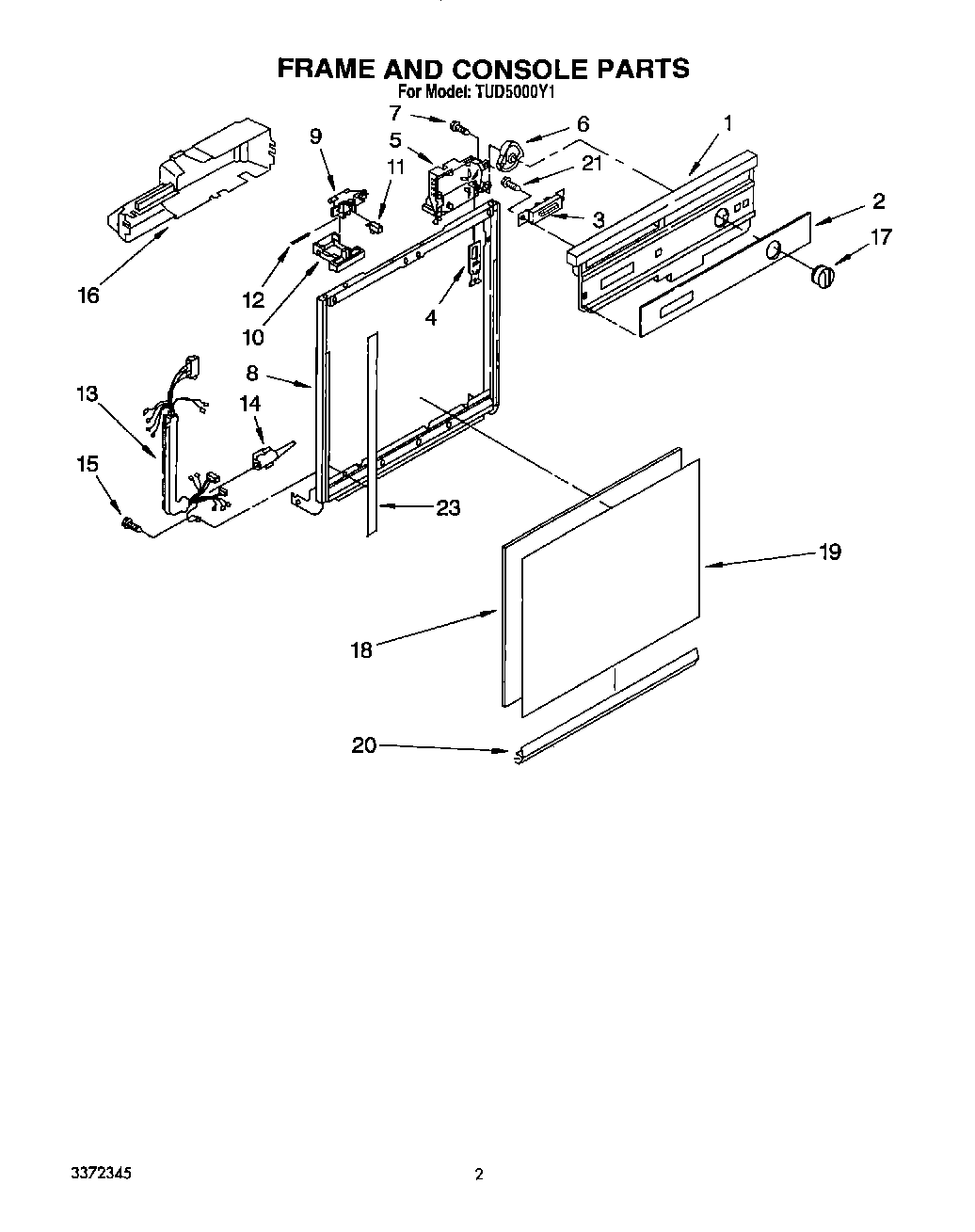

TUD5000Y1 02 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Incl. Illus. 2)
2	Insert, Console
3	Switch, 5-Pushbutton
4	Follower, Cam
5	Timer
6	Cam
8	Door Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	WP3368954 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	Knob, Timer
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel
21	WP304231 Whirlpool Dishwasher Screw
23	Trim
