TUD5000Y4 03 – TUB ASSEMBLY, LIT/OPTIONAL

TUD5000Y4 03 – TUB ASSEMBLY, LIT/OPTIONAL

Written by

in

TUD5000Y4 03 – TUB ASSEMBLY, LIT/OPTIONAL

Products

Position	Product
	350956 Whirlpool Spray Assembly
	DOOR SPRING KIT: (HEAVY DUTY)
	WP676453 Whirlpool Dishwasher Touch-Up
	WP676455 Whirlpool Dishwasher Touch-Up
	Gold
	Side Panel Kit: (Almond)
	Platinum
	Toast
	Side Panel Kit (White)
	Avocado
	Tine Tip Repair Kit (Blue – Enough For Two Complete Dishracks)
	W10840471 Whirlpool Dishwasher Touch Up
	676458 Whirlpool Dishwasher Tine Tip
	675679 Whirlpool Dishwasher White Tip Tines
	WPL LIT3373482
	72032 Whirlpool Touch Up Paint Black
	WPL LIT3373616
	285006 Whirlpool Spray
	Instructions, Installation (Supplement) (Locating Your Water Supply)
	Almond (Uncut)
	Leveler (Thinner)
	Instructions, Installation
	350942 Whirlpool Spray Paint
	Do-It Yourself Manual
	Enamel, Black (1 Qt. Uncut)
	WPL LIT3373749
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White

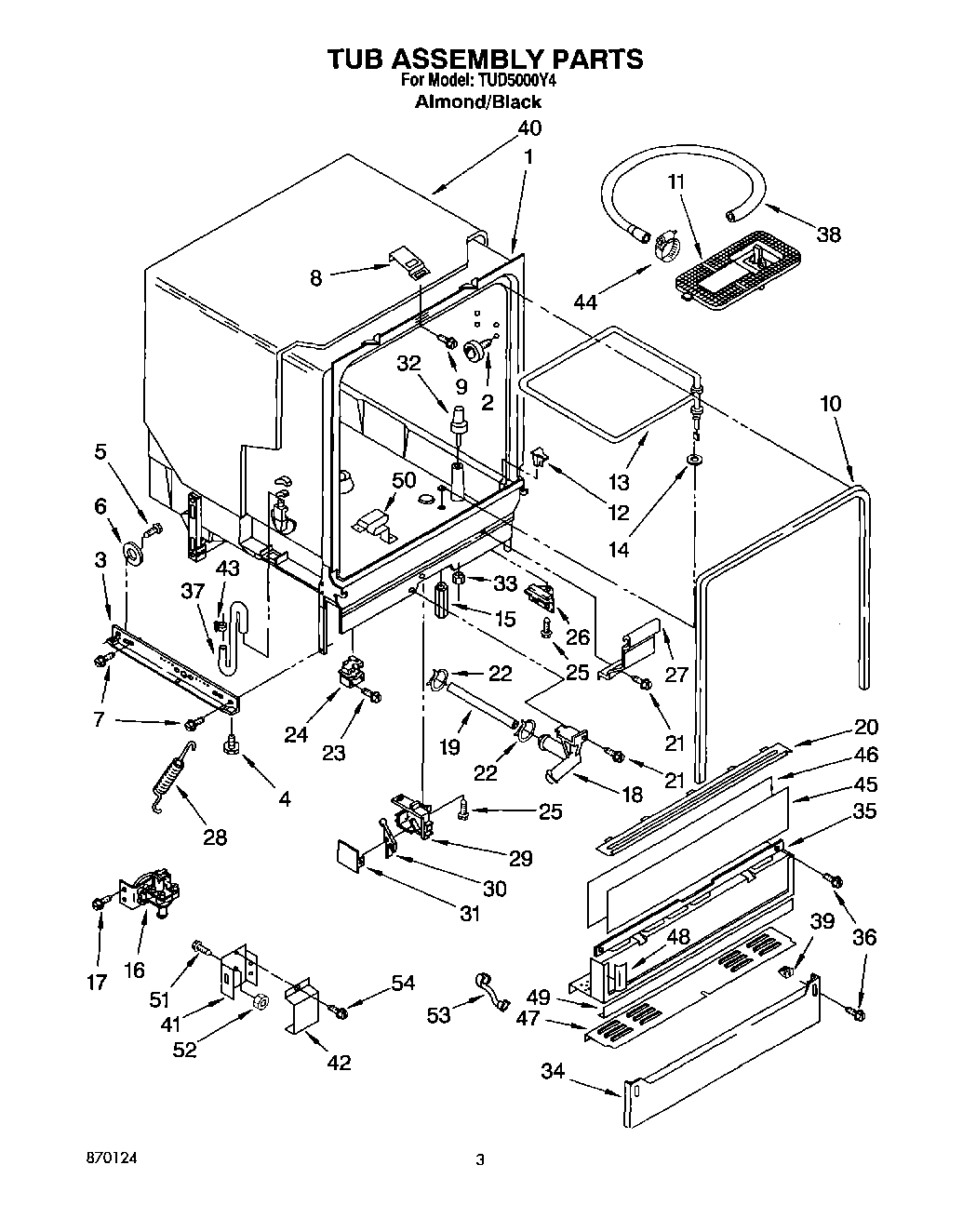

1	Tub Assembly
2	Tub, Wheel Assembly (8)
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	Screw, 8-32
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	Nut (2) (Heater Terminal)
16	Water Valve
17	WP489069 Whirlpool Compactor Screw
18	Check, Valve Assembly
19	Hose, Coupler
20	WP3372412 Whirlpool Dishwasher Retainer
21	W11693756 Whirlpool Screw Assembly
22	CLAMP, HOSE
23	WP489128 Whirlpool Refrigerator Screw
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	Shield, Harness
28	WP3373228 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	Cover, Switch Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	WP3369193 Whirlpool Dishwasher Panel
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	Clip, Grounding
40	W11086533 Whirlpool Dishwasher Shield
41	Box, Terminal
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP596669 Whirlpool Hose Clamp
44	WP356138 Whirlpool Hose Clamp
45	Panel, Front Access (Almond/Black)
46	Spacer, Corrugated
47	Extension
48	Trim, Side (2)
49	Trim, Bottom
50	Support, Heater
51	WP250830 Whirlpool Refrigerator Screw
52	WP488130 Whirlpool Air Conditioner Nut
53	Relief, Strain
54	Screw
