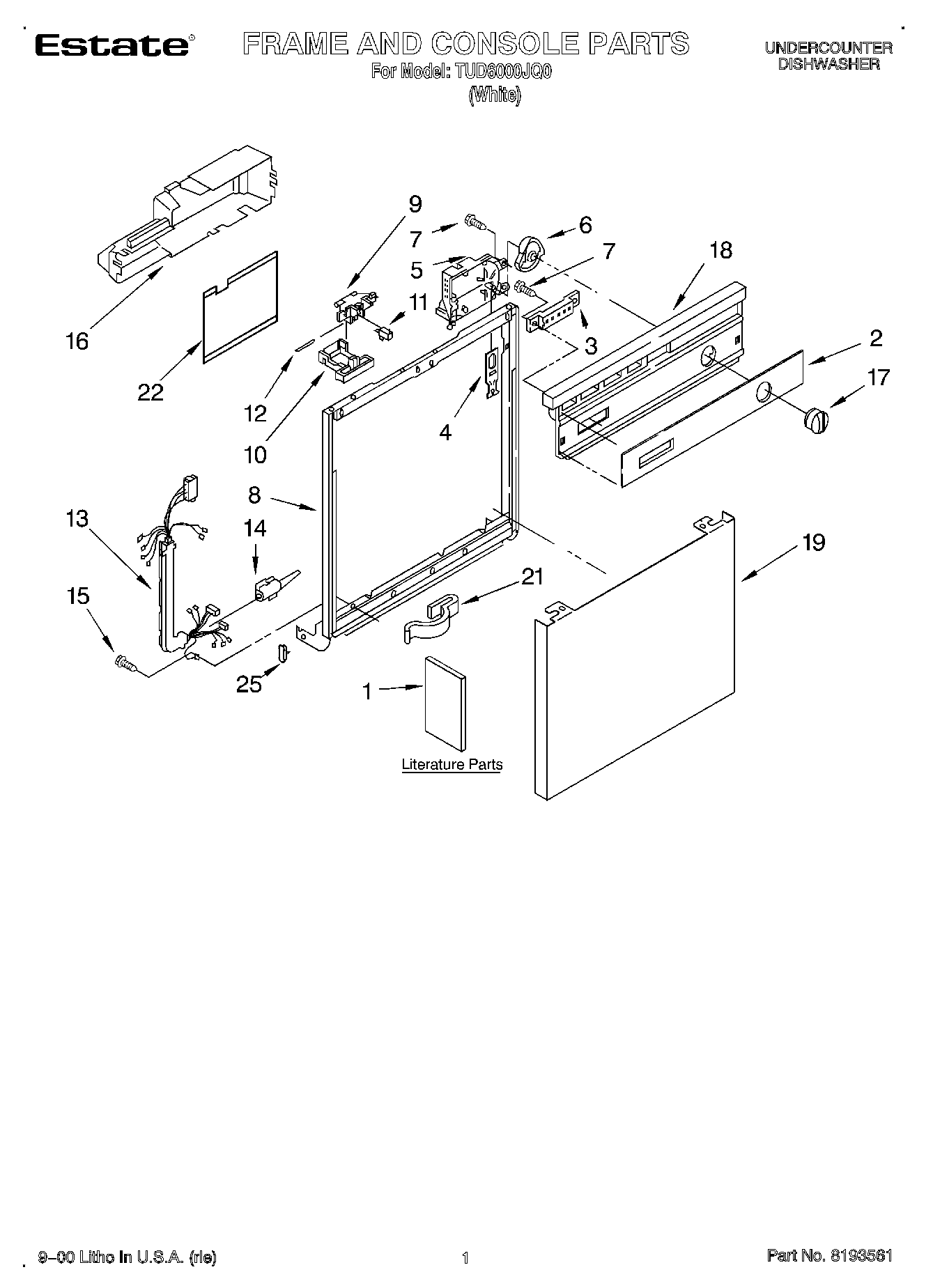

TUD6000JQ0 01 – FRAME & CONSOLE, LITERATURE

TUD6000JQ0 01 – FRAME & CONSOLE, LITERATURE

Written by

in

TUD6000JQ0 01 – FRAME & CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Energy)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Diagram, Wiring)
1Literature Parts (Instructions, Installation)
1Instructions, Installation (Supplement) (Locating Your Water Supply)
1Do-It Yourself Manual
2Insert, Console
3Switch, 5 Button (White)
4WP3369529 Whirlpool Dishwasher Follower
5WP8535371 Whirlpool Dishwasher Timer
6WP3378124 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
18Console (Includes Item 2)
19Panel Front (White Model)
218528351 Whirlpool Clip
22Shield, Control Cover
25WP3373234 Whirlpool Dishwasher Bearing
