TUD6000JQ0 05 – DISHRACK

Products

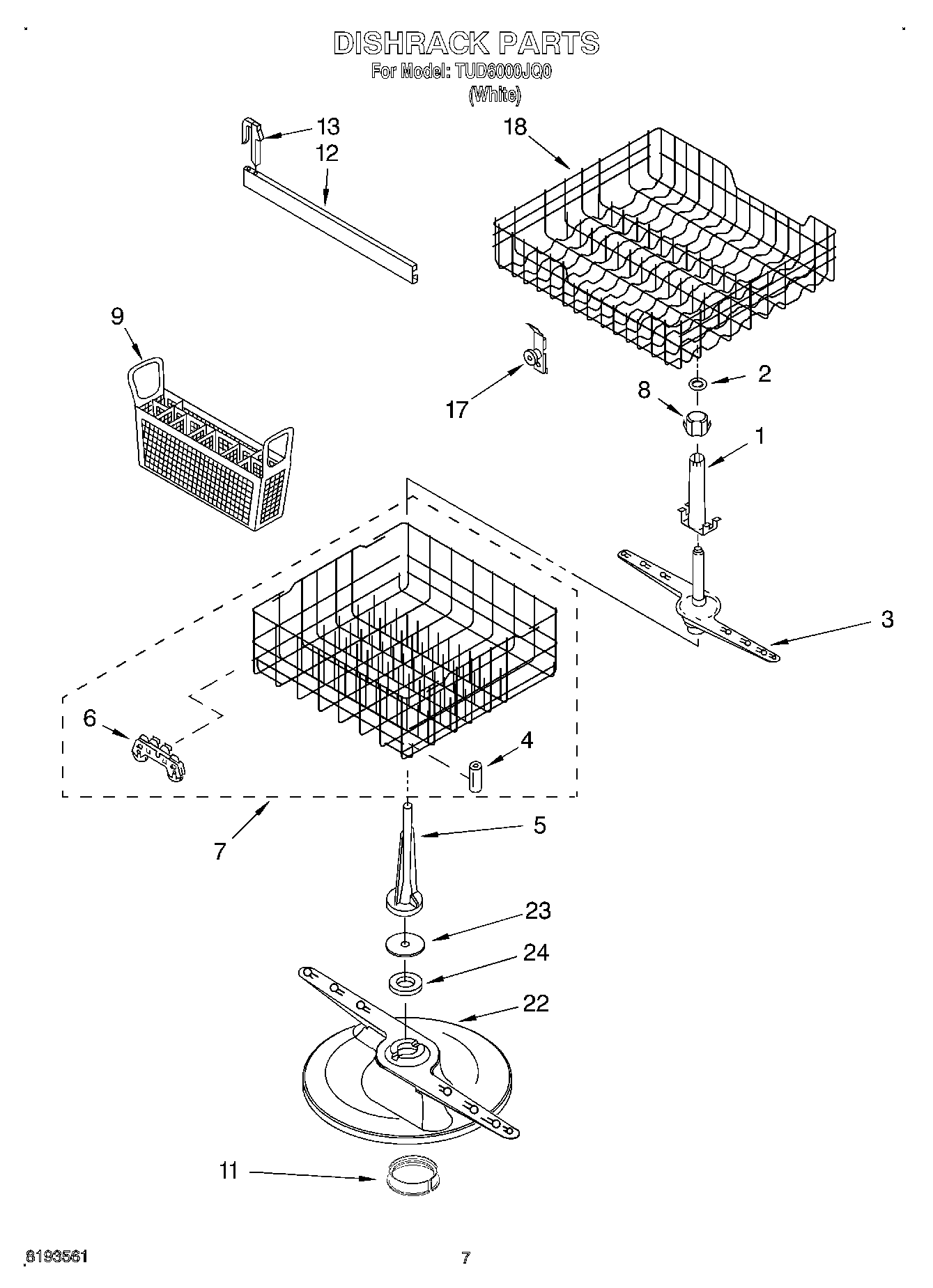

PositionProduct
1Support, Arm (Also Order Items 2 & 8)
2Clip
3Spray Arm, Upper (Also Order Item 8)
4WP3385142 Whirlpool Dishwasher Bumper
5Tower, Pressure
6WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
7W10161215 Whirlpool Dishwasher Dishrack
8Support Lock, Spray Arm
9BASKT-WARE
11WP3376846 Whirlpool Seal
12WP3385089 Whirlpool Track
13WP3379941 Whirlpool Dishwasher Stop
17Wheel & Axle Assembly (4)
18W11169039 Whirlpool Dishwasher Dish Rack
22WP8268874 Whirlpool Dishwasher Spray Arm
23Cap, Nozzle
24WP719576 Whirlpool Dishwasher Bearing
