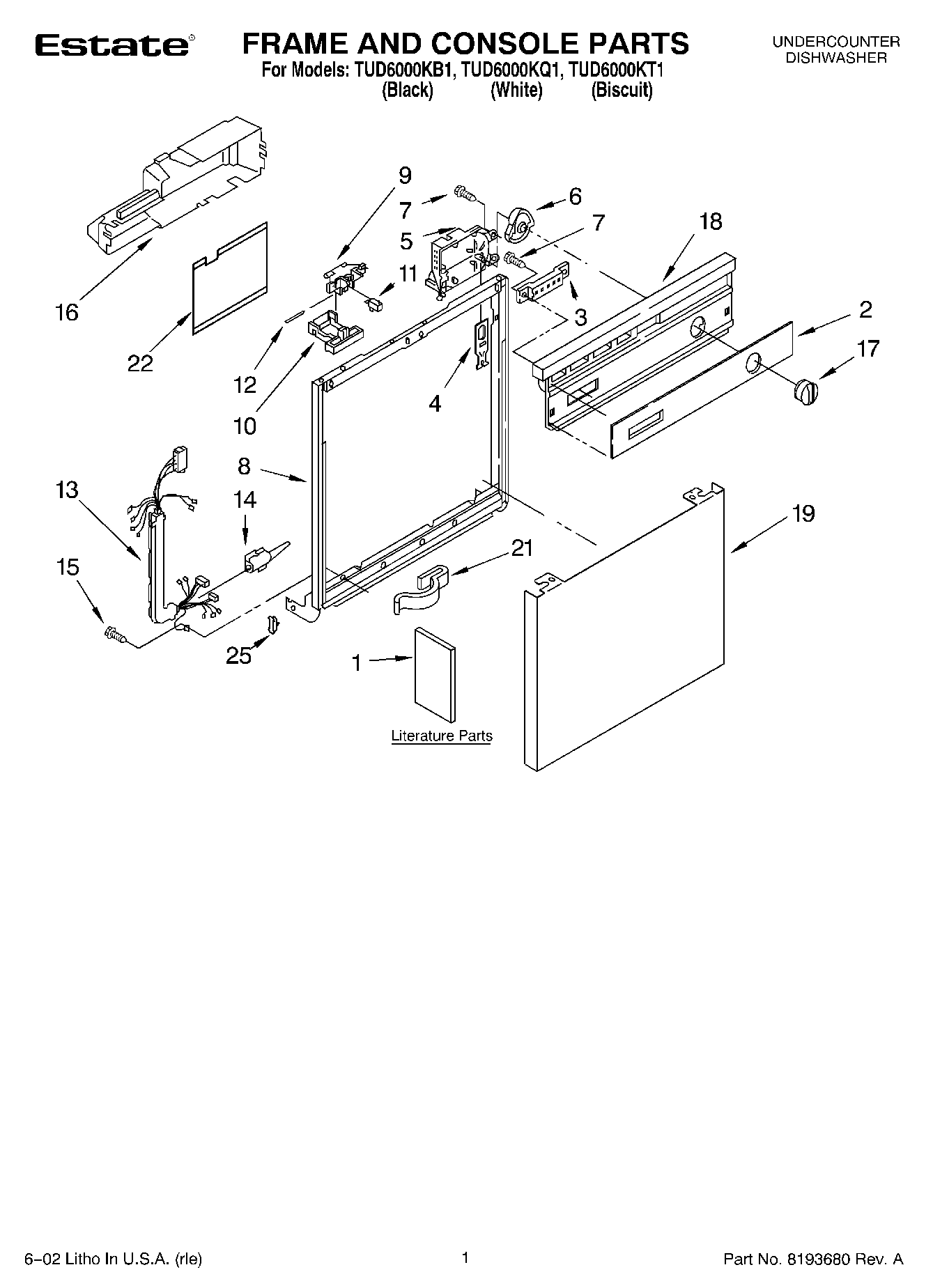

TUD6000KT1 01 – FRAME AND CONSOLE, LITERATUREadmin2025-04-26T11:01:13+00:00TUD6000KT1 01 – FRAME AND CONSOLE, LITERATURE
Products
| Position | Product |
|---|
| 1 | Literature Parts (Guide, Energy) |
| 1 | Literature Parts (Instructions, Installation) |
| 1 | Instructions, Installation (Supplement) (Locating Your Water Supply) |
| 1 | Do-It Yourself Manual |
| 1 | Literature Parts (Diagram, Wiring) |
| 1 | Literature Parts (Guide, Use & Care) |
| 2 | Insert, Console (Black) |
| 2 | Insert, Console (Biscuit) |
| 2 | Insert, Console (White) |
| 3 | Switch, 5 Button (White) |
| 3 | Switch, 5 Button (Biscuit) |
| 3 | Switch, 5 Button (Black) |
| 4 | WP3369529 Whirlpool Dishwasher Follower |
| 5 | WP8535371 Whirlpool Dishwasher Timer |
| 6 | WP3378124 Whirlpool Dishwasher Cam |
| 7 | WP304231 Whirlpool Dishwasher Screw |
| 8 | WP9743028 Whirlpool Dishwasher Frame |
| 9 | WP3380854 Whirlpool Door Latch Bolt |
| 10 | Lever, Latch White |
| 10 | Lever, Latch |
| 10 | Lever, Latch |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP3400892 Whirlpool Dishwasher Screw |
| 16 | Cover, Timer |
| 17 | Knob, Timer (Biscuit) |
| 17 | 3375348 Whirlpool Dishwasher Timer Knob |
| 18 | Console (Includes Item 2) (White) |
| 18 | Console (Includes Item 2) (Black) |
| 18 | Console (Includes Item 2) (Biscuit) |
| 19 | Panel, Front (Biscuit) |
| 19 | Panel Front (White Model) |
| 19 | Panel Front (Black Model) |
| 21 | WP3400935 Whirlpool Dishwasher Clip |
| 22 | Shield, Control Cover |
| 25 | WP3373234 Whirlpool Dishwasher Bearing |
