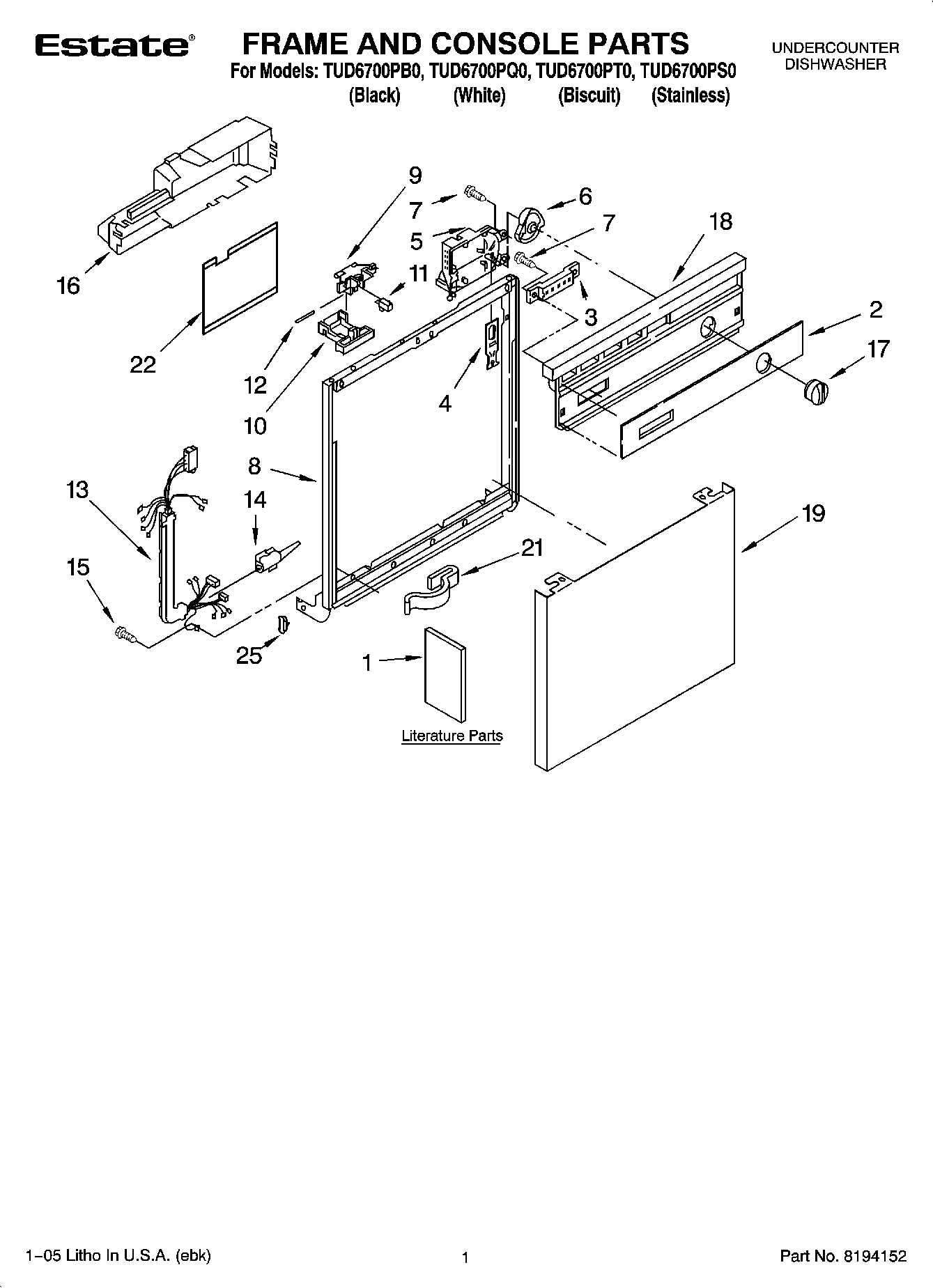

TUD6700PT0 01 – FRAME AND CONSOLE PARTS

TUD6700PT0 01 – FRAME AND CONSOLE PARTS

Written by

in

TUD6700PT0 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1WPL 677967
1Guide, Use & Care
1Instructions, Installation
1Diagram, Wiring
1Guide, Energy
2Insert, Console (White)
2Insert, Console (Biscuit)
2Insert, Console (Black)
3Switch, 7 Button
4WP3369529 Whirlpool Dishwasher Follower
5WP8535371 Whirlpool Dishwasher Timer
6WP3378124 Whirlpool Dishwasher Cam
7WP9743028 Whirlpool Dishwasher Frame
7WP304231 Whirlpool Dishwasher Screw
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
10Lever, Latch
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
173375348 Whirlpool Dishwasher Timer Knob
17Knob, Timer (Biscuit)
18Console (Includes Item 2) (White)
18Console (Includes Item 2) (Biscuit)
18Console (Includes Item 2) (Black)
19Panel Front (Black Model)
19Panel Front (Stainless Mdl.)
19Panel, Front (Biscuit)
19Panel Front (White Model)
21WP3400935 Whirlpool Dishwasher Clip
22Shield, Control Cover
25WP3373234 Whirlpool Dishwasher Bearing
