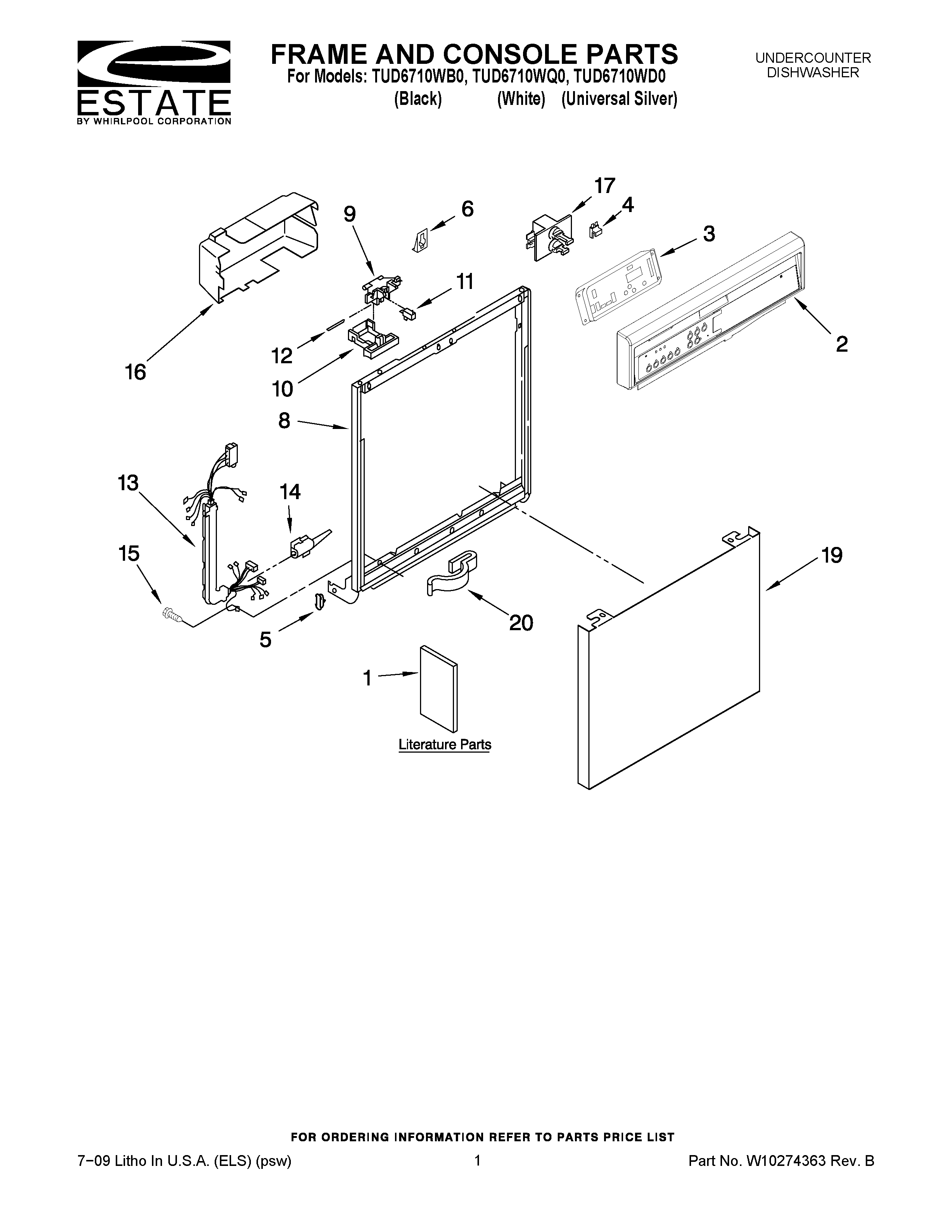

TUD6710WB0 01 – FRAME AND CONSOLE PARTS

TUD6710WB0 01 – FRAME AND CONSOLE PARTS

Written by

in

TUD6710WB0 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, ENERGY
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
1DIAGRAM, WIRING
1GUIDE, USE & CARE
2CONSOLE (INCLUDES INSERT & ACTIVE OVERLAY) (WHITE)
2CONSOLE (INCLUDES INSERT & ACTIVE OVERLAY) (BLACK)
3CONTROL ELECTRONIC
4675813 Whirlpool Thermal Fuse Kit
5WP3373234 Whirlpool Dishwasher Bearing
6675782 Whirlpool Dishwasher Catch
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
19Panel Front (White Model)
19Panel Front (Black Model)
19PANEL, FRONT (UNIVERSAL SILVER)
20WP3400935 Whirlpool Dishwasher Clip
