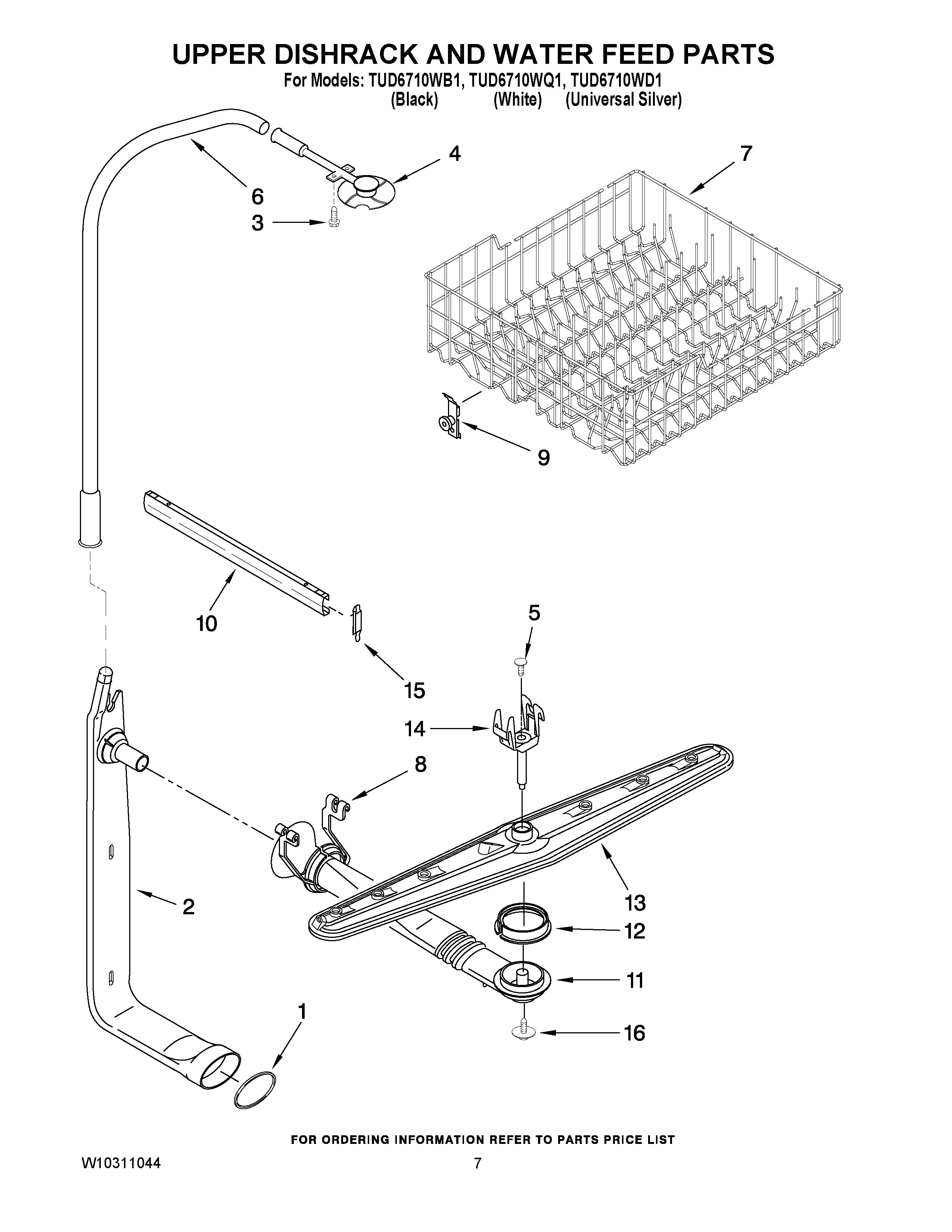

TUD6710WQ1 05 – UPPER DISHRACK AND WATER FEED PARTS

Products

PositionProduct
1Seal, Tube
2661651 Whirlpool Dishwasher Tube
3W10165274 Whirlpool Dishwasher Screw
4WP3379369 Whirlpool Dishwasher Wash Assembly
5WP3400919 Whirlpool Dishwasher Screw Cover
6Tube (3rd Level)
7DISHRACK
8WP3385160 Whirlpool Dishwasher Holder
9WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
10WP3385089 Whirlpool Track
11WPW10258149 Whirlpool Dishwasher Manifold
12WP3376846 Whirlpool Seal
13WP8519604 Whirlpool Dishwasher Spray Arm
14WP3385159 Whirlpool Dishwasher Mount
15WP8565925 Whirlpool Slide Rail Stop
16WPW10349488 Whirlpool Screw
