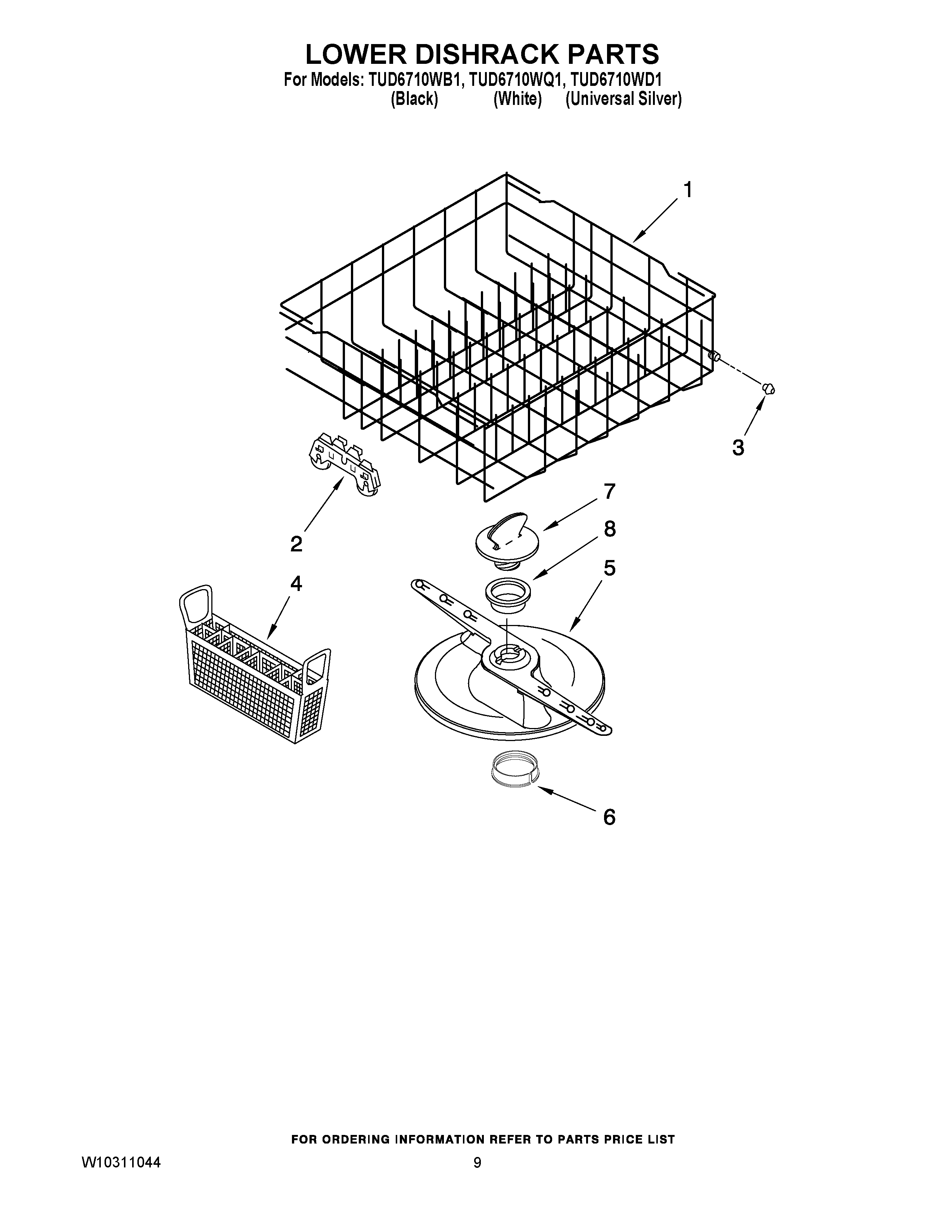

TUD6710WQ1 06 – LOWER DISHRACK PARTS

TUD6710WQ1 06 – LOWER DISHRACK PARTS

Written by

in

TUD6710WQ1 06 – LOWER DISHRACK PARTS

Products

PositionProduct
1W10161215 Whirlpool Dishwasher Dishrack
2WP8268645 Whirlpool Dishwasher Lower Dishrack Roller Assembly
4BASKT-WARE
5WP8268874 Whirlpool Dishwasher Spray Arm
6WP3376846 Whirlpool Seal
7WP8268873 Whirlpool Dishwasher Nut
8WP9742946 Whirlpool Dishwasher Spray Arm Bearing
