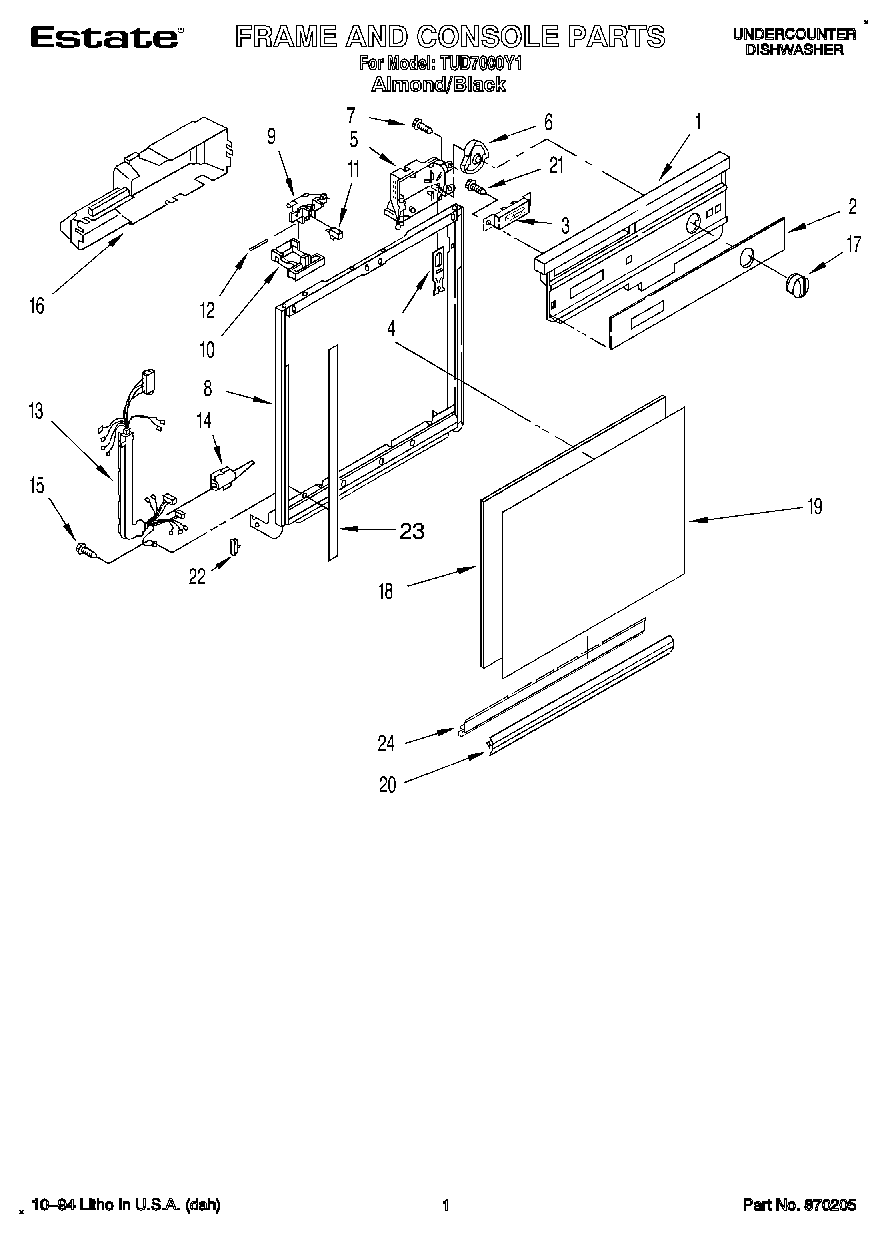

TUD7000Y1 01 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Incl. Illus. 2)
2	Insert, Console
3	Switch, 5-Pushbutton
4	Follower, Cam
5	Timer
6	WP8271510 Whirlpool Dishwasher Cam
8	3374711 Whirlpool Dishwasher Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	WP3368954 Whirlpool Dishwasher Lever
11	Shield, Switch
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover Timer
17	Knob, Timer
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel
21	WP304231 Whirlpool Dishwasher Screw
22	WP3373234 Whirlpool Dishwasher Bearing
23	Trim
24	WP3374716 Whirlpool Dishwasher Channel
