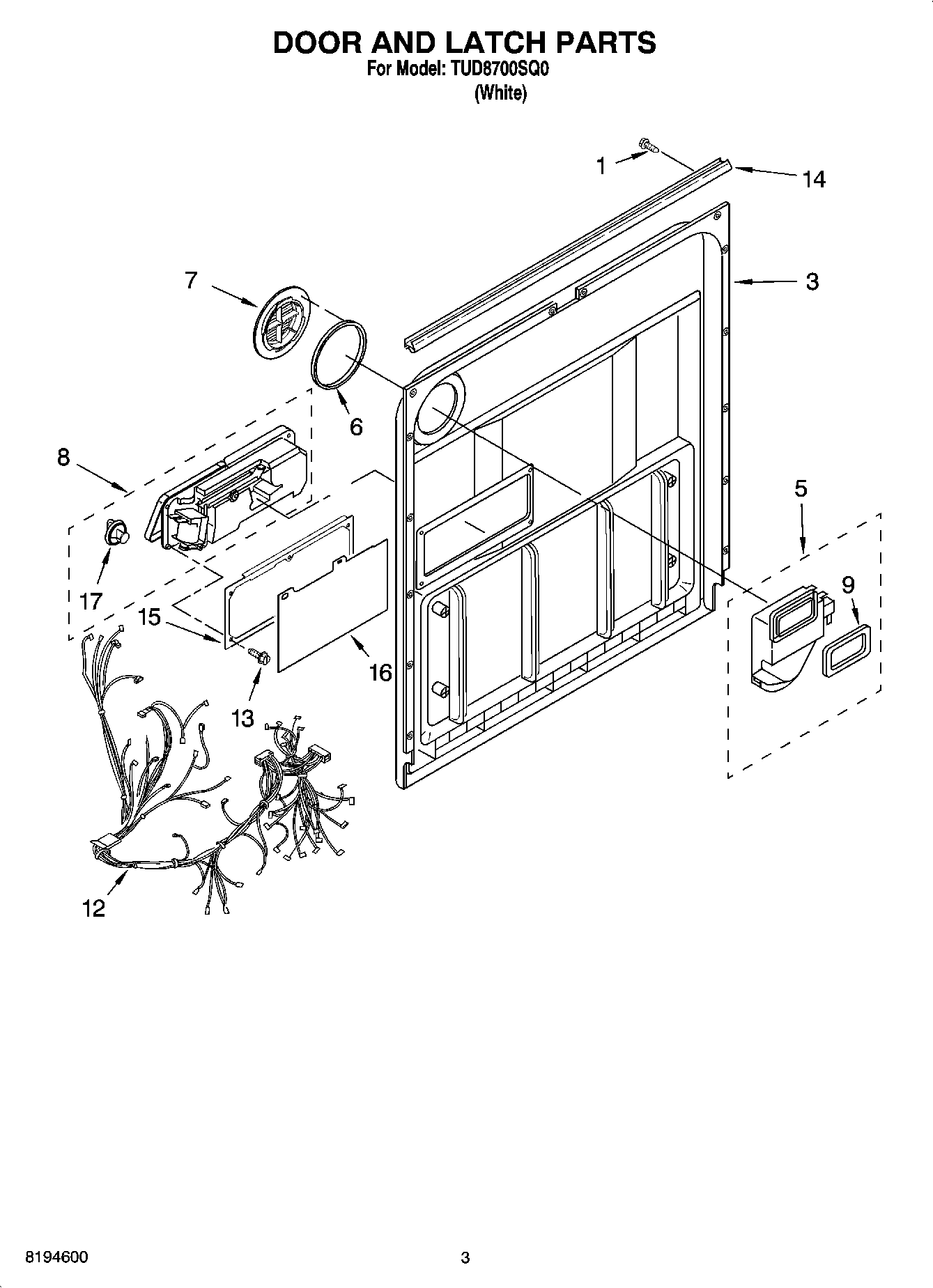

TUD8700SQ0 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	WPW10348409 Whirlpool Screw
3	WP3378179 Whirlpool Inner Door Panel
5	WP8558980 Whirlpool Dishwasher Vent
6	WP8269259 Whirlpool Air Vent Gasket
7	Deflector, Vent (Also Order Item 6)
8	WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9	WP8269258 Whirlpool Dishwasher Gasket
12	Wiring Harness Main
13	WPW10177098 Whirlpool Dishwasher Screw
14	WP8269296 Whirlpool Dishwasher Seal
15	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16	WP8531865 Whirlpool Dishwasher Door Shield
17	WP8558307 Whirlpool Rinse Aid Dispenser Cap
