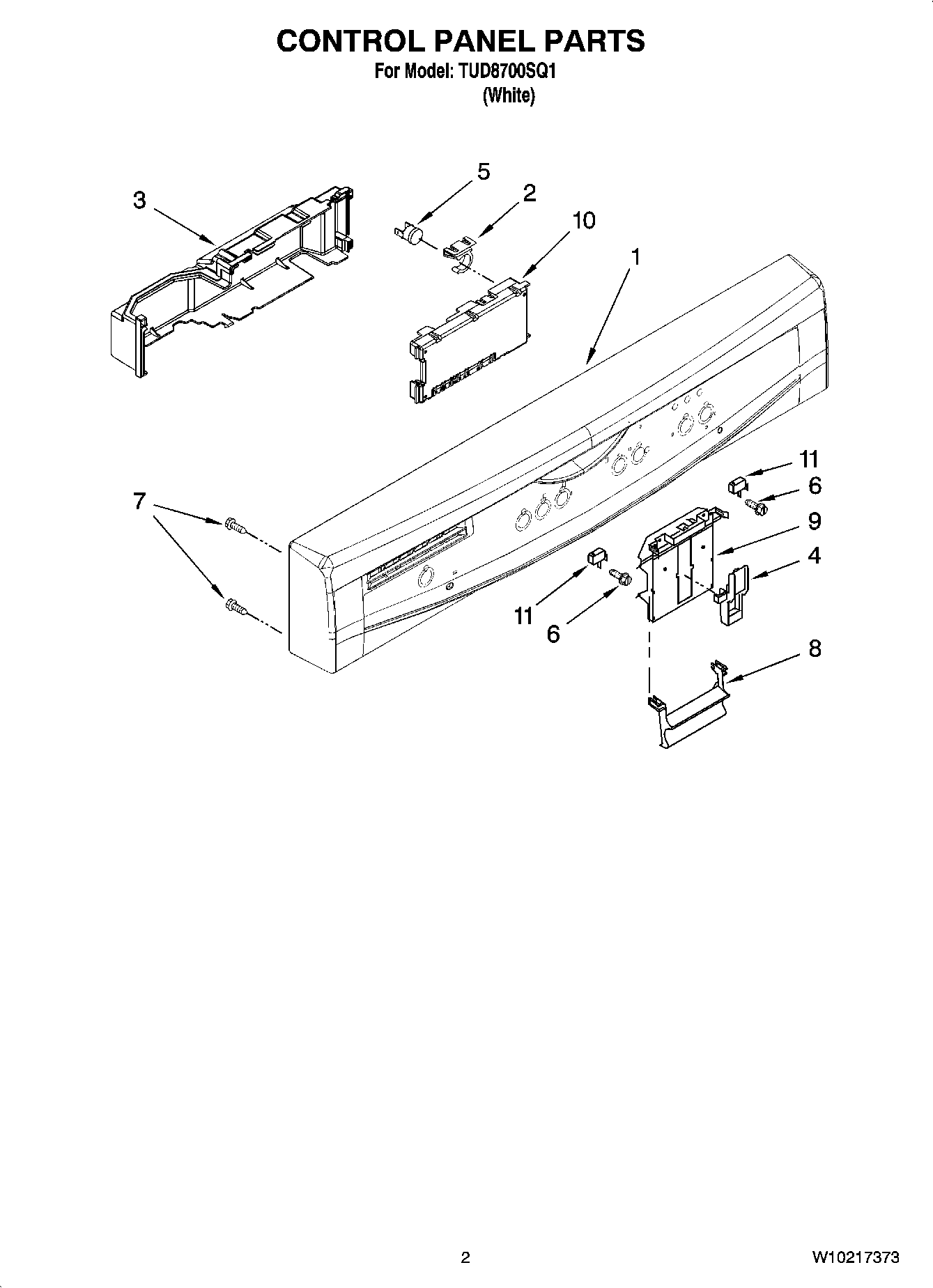

TUD8700SQ1 02 – CONTROL PANEL PARTS

TUD8700SQ1 02 – CONTROL PANEL PARTS

Written by

in

TUD8700SQ1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert)
2Clip, BI-Metal
3Cover Control Shield Assembly
4WP8524471 Whirlpool Dishwasher Actuator
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP3400412 Whirlpool Dishwasher Screw
7WPW10348409 Whirlpool Screw
8WP8269323 Whirlpool Dishwasher Handle
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
11WP8269209 Whirlpool Door Switch
