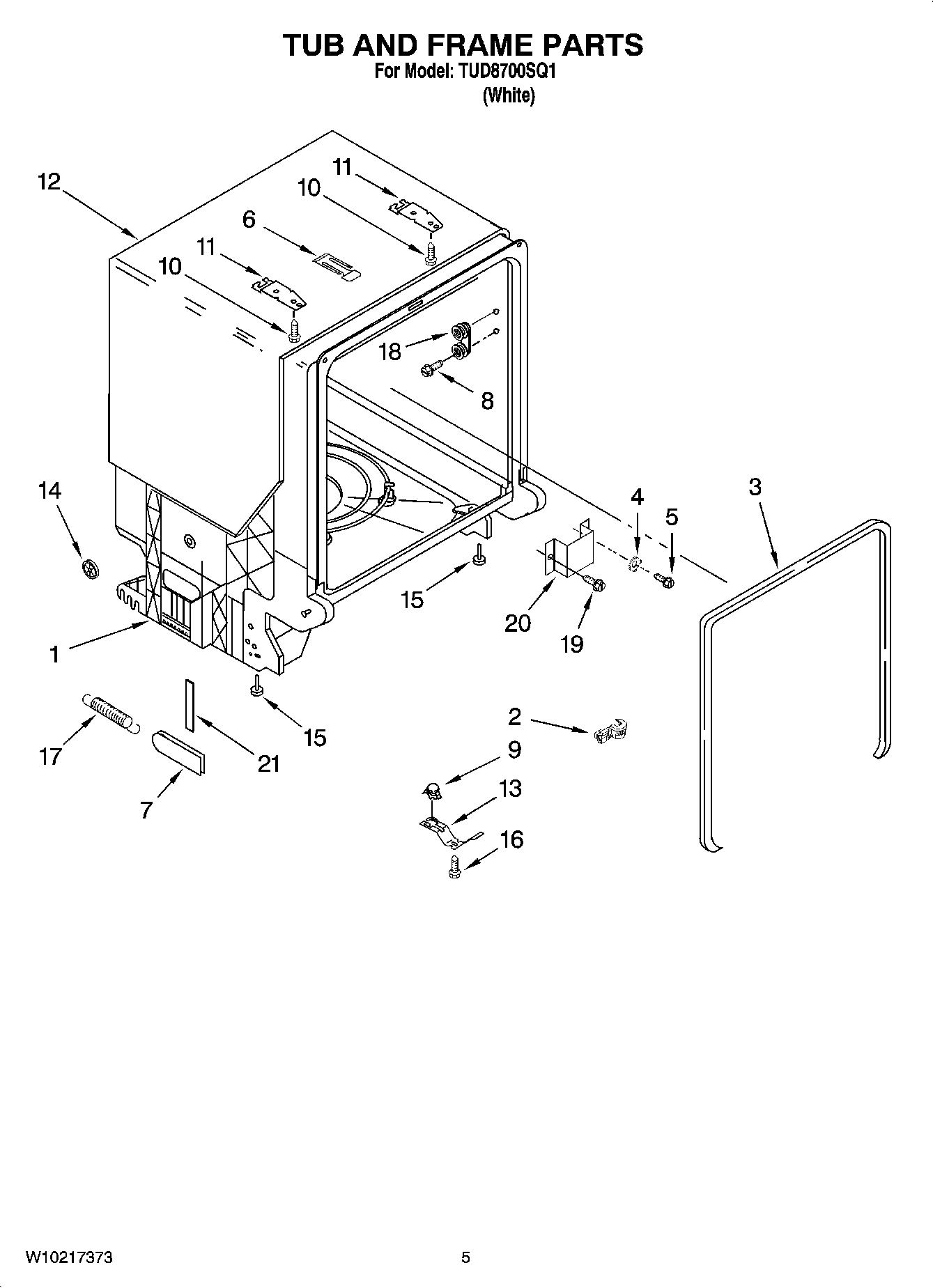

TUD8700SQ1 05 – TUB AND FRAME PARTS

Products

Position	Product
1	W10413848 Whirlpool Dishwasher Tub
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4	WP3378128 Whirlpool Dishwasher Washer
5	WP3400014 Whirlpool Dishwasher Screw
6	WP8580309 Whirlpool Dishwasher Strike
7	WP8268990 Whirlpool Dishwasher Door Spring Bushing
8	W10817436 Whirlpool Screw
9	WP661566 Whirlpool High Limit Thermostat
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	W11086533 Whirlpool Dishwasher Shield
13	W10539489 Whirlpool Dishwasher Bracket-Stat
14	WP8269831 Whirlpool Dishwasher Wheel
15	8193716 Whirlpool Leveling Leg
16	WP304231 Whirlpool Dishwasher Screw
17	WPW10337934 Whirlpool Spring Assembly
18	WP8270016 Whirlpool Dishwasher Tub Wheel
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
21	WP8268961 Whirlpool Friction Pad
