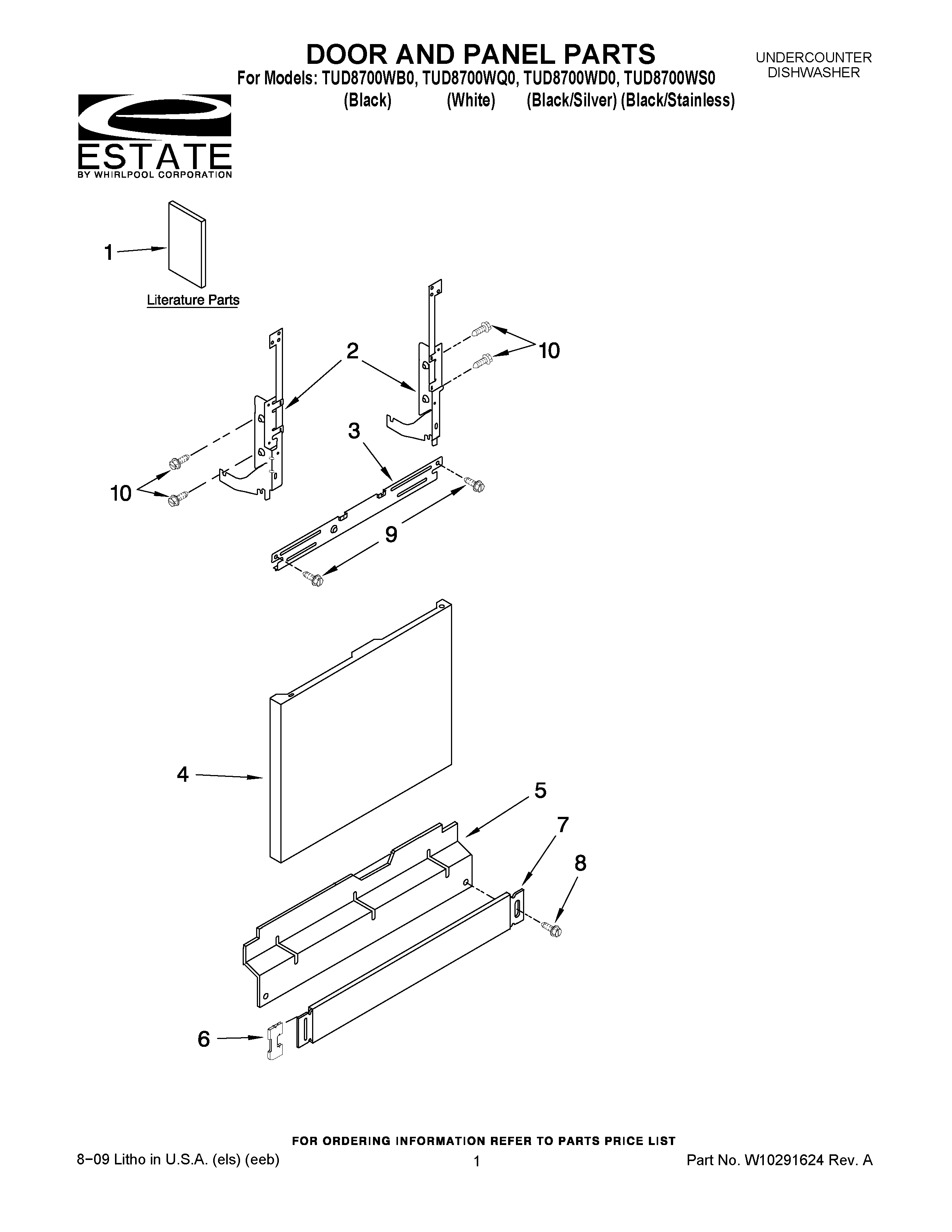

TUD8700WD0 01 – DOOR AND PANEL PARTS

TUD8700WD0 01 – DOOR AND PANEL PARTS

Written by

in

TUD8700WD0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Guide, Use & Care Spanish
1Guide, Use & Care English/French
1Instructions, Installation
1Tech Sheet
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W10301571 Whirlpool Dishwasher Panel
4Panel Front (White)
4W10301577 Whirlpool Outer Door Panel
4PANEL FRONT (ULTIMATE SILVER)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WP8269016 Whirlpool Clip Assembly
7WP8573287 Whirlpool Dishwasher Toe Panel
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WP302868 Whirlpool Screw
9SCREW
10WPW10109200 Whirlpool Screw
