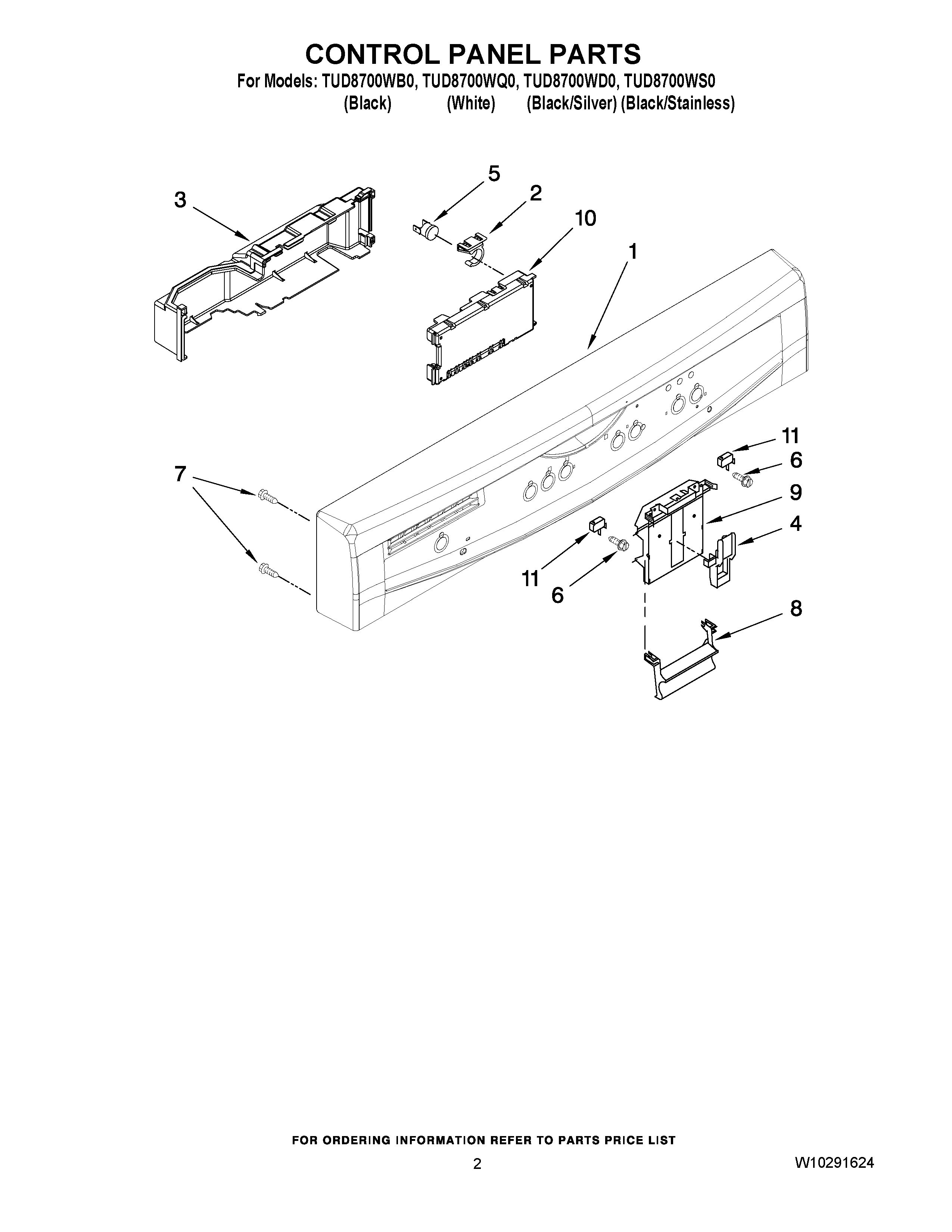

TUD8700WD0 02 – CONTROL PANEL PARTS

TUD8700WD0 02 – CONTROL PANEL PARTS

Written by

in

TUD8700WD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASM (BLACK)
1CONSOLE ASM (WHITE)
2Clip, BI-Metal
3Cover Control Shield Assembly
4WP8524471 Whirlpool Dishwasher Actuator
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP3400412 Whirlpool Dishwasher Screw
7WPW10348413 Whirlpool Dishwasher Screw
8CABINET (NOT A SERVICEABLE PART)
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
11WP8269209 Whirlpool Door Switch
