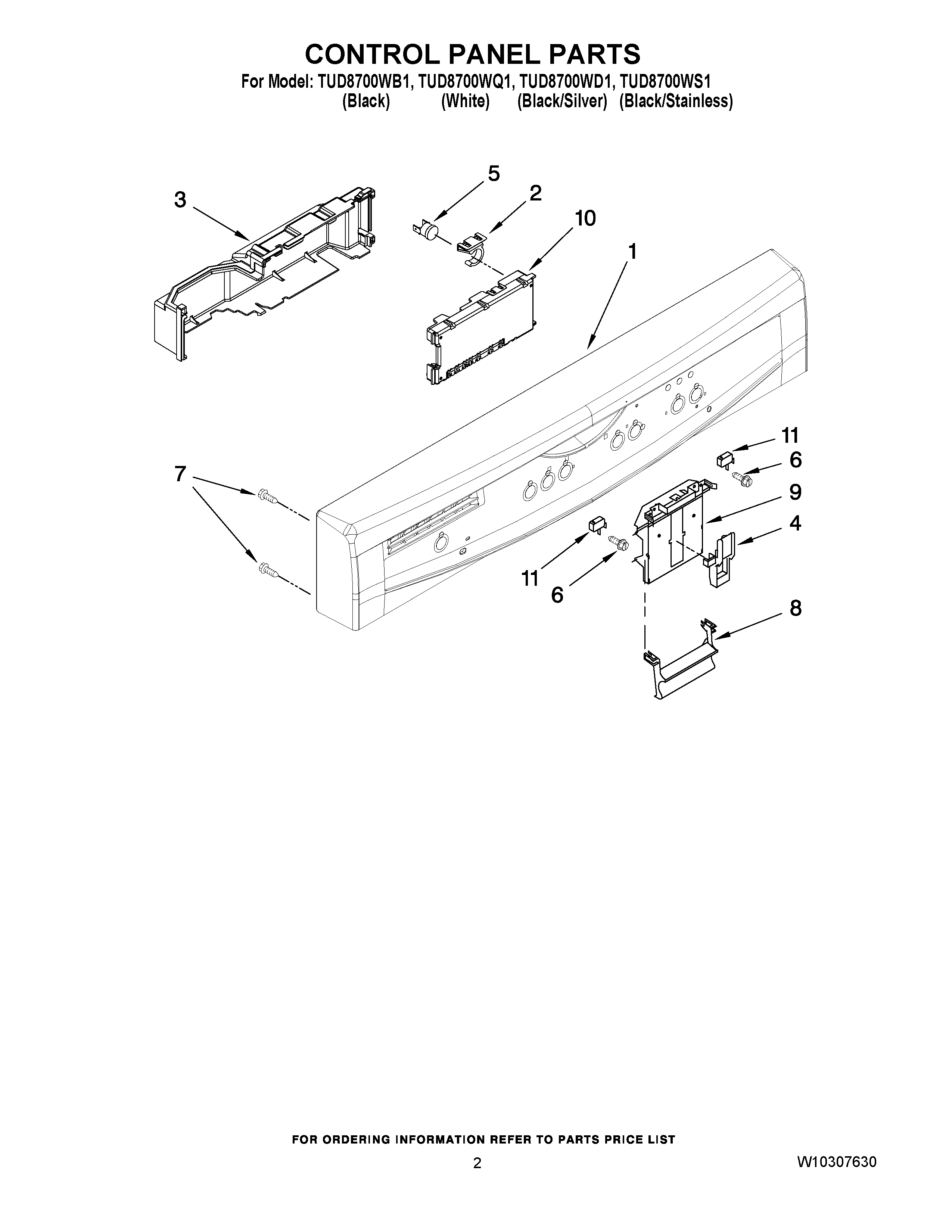

TUD8700WQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASM (BLACK)
1	CONSOLE ASM (WHITE)
2	Clip, BI-Metal
3	Cover Control Shield Assembly
4	WP8524471 Whirlpool Dishwasher Actuator
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WP3400412 Whirlpool Dishwasher Screw
7	WPW10348413 Whirlpool Dishwasher Screw
8	CABINET (NOT A SERVICEABLE PART)
9	8193882 Whirlpool Dishwasher Primary Latch Bolt
10	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
11	WP8269209 Whirlpool Door Switch
