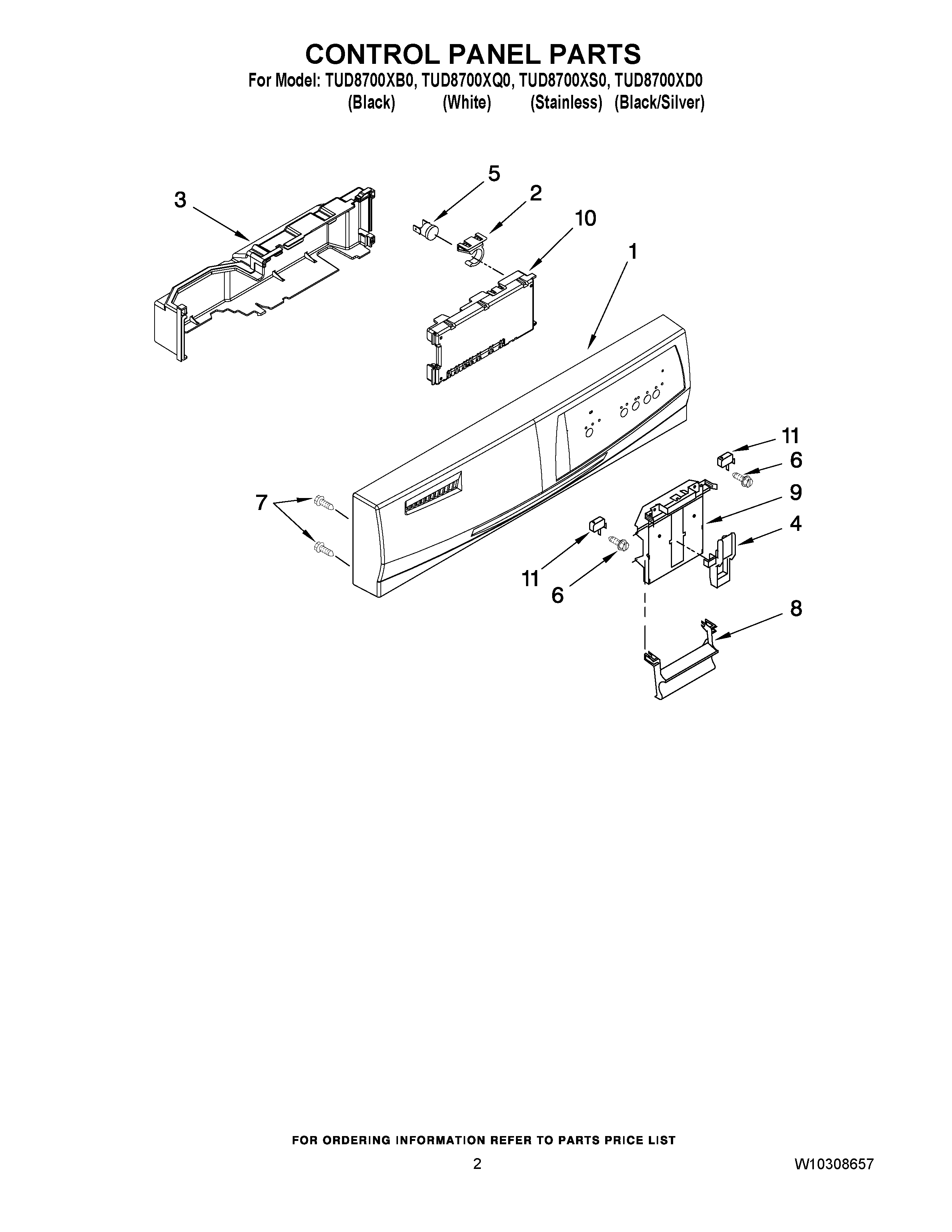

TUD8700XD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
2Clip, BI-Metal
3Cover Control Shield Assembly
4WP8524471 Whirlpool Dishwasher Actuator
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP3400412 Whirlpool Dishwasher Screw
7WPW10348413 Whirlpool Dishwasher Screw
8WP8269323 Whirlpool Dishwasher Handle
98193882 Whirlpool Dishwasher Primary Latch Bolt
10W11202742 Whirlpool Dishwasher Electronic Control Board
11WP8269209 Whirlpool Door Switch
