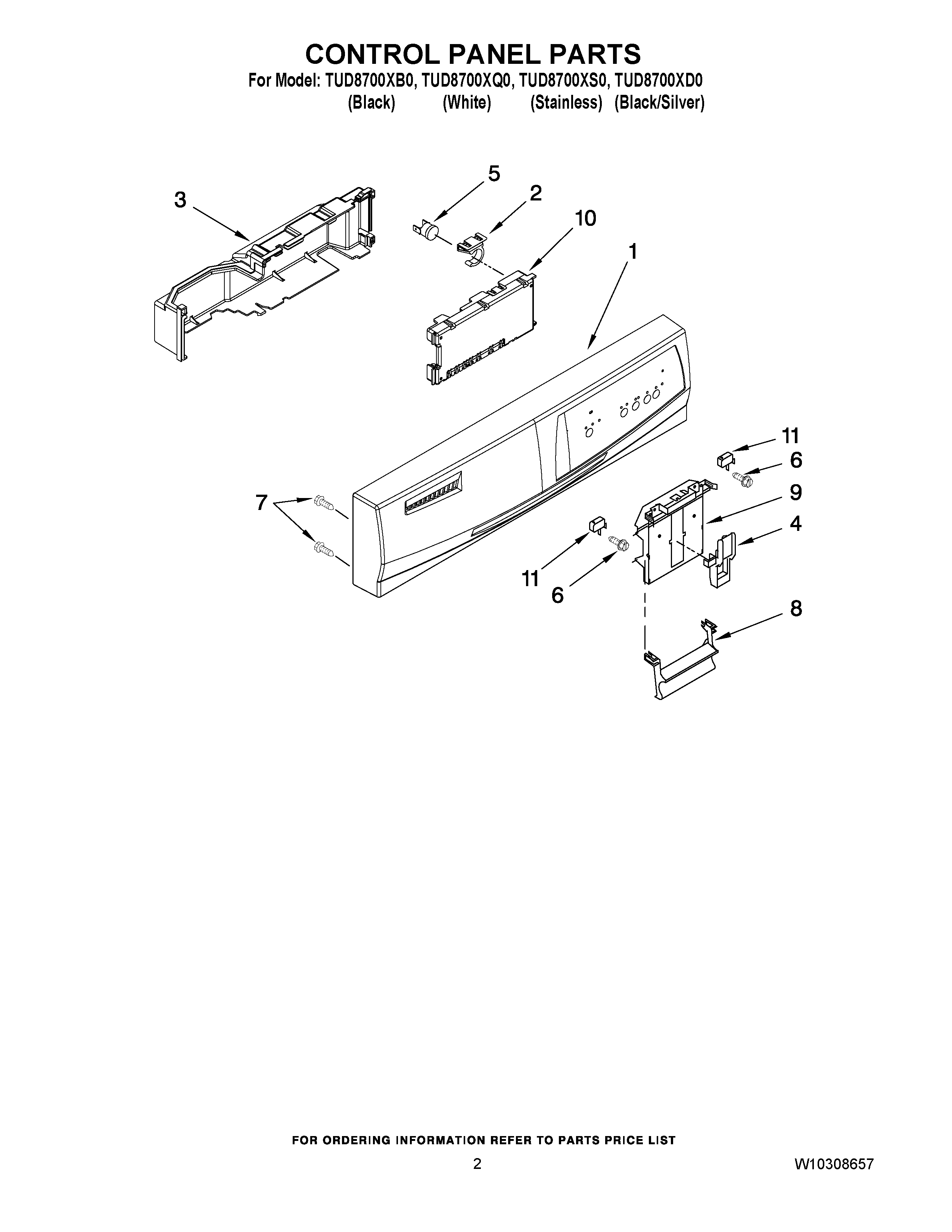

TUD8700XS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
1	CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
2	Clip, BI-Metal
3	Cover Control Shield Assembly
4	WP8524471 Whirlpool Dishwasher Actuator
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WP3400412 Whirlpool Dishwasher Screw
7	WPW10348413 Whirlpool Dishwasher Screw
8	WP8269323 Whirlpool Dishwasher Handle
9	8193882 Whirlpool Dishwasher Primary Latch Bolt
10	W11202742 Whirlpool Dishwasher Electronic Control Board
11	WP8269209 Whirlpool Door Switch
