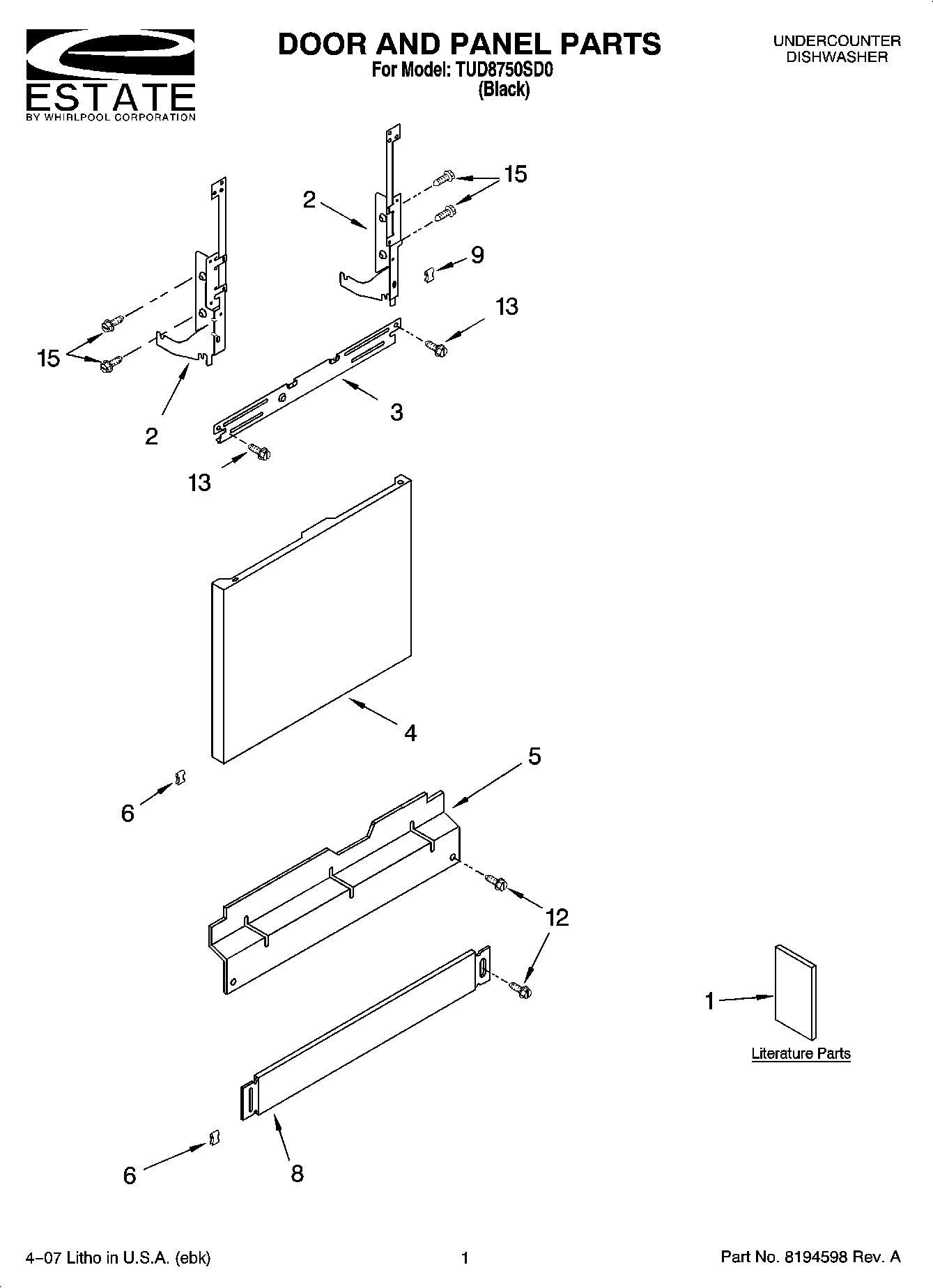

TUD8750SD0 01 – DOOR AND PANEL PARTS

TUD8750SD0 01 – DOOR AND PANEL PARTS

Written by

in

TUD8750SD0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Tech Sheet
1Energy Guide
1Instructions, Installation
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
9Clip, Grounding
12WP302868 Whirlpool Screw
13SCREW
15WPW10109200 Whirlpool Screw
