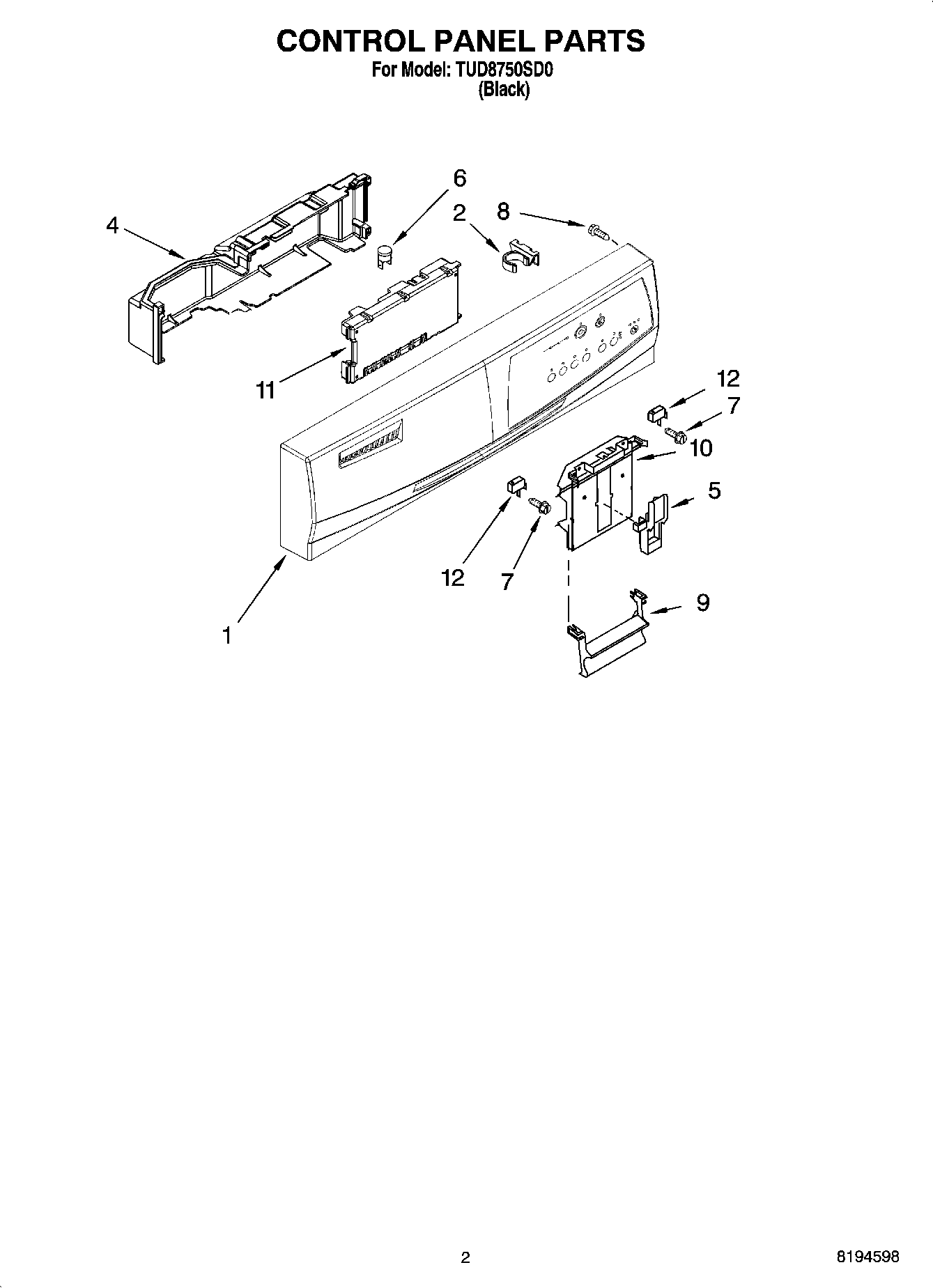

TUD8750SD0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. (Includes Active Overlay & Insert)
2	Clip, BI-Metal
4	Cover Control Shield Assembly
5	WP8524471 Whirlpool Dishwasher Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WP3400412 Whirlpool Dishwasher Screw
8	WPW10348409 Whirlpool Screw
9	WP8269323 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12	WP8269209 Whirlpool Door Switch
