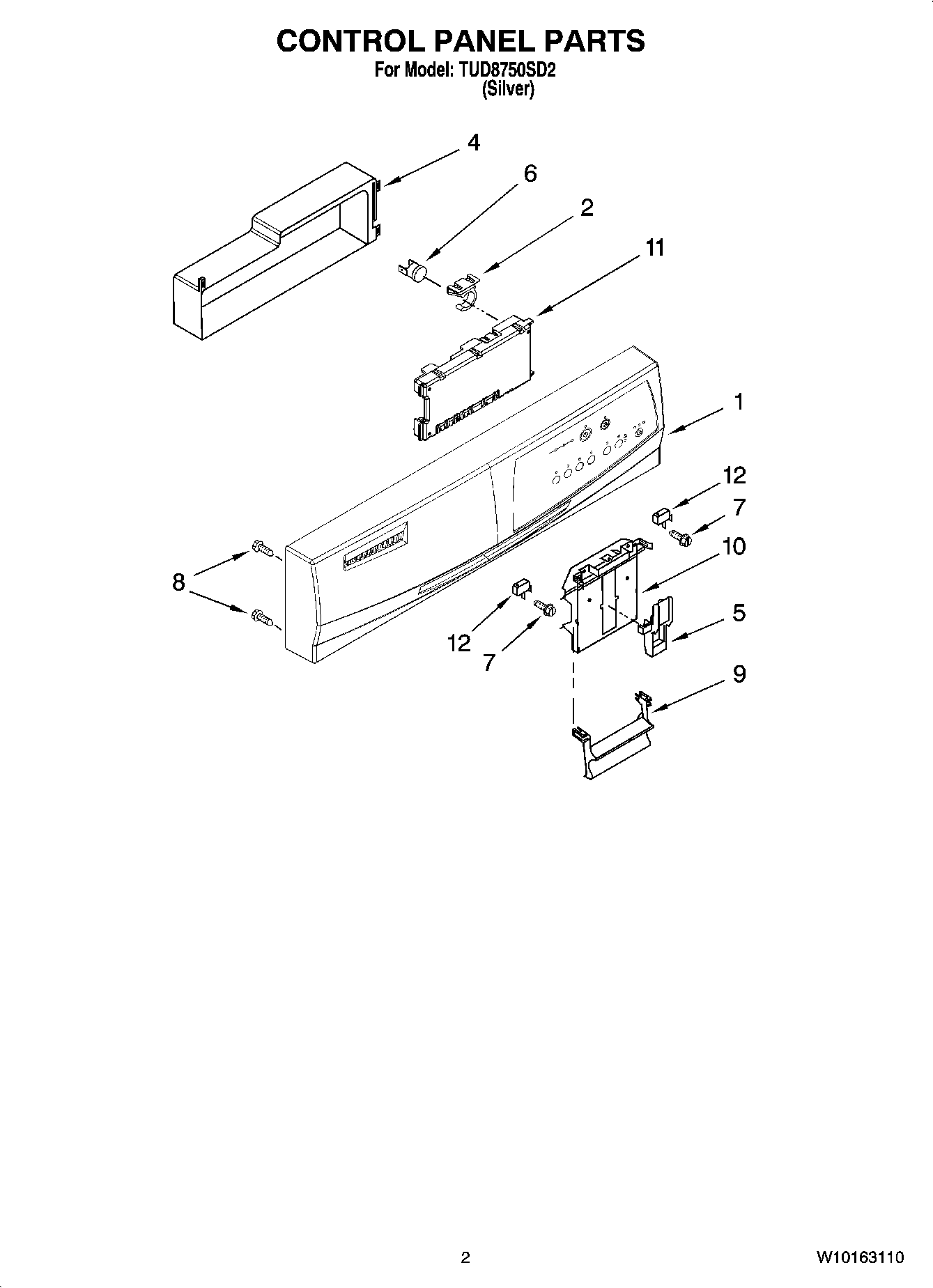

TUD8750SD2 02 – CONTROL PANEL PARTS

TUD8750SD2 02 – CONTROL PANEL PARTS

Written by

in

TUD8750SD2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert)
2Clip, BI-Metal
4Cover Control Shield Assembly
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
9WP8269323 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
12WP8269209 Whirlpool Door Switch
