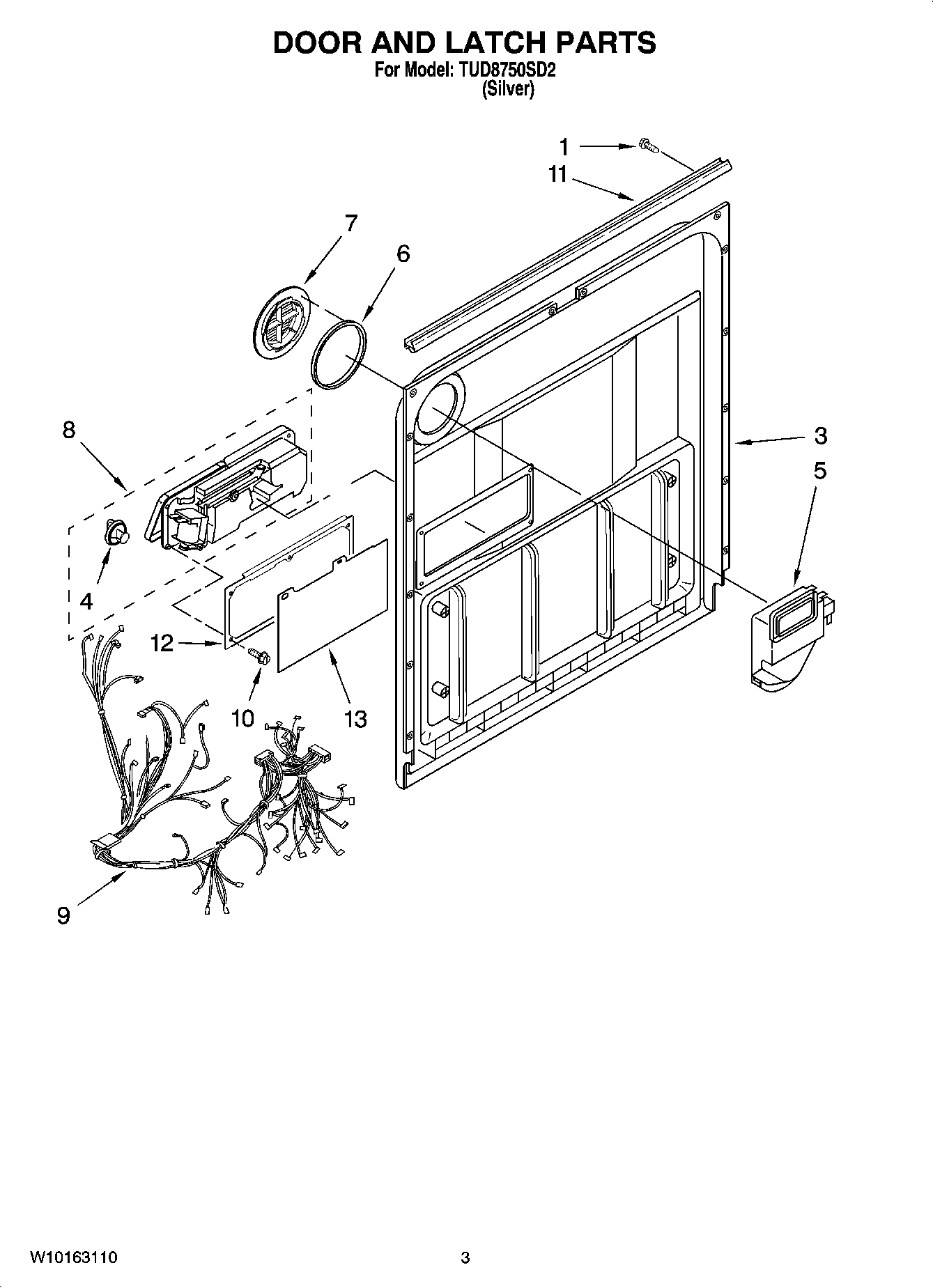

TUD8750SD2 03 – DOOR AND LATCH PARTS

TUD8750SD2 03 – DOOR AND LATCH PARTS

Written by

in

TUD8750SD2 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
3WP3378179 Whirlpool Inner Door Panel
4WP8558307 Whirlpool Rinse Aid Dispenser Cap
5WP8558980 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7Deflector, Vent (Also Order Item 6)
8WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9Wiring Harness Main
10WPW10177098 Whirlpool Dishwasher Screw
11WP8269296 Whirlpool Dishwasher Seal
12WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
13WP8531865 Whirlpool Dishwasher Door Shield
