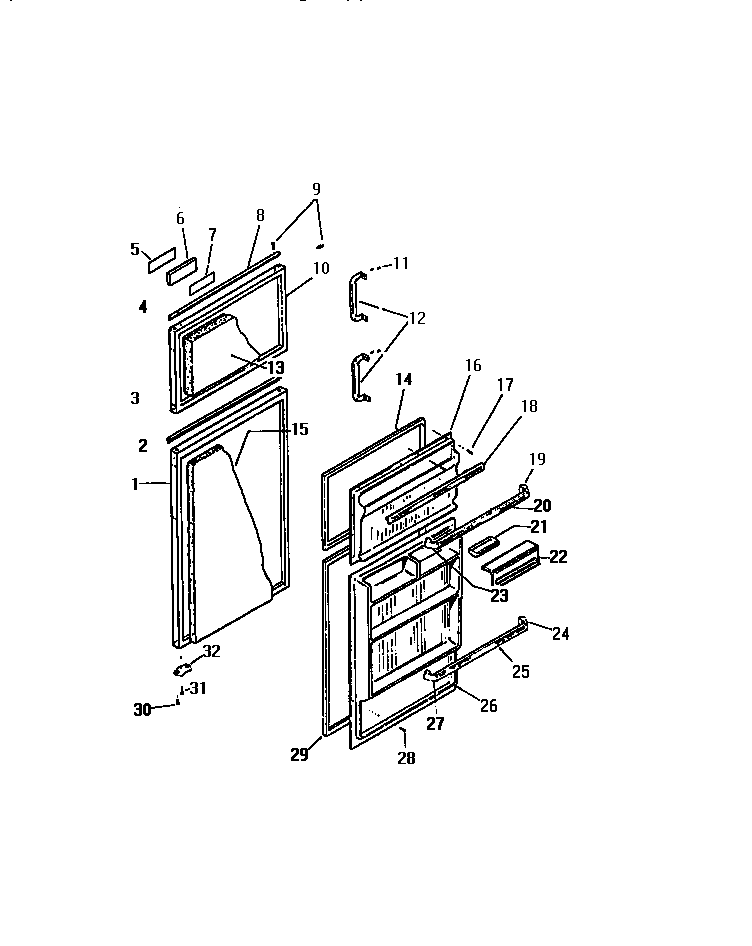

TUK160AN6F 02 – DOOR

TUK160AN6F 02 – DOOR

Written by

in

TUK160AN6F 02 – DOOR

Products

PositionProduct
*35010241710601 Frigidaire Refrigerator Screw
*35009TAPPING, PLATE (2)
*35020BUTTON, PLUG, WATER INLET
*35012BUTTON, PLUG, DOOR TRIM (4)
*35014OWNERS GUIDE & WARRANTY
*35013HARNESS, WIRING
*35011WCI G101747
*35016BUTTON, PLUG, LINER (2)
*35017BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*35015WCI G186006
*35021WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
*35026WCI G169022-10
*35030WCI G162977-10
*35034WCI G167543
*35029WCI G162892-07
*35018BUTTON, PLUG, ICE MAKER HARNESS
*35019TAPPING PLATE (2)
*35023WCI G155630-10
*35022WCI G141624-10
1WCI G183447-10
2ATRIM, DOOR, SIDE, LH, PC
2TRIM, DOOR, SIDE, RH, PC
4TRIM, DOOR, SIDE, LH, FC
4ATRIM, DOOR, SIDE, RH, FC
5LABEL, NAMEPLATE
6WCI G172586
7WCI G149874-04
8TRIM, TOP, FC
10WCI G183445-10
11SCREW, HANDLE MOUNTING (8)
12HANDLE, DOOR PC & FC (2)
13INSULATION, DOOR
14GASKET-FC DOOR
15INSULATION, LOWER DOOR
16WCI G178474-02
18ATYPE, TRIM
18TRIM, RACK
20FRONT RACK, FC
215308000716 Frigidaire Refrigerator Dish
22WCI G179096-03
24SUPPORT, RACK, RH, (PC) (2)
25FRONT, RACK, PC
26WCI G179083-02
27SUPPORT, RACK, LH (PC) (2)
285304455651 Frigidaire Refrigerator Screw
29218730603 Frigidaire Door Gasket
30BEARING, HINGE (3)
31SCREW, STOP MOUNTING (2)
32STOP, DOOR. PC & FC (2)
