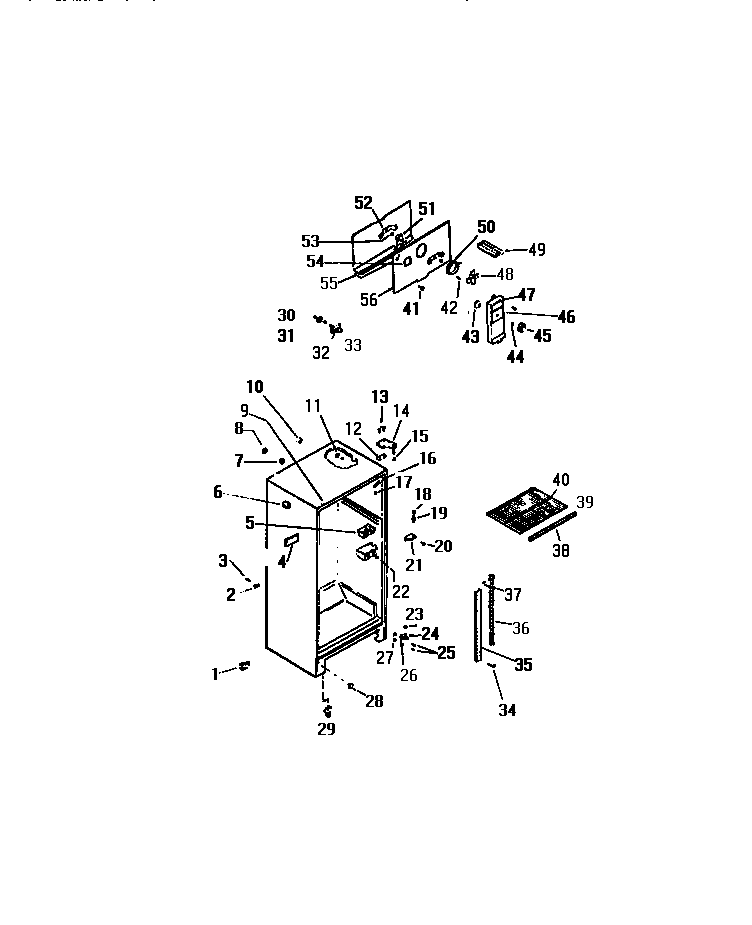

TUK160AN6T 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*35002	COVER HINGE, WHEAT
*35005	WCI G164571
1A	BOLT ROLLER (2)
1	ROLLER, REAR (2)
2	WCI G101747
3	5304455651 Frigidaire Refrigerator Screw
4	PAD, FOAM (2)
5	DEFLECTOR AIR
6	SPACER, FREEZER (2)
6A	SCREW, CHANNEL MOUNTING (3)
7	WCI G174733
8	WCI G174734
9	WCI G174747-09
10	TUBE, INSULATION (2)
11	WCI G163669
12	WCI G183861
13	241710601 Frigidaire Refrigerator Screw
14	BRACKET, TOP HINGE
16	WCI G179684-09
17A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
17	5304509705 Frigidaire Refrigerator Grommet
19	WCI G142220
20	SCREW, BRACKET MOUNTING (4)
21	BRACKET, HINGE CENTER
22	WCI G162178
23	WCI G103903
24	5303001321 Frigidaire Refrigerator Lower Hinge Pin
26	BRACKET, HINGE, LOWER
27	SHIM, HINGE
28	WCI G166912
29A	SPRING-ROLLER (2)
29B	BOLT-ROLLER (2)
29C	SUPPORT, ROLLER (2)
29	ROLLER FRONT, ADJUSTABLE (2)
30	WCI G179863
31	TUBE, DRAIN
32	SPOUT DRAIN TUBE
33	PIN PUSH SPOUT (2)
35	CHANNEL, CENTER SHELF, MOUNTING
36	CHANNEL, SHELF (2)
37	5304455852 Frigidaire Refrigerator Screw
38	TRIM, SHELF, FREEZER
39	WCI G166495-01
40	WCI G177059-01
42	5304455650 Frigidaire Refrigerator Screw
43	DAMPER FAN COVER
44	NUT, DAMPER MOUNTING
45	KNOB, DAMPER CONTROL
46	LABEL, FAN COVER
47	WCI G163061-40
48	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
49	215667501 Frigidaire Refrigerator Ice Tray Primary
50	RING, FAN ORIFICE
50A	NUT, ORIFICE (2)
51A	BRACKET, FRONT MOTOR MOUNTING
51	5300158289 Frigidaire Evaporator Fan Motor
52	BRACKET, REAR MOTOR MOUNTING
53	G187559 Frigidaire Refrigerator Bushing
54	BUTTON DECORATIVE PLUG
55	TROUGH-DRAIN
56	COVER-COIL
