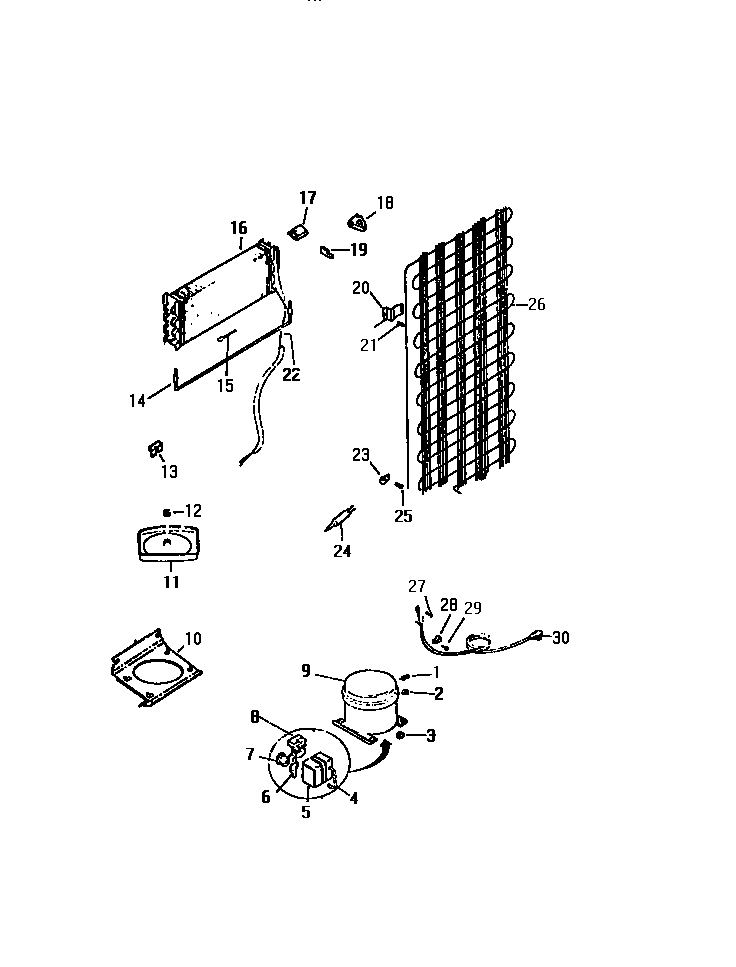

TUK160AN6W 05 – SYSTEM

Products

Position	Product
*35007	WCI G179024
1	CLIP, COMPRESSOR MOUNTING (4)
2	WASHER, COMPRESSOR MOUNTING (4)
3	218513300 Frigidaire Refrigerator Compressor Mount Grommet
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	CLIP, OVERLOAD
7	OVERLOAD
8	WCI G150618-32
9	COMPRESSOR
10	PLATE, COMPRESSOR MOUNTING
11	DEFROST PAN & NUT
12	NUT, LOCK
13	BLOCK, EVAPORATOR, LH
14	HEATER, DEFROST
15	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
16	WCI G176806
17	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
18	BLOCK, EVAPORATOR, RH
19	PLUG, EVAPORATOR INSULATION BLOCK, R H
20	BRACKET-CONDENSER MOUNTING (4)
22	HEAT EXCHANGER
24	5303305677 Frigidaire Replacement Filter Dryer Filters
26	WCI G178225
27	5308000039 Frigidaire Refrigerator Screw
28	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
29	5304455651 Frigidaire Refrigerator Screw
30	CORD, SERVICE
