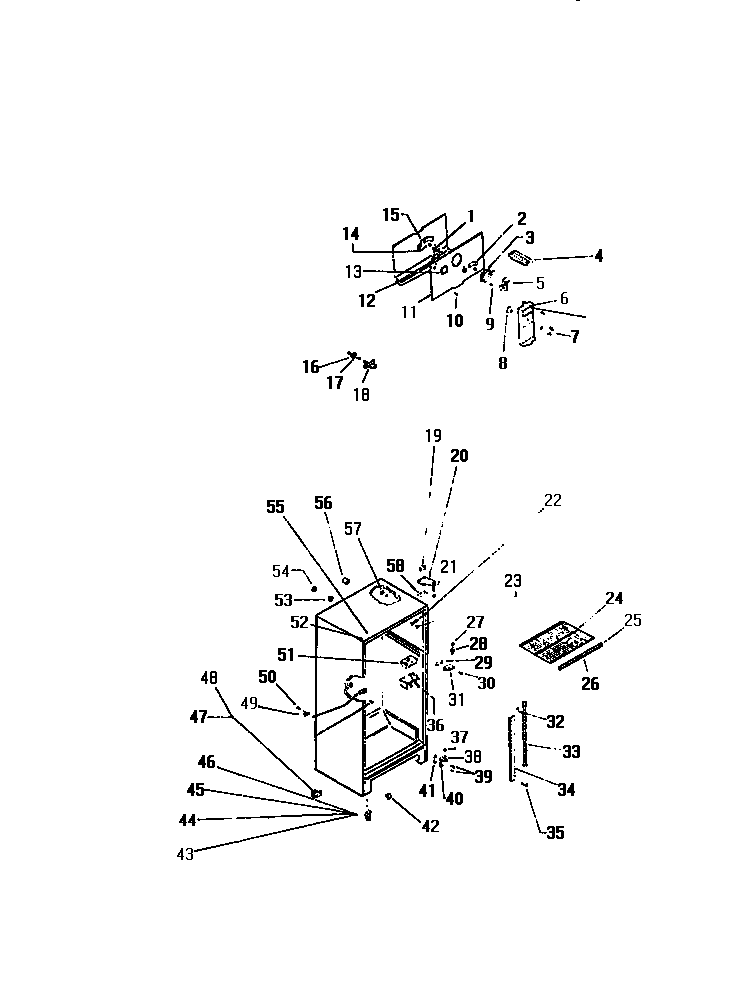

TUK180AN6D 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*28290	WCI G164571
*28292	NUT, DAMPER MOUNTING
*28289	COVER, TOP HINGE, ALMOND
1	5300158289 Frigidaire Evaporator Fan Motor
2	BRACKET, FRONT MOTOR MOUNTING
3A	NUT, ORIFICE (2)
3	RING, FAN ORIFICE
4	215667501 Frigidaire Refrigerator Ice Tray Primary
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI G163061-40
7	KNOB, DAMPER CONTROL
8	DAMPER FAN COVER
9	5304455650 Frigidaire Refrigerator Screw
11	WCI G177529
12	WCI G177534
14	G187559 Frigidaire Refrigerator Bushing
15	BRACKET, REAR MOTOR MOUNTING
16	WCI G179863
17	TUBE, DRAIN
18	SPOUT DRAIN TUBE
19	241710601 Frigidaire Refrigerator Screw
20	BRACKET, TOP HINGE
22	TRIM-CORNER, ALMOND (4)
23	5304509705 Frigidaire Refrigerator Grommet
23A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
24	WCI G177059-02
25	WCI G166495-01
26	TRIM, SHELF, FREEZER
28	WCI G142220
29	SHIM, HINGE
30	SCREW, BRACKET MOUNTING (4)
31	BRACKET, HINGE CENTER
32	5304455852 Frigidaire Refrigerator Screw
33	CHANNEL, SHELF (2)
34	CHANNEL, CENTER SHELF, MOUNTING
35	SCREW, CHANNEL MOUNTING (3)
36	WCI G162178
37	WCI G103903
38	5303001321 Frigidaire Refrigerator Lower Hinge Pin
40	BRACKET, HINGE, LOWER
41	SHIM, HINGE
42	WCI G166912
43A	WASHER
43	SUPPORT, ROLLER (2)
44	BOLT-ROLLER (2)
45	SPRING-ROLLER (2)
46	ROLLER FRONT, ADJUSTABLE (2)
47	BOLT ROLLER (2)
48A	5308000039 Frigidaire Refrigerator Screw
48	ROLLER, REAR (2)
49	WCI G101747
50	5304455651 Frigidaire Refrigerator Screw
51	DEFLECTOR AIR
52	BUTTON DECORATIVE PLUG
53	WCI G174733
54	WCI G174734
55	WCI G174747-11
56	TUBE, INSULATION (2)
57	WCI G163669
58	WCI G183861
