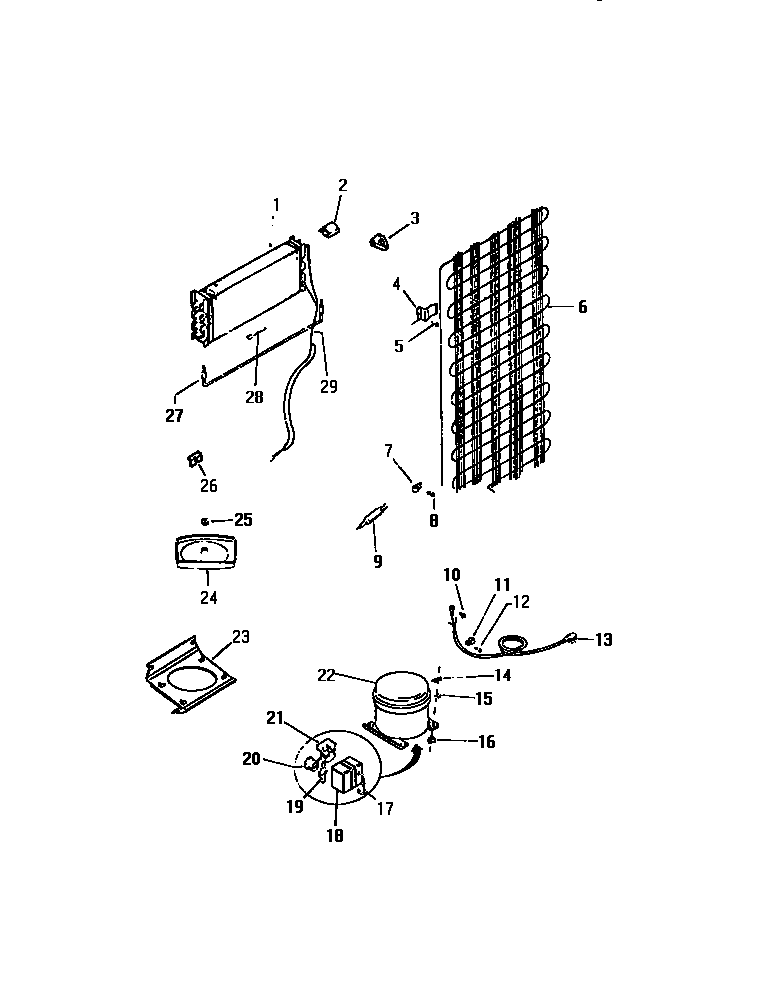

TUK180AN6F 05 – SYSTEM

Products

Position	Product
*28294	WCI G179024
*28293	PLUG, EVAPORATOR INSULATION BLOCK, R H
1	EVAPORATOR
2	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
3	BLOCK, EVAPORATOR, RH
4	BRACKET-CONDENSER MOUNTING (4)
6	WCI G162739
7	WCI G101747
8A	WASHER
9	5303305677 Frigidaire Replacement Filter Dryer Filters
10	5308000039 Frigidaire Refrigerator Screw
11	WCI K27669
12	5304455651 Frigidaire Refrigerator Screw
13	CORD, SERVICE
14	CLIP, COMPRESSOR MOUNTING (4)
15	WASHER, COMPRESSOR MOUNTING (4)
16	218513300 Frigidaire Refrigerator Compressor Mount Grommet
17	5303006412 Frigidaire Refrigerator Cover Mounting Strap
19	CLIP, OVERLOAD
20	WCI G176002
21	WCI G182225-03
22	COMPRESSOR
23	PLATE, COMPRESSOR MOUNTING
24	DEFROST PAN & NUT
25	NUT, LOCK
26	BLOCK, EVAPORATOR, LH
27	5317842502 Frigidaire Defrost Heater
28	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
29	HEAT EXCHANGER
