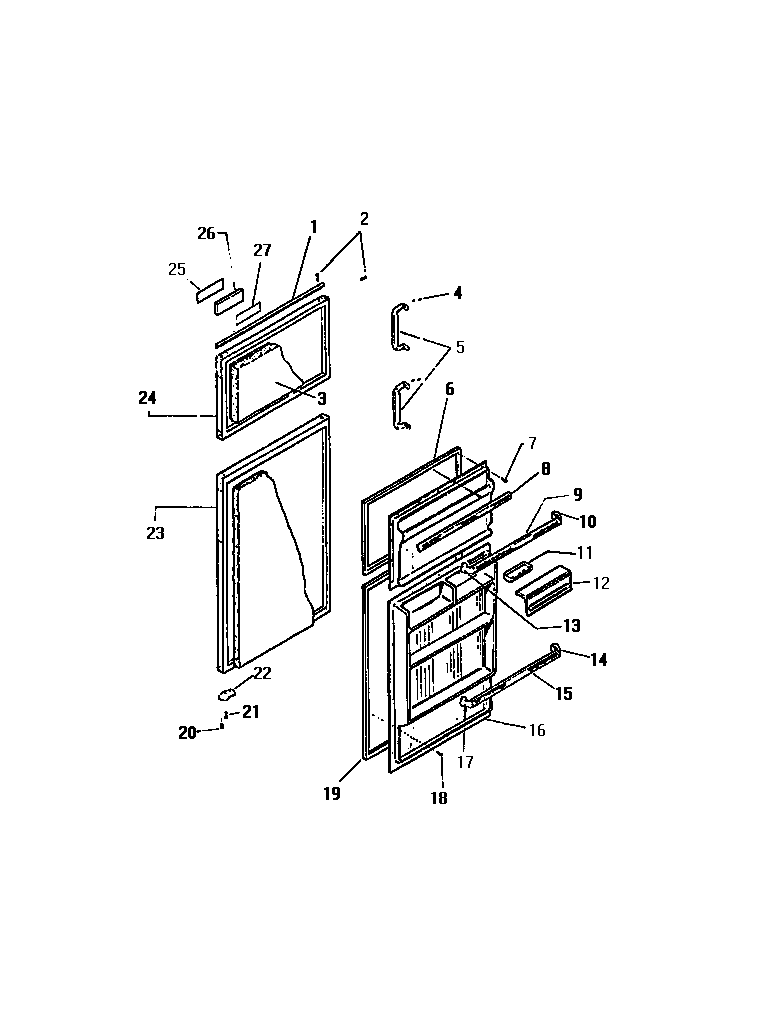

TUK180AN6V 02 – DOOR

Products

Position	Product
*28295	WCI G183100-19
*28302	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*28301	BUTTON, PLUG, LINER (2)
*28284	WCI G178289-02
*28300	WCI G164571
*28299	HARNESS, WIRING
*28298	OWNERS GUIDE & WARRANTY
*28297	SERVICE DATA SHEET
*28296	BUTTON, PLUG, DOOR TRIM (4)
*28280	TRIM, DOOR, SIDE, RH, FC
*28281	TRIM, DOOR, SIDE, LH, FC
*28282	TRIM, DOOR, SIDE, LH, PC
*28283	TRIM, DOOR, SIDE, RH, PC
*28303	BUTTON, PLUG, ICE MAKER HARNESS
*28304	TAPPING PLATE (2)
*28305	BUTTON, PLUG, WATER INLET
*28307	WCI G149874-07
*28311	WCI G169022-08
*28316	WCI G162977-08
*28306	SCREW (5)
1	WCI G170079-01
3	INSULATION, UPPER EXTERIOR DOOR
3A	INSULATION, LOWER EXTERIOR DOOR
4	SCREW, HANDLE MOUNTING (8)
5	HANDLE, DOOR PC & FC (2)
6	FC DOOR GASKET, MAGNETIC
8	TRIM, RACK (ORDER TAPE)
8A	WCI G141624-24
9	WCI G162939-28
11	5308000716 Frigidaire Refrigerator Dish
12	WCI G179225-03
14	SUPPORT, RACK, RH, (PC) (2)
15	WCI G162939-29
16	WCI G179081-02
17	SUPPORT, RACK, LH (PC) (2)
18	5304455651 Frigidaire Refrigerator Screw
19	PC DOOR GASKET, MAGNETIC
20	BEARING, HINGE (3)
21	SCREW, STOP MOUNTING (2)
22	STOP, DOOR. PC & FC (2)
23	WCI G183462-08
24	WCI G183460-08
25	LABEL, NAMEPLATE
26	WCI G172586
27	WCI G149874-04
