TUK210AN5T 05 – SYSTEM

TUK210AN5T 05 – SYSTEM

Written by

in

TUK210AN5T 05 – SYSTEM

Products

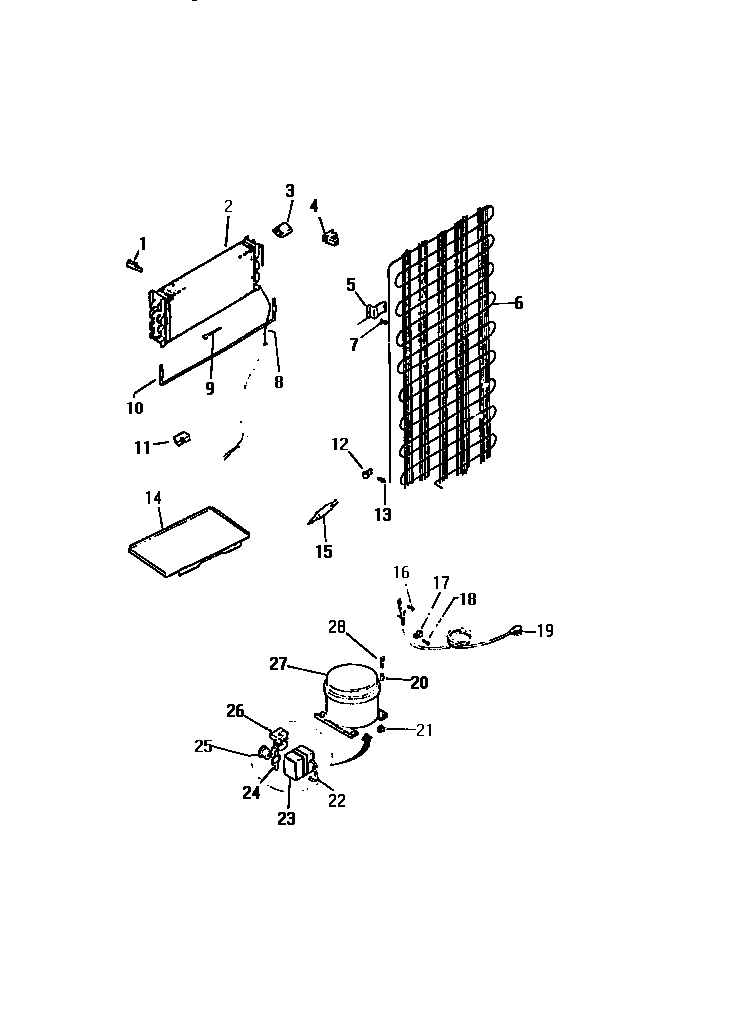

PositionProduct
*22081WCI G176210
1PLUG – EVAP. INS. L.H.
2EVAPORATOR
35303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
4WCI G163099
5BRACKET, COND. MTG (4)
6WCI G183612
8WCI G176594
95308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
105317842502 Frigidaire Defrost Heater
11BLOCK, EVAPORATOR, LH
14DEFROST PLATE (NON-ILLUSTRATED)
155303305677 Frigidaire Replacement Filter Dryer Filters
165308000039 Frigidaire Refrigerator Screw
175303001199 Frigidaire Refrigerator Wiring Harness Clamp
185304455651 Frigidaire Refrigerator Screw
19CORD, SERVICE
20SLEEVE COMP MTG (3)
21218513300 Frigidaire Refrigerator Compressor Mount Grommet
225303006412 Frigidaire Refrigerator Cover Mounting Strap
24CLIP, OVERLOAD
25WCI G166052
26RELAY (NON-ILLUSTRATED)
27WCI G183613
28SCREW – 1/4-20 (3) COMP. MTG.
