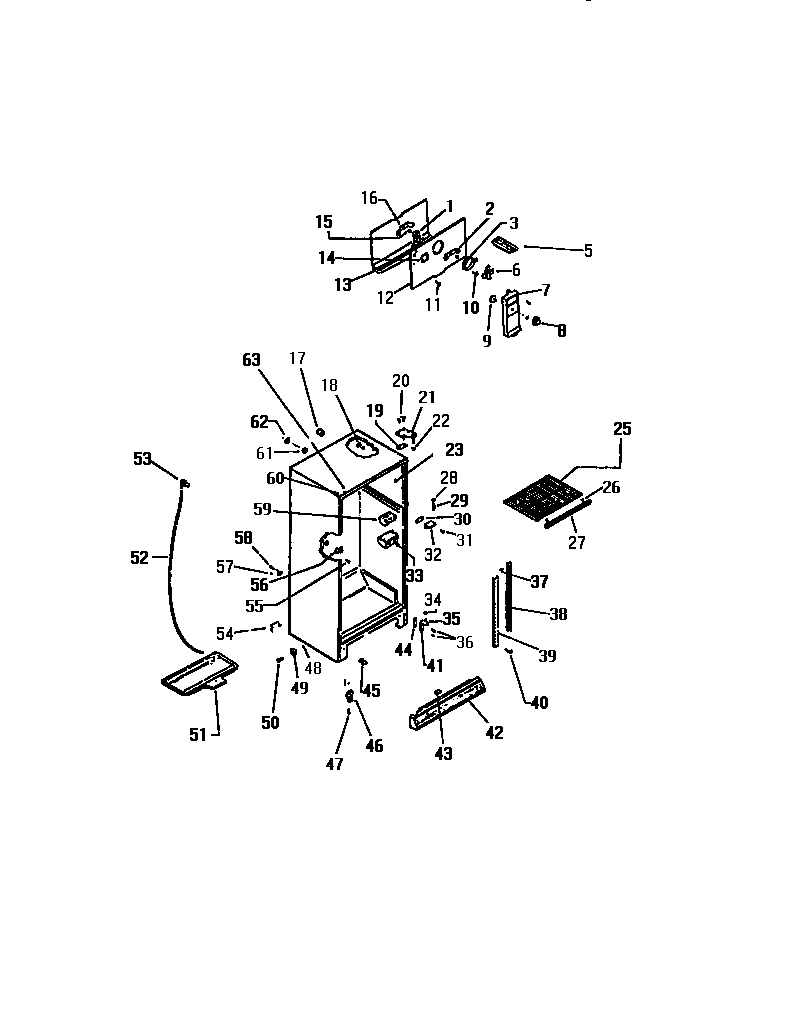

TUK210AN5V 03 – CABINET W/ FAN ASSEMBLY

Products

PositionProduct
*221145304455651 Frigidaire Refrigerator Screw
*22110COVER, TOP HINGE, AVOCADO
*22115WCI G164571
*22112WCI G179267
*22113WCI G179266
15300158289 Frigidaire Evaporator Fan Motor
2BRACKET, FRONT MOTOR MOUNTING
3RING, FAN ORIFICE
5215667501 Frigidaire Refrigerator Ice Tray Primary
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
7WCI G162512-22
8KNOB, DAMPER CONTROL
9DAMPER FAN COVER
12ANUT, ORIFICE (2)
12WCI G162050-02
13WCI G170071
15G187559 Frigidaire Refrigerator Bushing
16BRACKET, REAR MOTOR MOUNTING
17TUBE, INSULATION (2)
18WCI G163669
19WCI G183861
20241710601 Frigidaire Refrigerator Screw
21BRACKET, TOP HINGE
22WASHER, NYLON
23ASCREW – SUPPORT TO LINER (8)
23SUPPORT, SHELF (8)
25WCI G163002-02
26CLIP-TRIM (NON-ILLUSTRATED)
27TRIM-CLIP-ON (12)
29WCI G142220
30SHIM, HINGE
31SCREW, BRACKET MOUNTING (4)
32WCI G162384
33WCI G162178
34WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35WCI G142361
36SCREW – 1/4 X 1 (2)
375304455852 Frigidaire Refrigerator Screw
38CHANNEL, SHELF (2)
39CHANNEL, CENTER SHELF, MOUNTING
40WCI G163989
41BRACKET-LOWER HINGE
42WCI G161905-06
43PLUG – LOWER GRILLE
44SHIM, HINGE
45WCI G162994
46ROLLER ASSEMBLY – FRONT (2)
47BOLT, HOUSING TO FRONT RAIL (2)
48NUT, DAMPER MOUNTING
49ROLLER (2)
50WCI G162809
51PAN, DEFROST
52WCI G155529-01
53ELBOW, DRAIN
54BRACKET, DRAIN TUBE
555304455650 Frigidaire Refrigerator Screw
56SPOUT DRAIN TUBE
57240396801 Frigidaire Refrigerator Tube Clamp
585308000039 Frigidaire Refrigerator Screw
59DEFLECTOR AIR
60BUTTON DECORATIVE PLUG
61WCI G174733
62WCI G174734
63WCI G174747-08
