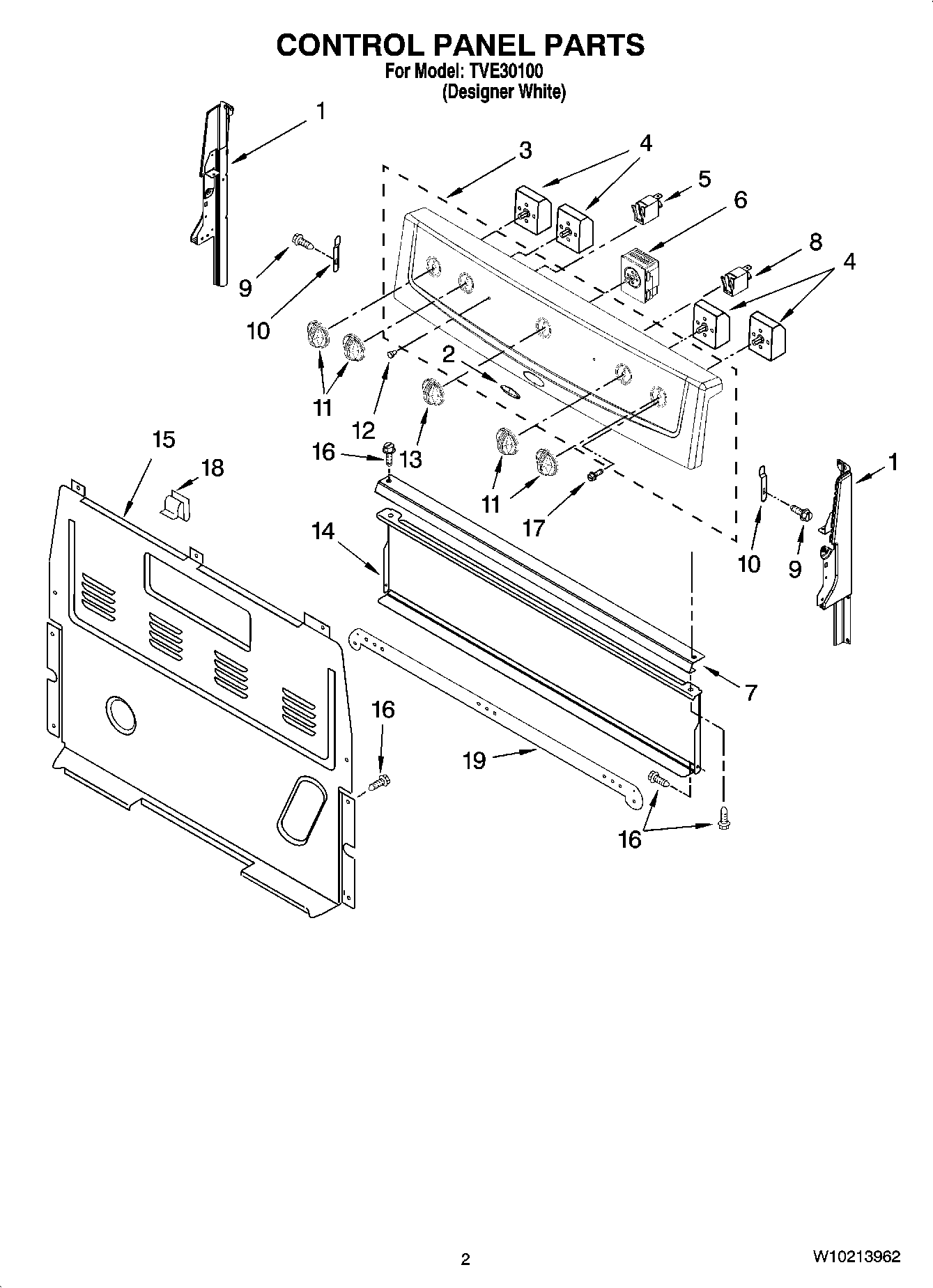

TVE30100 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	Nameplate
3	Panel, Backguard (White)
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP9762215 Whirlpool Oven Switch
7	W10525121 Whirlpool Control Bracket
8	WP8523266 Whirlpool Indicator Light
9	3196166 Whirlpool Screw
10	3196200 Whirlpool Clip
11	WPW10203524 Whirlpool Knob
12	WP3196068 Whirlpool Light Lens
13	Knob, Thermostat (White)
14	Shield, Heat
15	WP8272473 Whirlpool Rear Cover
16	SCREW
17	WP3400882 Whirlpool Screw
18	WP8273564 Whirlpool Clip
19	Guard, Wire
