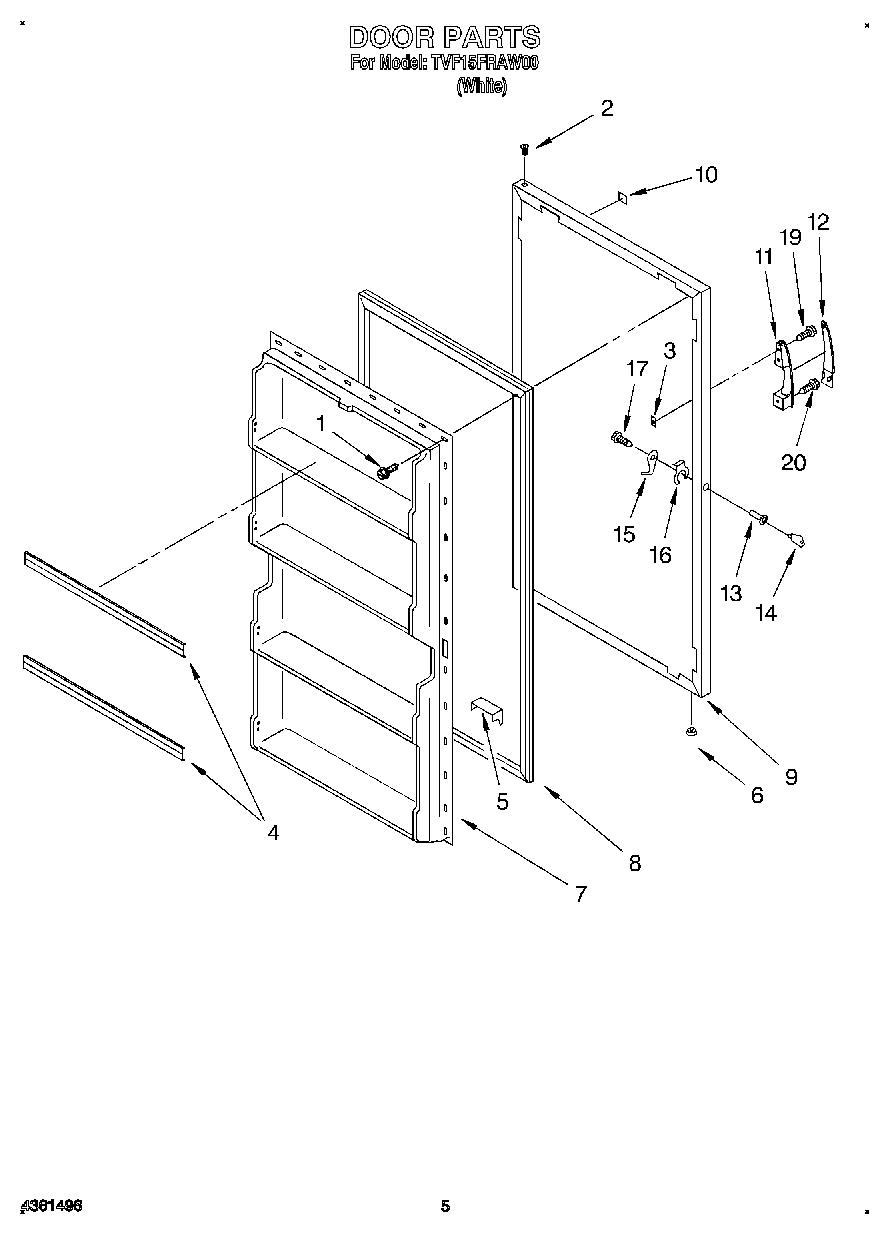

TVF15FRAW00 03 – DOOR

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	Anchor, Screw
4	Door Shelf Trim (4)
5	Foam Block
6	3-24898-007 Whirlpool Refrigerator Vent Plug
7	WP4390870 Whirlpool Refrigerator Panel
8	WP4357099 Whirlpool Refrigerator Door Gasket
9	Exterior Door (White) (Includes Insulation)
10	Nameplate
11	Handle
12	Insert, Handle
13	4357145 Whirlpool Refrigerator Door Lock
14	WP4356840 Whirlpool Refrigerator Door Key
15	3-35284-001 Whirlpool Refrigerator Door Lock
16	Spring Clip
19	Screw, 8-18 x 1-5/8 St. Stl. (4)
20	Screw (Repair)
