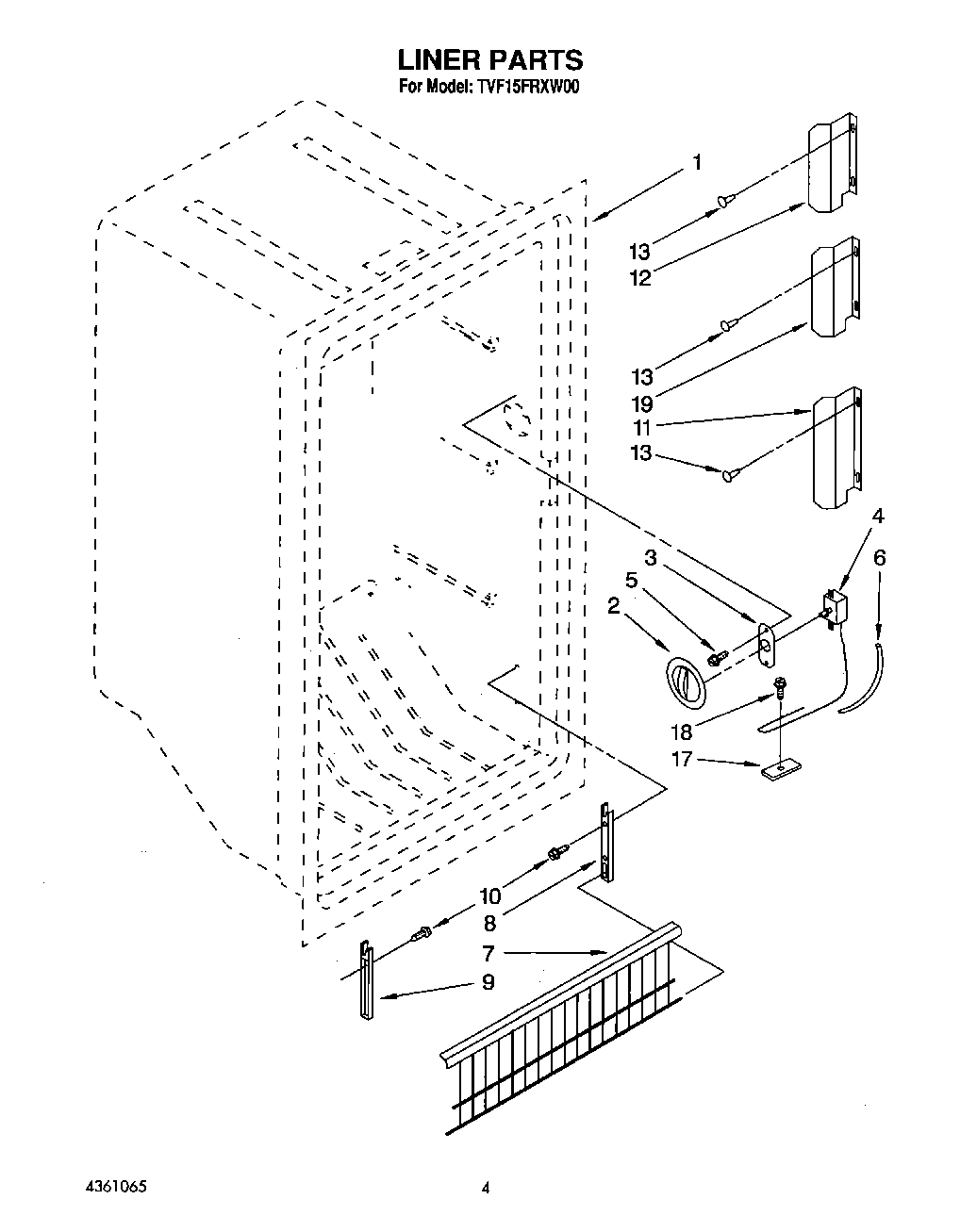

TVF15FRXW00 02 – LINER, LIT/OPTIONAL

TVF15FRXW00 02 – LINER, LIT/OPTIONAL

Written by

in

TVF15FRXW00 02 – LINER, LIT/OPTIONAL

Products

PositionProduct
Use & Care Guide
Parts List
1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Gate
8Support, Fence, (L.H.)
94-80576-202 Whirlpool Refrigerator Gate Support
10Screw
11Tube, Cover Bottom
12Tube, Cover Top
13Rivet, Plastic
171-80308-101 Whirlpool Refrigerator Bulb Clamp
18Control Bulb Screw
19350930 Whirlpool White Spray Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19799344 Whirlpool Refrigerator Paint
19Leveler (Thinner)
19212643 Whirlpool Refrigerator Permagum Sealer
19876370 Whirlpool Refrigerator Insulation
19WP503695 Whirlpool Refrigerator Sealer
19WP505587 Whirlpool Refrigerator Sealer
19TAPE, VINYL (3/4 X 108“)
19Transformer (115-230 Volt)
19Tube, Cover Center
