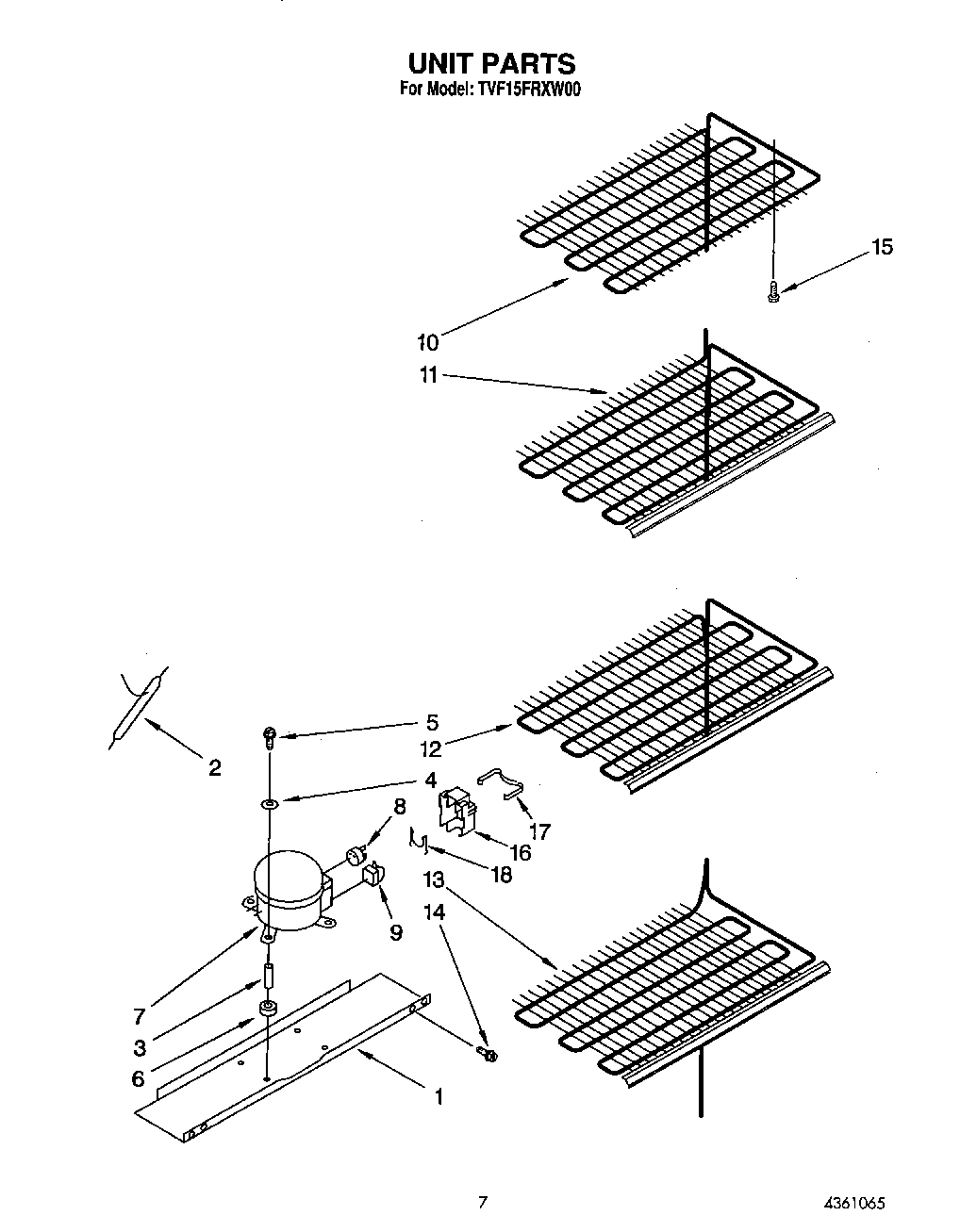

TVF15FRXW00 04 – UNIT

Products

Position	Product
1	Compressor Mounting Pan
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Screw, Compressor Mounting
6	Compressor Grommet
7	Compressor
8	Relay
9	Overload
10	Evaporator Top
11	Evaporator Shelf (One)
12	Evaporator Shelf (Two)
13	Evaporator Shelf (Three)
14	WP3-24838-048 Whirlpool Refrigerator Screw
15	Evaporator, Mounting Screw
16	Cover
17	Clip, Cover
18	Clip, Overload
