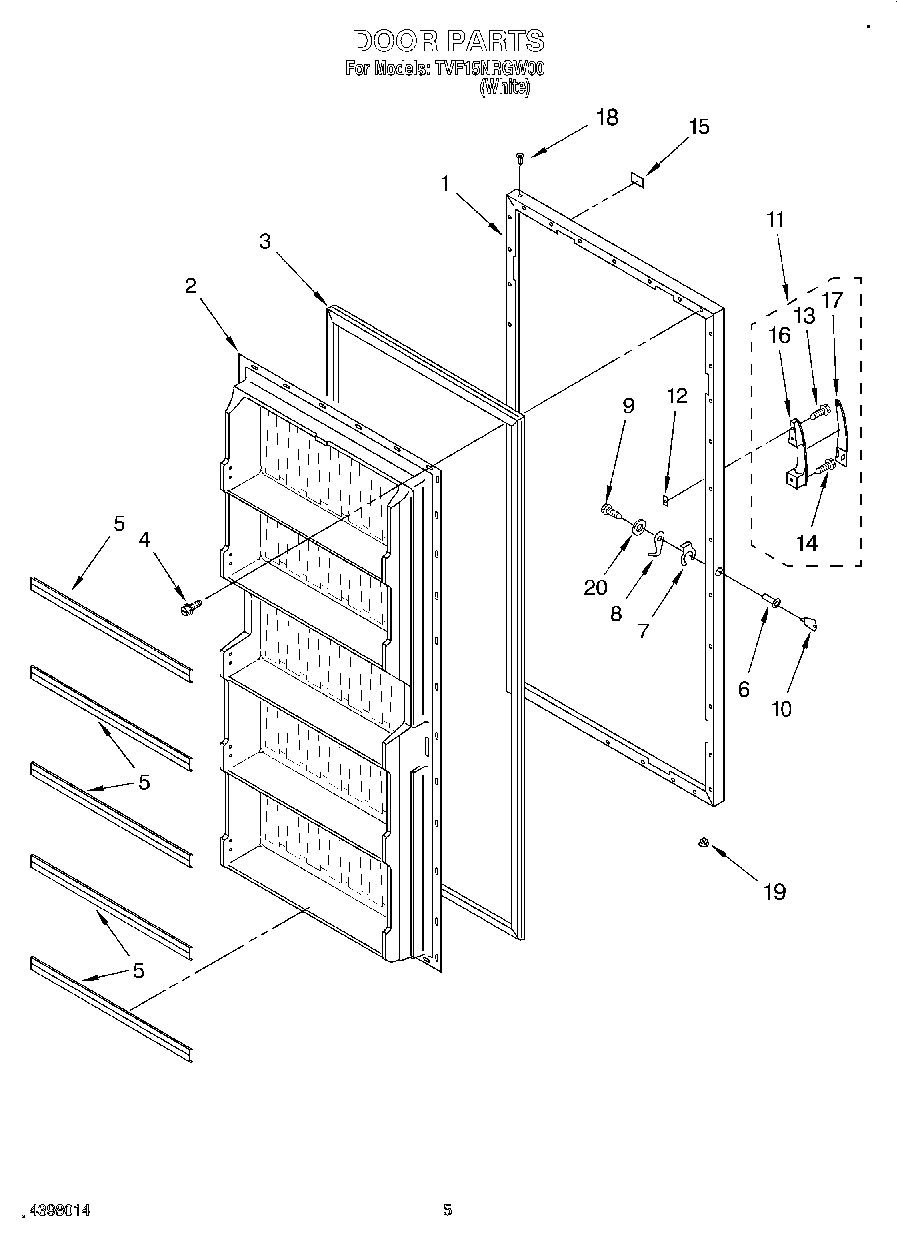

TVF15NRGW00 03 – DOOR

Products

Position	Product
1	Exterior Door (Includes Insulation)
2	WP4390870 Whirlpool Refrigerator Panel
3	WP4357099 Whirlpool Refrigerator Door Gasket
4	WP489478 Whirlpool Refrigerator Screw
5	Door Shelf Trim (4)
6	4357145 Whirlpool Refrigerator Door Lock
7	Spring Clip
8	3-35284-001 Whirlpool Refrigerator Door Lock
10	WP4356840 Whirlpool Refrigerator Door Key
12	Anchor, Screw
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Screw
15	Nameplate
16	Handle
17	Handle Kit (White)
18	4390731 Whirlpool Refrigerator Hinge Bushing
19	3-24898-007 Whirlpool Refrigerator Vent Plug
20	Washer
