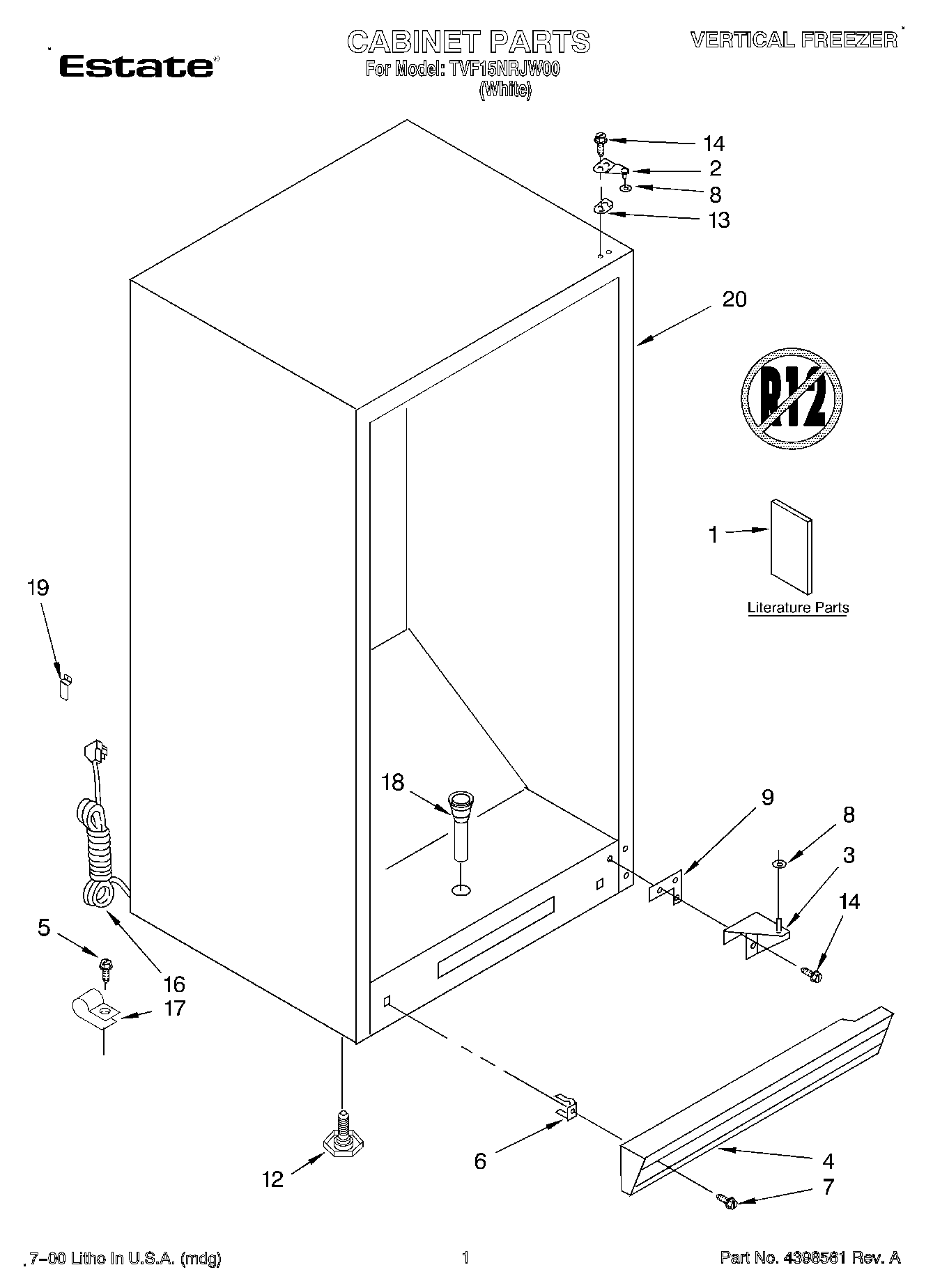

TVF15NRJW00 01 – CABINET, LIT/OPTIONAL

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Energy Label)
2	Top, Hinge
3	Bottom Hinge
4	WP4-60461-005 Whirlpool Refrigerator Grille
6	1-80247-101 Whirlpool Refrigerator Clip
7	Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
12	W11117769 Whirlpool Refrigerator Leveler
13	4390489 Whirlpool Refrigerator Shim
14	WP8204624 Whirlpool Bolt
16	Power Cord
17	3-25095-011 Whirlpool Tube Clamp
18	Drain Hose
19	Clip
20	350930 Whirlpool White Spray Paint
20	350956 Whirlpool Spray Assembly
20	72017 Whirlpool Appliance Touch-Up Paint White
20	799344 Whirlpool Refrigerator Paint
20	WP72107 Whirlpool Touchup
20	Almond (Uncut)
20	212643 Whirlpool Refrigerator Permagum Sealer
20	876370 Whirlpool Refrigerator Insulation
20	WP503695 Whirlpool Refrigerator Sealer
20	WP505587 Whirlpool Refrigerator Sealer
20	TAPE, VINYL (3/4 X 108“)
20	Cabinet (Not A Serviceable Part)
