TWX233RBD1 05 – CONSOLE AND CONTROLS – Aparts

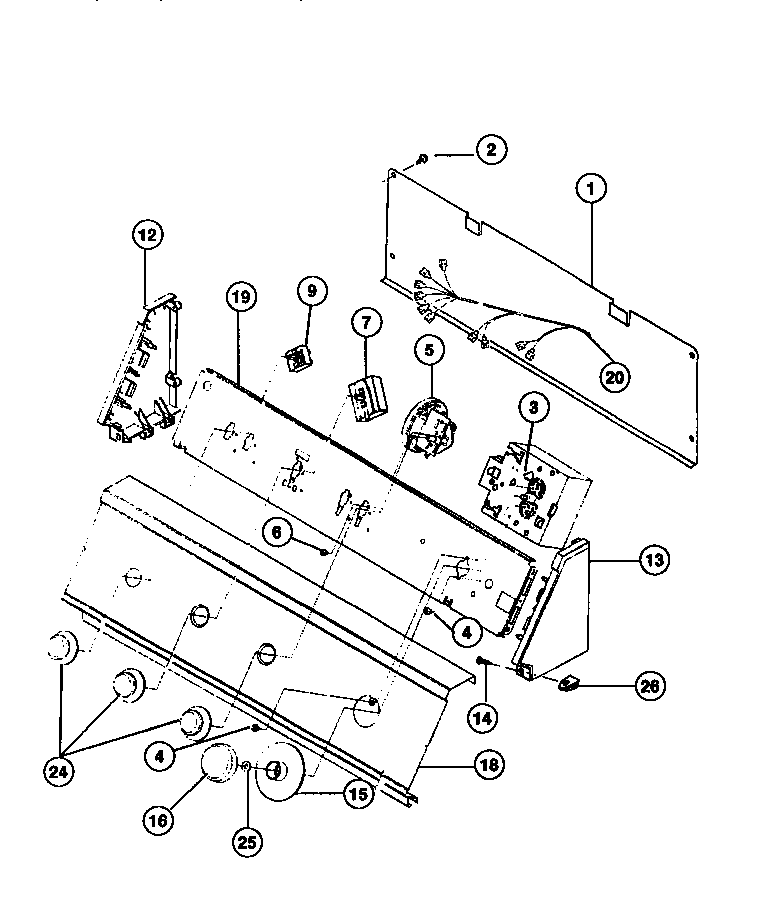

TWX233RBD1 05 – CONSOLE AND CONTROLS

Products

Position	Product
*46282	SWITCH-MOTOR
*46280	131243800 Frigidaire Screw
*46281	SCREW
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 131237800
4	SCREW (2)
5	WCI 131047500
6	131168200 Frigidaire Dryer Screw
9	WCI 131047000
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131030500
16	WCI 131030400
18	WCI 131262600
19	WCI 131297306
20	WCI 131165600
24	WCI 131032500
25	Spacer,washer ,timer shaft
26	CLIP-CONSOLE MTG
