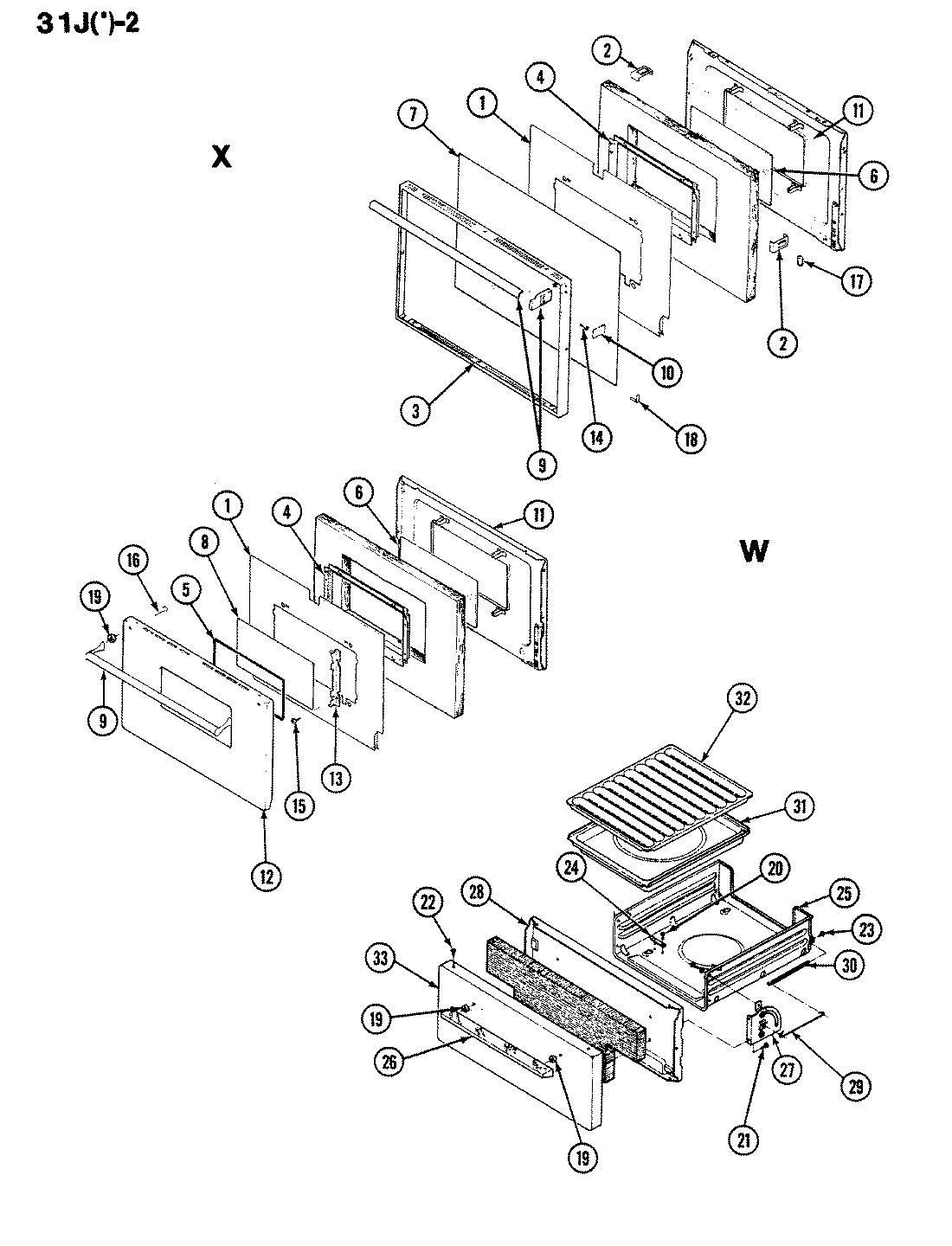

| 1 | MAY 3601F094-51 |
| 4 | MAY 3603F013-80 |
| 5 | MAY 7201P017-60 |
| 6 | MAY 7902P035-60 |
| 8 | MAY 7902P051-60 |
| 11 | MAY 2402W154-19 |
| 11 | MAY 2402W091-23 |
| 12 | MAY 2401F051-81 |
| 13 | MAY 3804F094-51 |
| 16 | MAY 7101P080-60 |
| 16 | 74002481 Whirlpool Screw |
| 17 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 18 | MAY 8010P045-60 |
| 19 | MAY 8010P002-60 |
| 19 | MAY 3420A033-34 |
| 19 | MAY 7803P002-60 |
| 20 | MAY 7101P076-60 |
| 22 | MAY 7101P058-60 |
| 23 | MAY 7101P061-60 |
| 24 | MAY 8002P001-60 |
| 25 | MAY 3407W009-23 |
| 25 | MAY 3407W009-19 |
| 25 | MAY 7101P114-60 |
| 26 | MAY 7701P047-60 |
| 26 | MAY 7701P030-60 |
| 26 | MAY 7701P012-60 |
| 27 | MAY 3418A062-34 |
| 27 | MAY 3418A063-34 |
| 28 | MAY 2404F021-23 |
| 29 | MAY 7807P001-60 |
| 30 | MAY 7803P014-60 |
| 31 | MAY 3401F004-23 |
| 32 | MAY 3413F002-23 |
| 33 | MAY 2416F025-71 |
