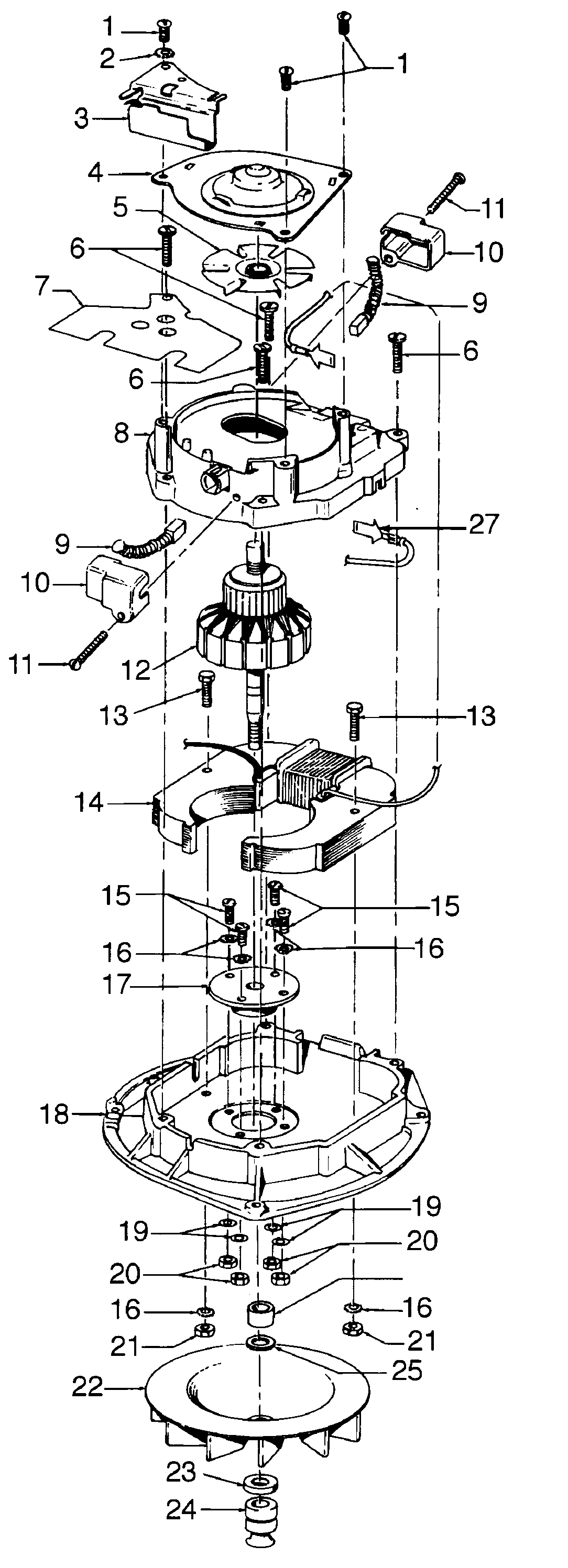

U4127— 05 – MOTOR ASSEMBLY
Written by
in
U4127— 05 – MOTOR ASSEMBLY
Products
Position
Product
1
MAY 45533AY
3
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4
MAY 42934002
5
MAY 38755004
6
MAY 161535–
7
MAY 164684–
7
MAY 045517–
8
MAY 019857–
9
MAY 47318012
10
MAY 36315003
11
MAY 046930AZ
12
MAY 44765085
13
MAY 045118–
14
MAY 45412014
14
MAY 45412015
15
MAY 21772501
16
MAY 014062-
17
MAY 019829–
18
MAY 42193006
19
MAY 019772-
20
MAY 045251–
21
MAY 015673–
22
MAY 38755011
23
MAY 31162004
24
MAY 38532009
25
MAY 169241AW
26
MAY 163059–
27
MAY 43574133
27
MAY 014320–
27
MAY 43574161
27
MAY 43574140
27
MAY 43574045
28
MAY 27725506
28
MAY 27317307
28
MAY 36912004
28
MAY 27313101
28
MAY 40300014
28
MAY 017001–
28
MAY 017016–
←
DGGF3042KFP 02 – BACKGUARD
U41EA-3GLW 03 – DOOR/DRAWER
→
