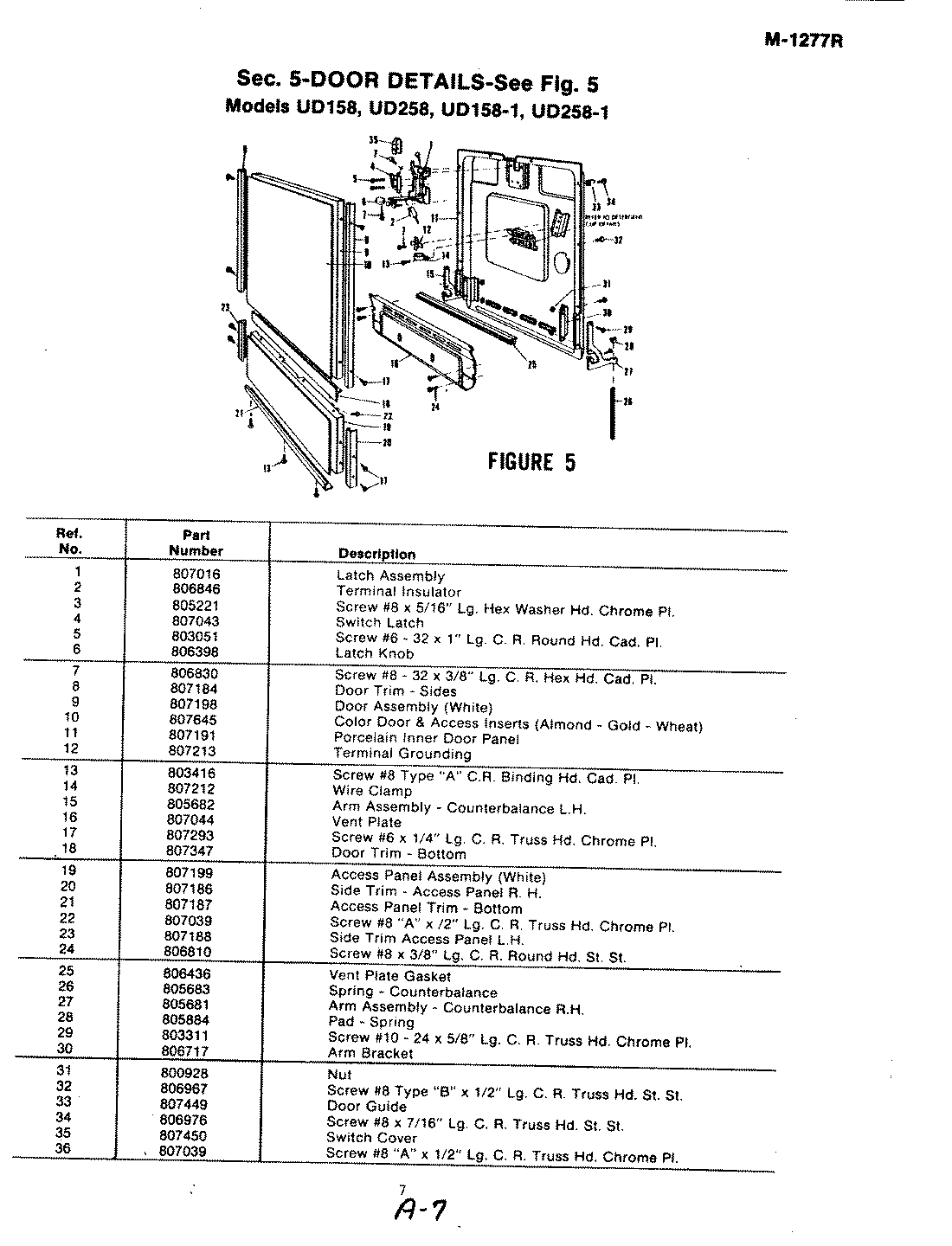

UD158 03 – DOOR DETAILS – Aparts

UD158 03 – DOOR DETAILS

Products

Position	Product
NI	MAY 807039
1	LATCH ASM
2	INSULATOR
3	MAY 805221
4	MAY 807043
5	MAY 803051--
6	MAY 806398
7	SCREW
8	MAY 807184
9	MAY 807198
10	INSERT, DOOR PANEL
11	INNER PANEL
12	GROUND TERMINAL
13	SCREW
14	MAY 807212
15	LH ARM
16	MAY 807044
17	MAY 807293
18	DOOR TRIM
19	MAY 807199
20	MAY 807186
21	MAY 807187
23	MAY 807088
24	SCREW
25	MAY 806436
26	DOOR SPRING
27	RH ARM
28	SPRING PAD
29	MAY 803311
30	ARM BRACKET
31	MAY 800928
32	SCREW
33	DOOR GUIDE
34	MAY 806976
35	SWITCH COVER
